Technology leader with innovative, environment friendly solutions

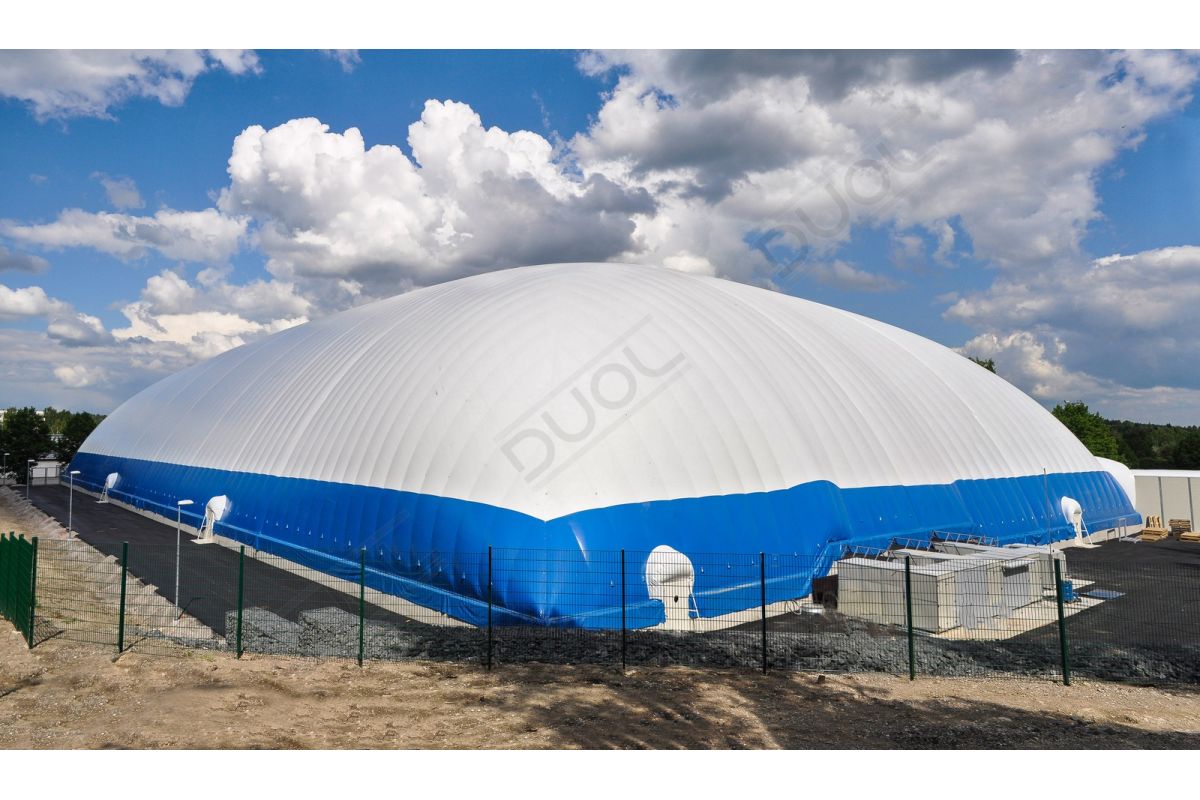

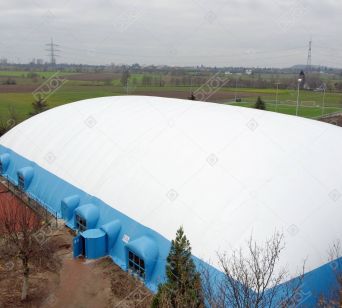

DUOL DMS™ (Double membrane system) is the most advanced double membrane system available. It offers improved thermal insulation and mechanical resistance. Thanks to excellent insulation there is no condensation inside the air dome. The DMS
TM membrane is coated with a special lacquering finish like Polyvinylidene fluoride (PVDF-II) or Titanium dioxide (TiO 2) which increases the material’s quality and lifespan and is self-cleaning.
UV, chemical and weather resistant fabrics
Self-cleaning, fungus and mildew resistance
High Tensile and tear strength
Environmentally friendly, 100% Recyclable
Solutions with different thermal transmittance are available, from 3,05 W/m²K to less than 1 W/m²K: DUOL DMS
TM DUOL DMS Plus
TM DUOL DMS Thermo
TM DUOL 2x2
TM DF Ultra Insulation
DMS and DMS Plus
TM (DUOL double membrane system) is a unique system of double membranes with the strongest structural dimensional stability and excellent thermal insulation. With DMS Plus TM thermal insulation is further upgraded thanks to a larger double membrane insulation distance.
TM is the next generation of DMS TM, eliminating thermal loss through thermal bridges. This special welding system is reflected by a higher insulation quality with U value of 1,2 W/m²K.
TM is the most advanced double membrane system with two parallel double membranes and a space between them without any contact between the membranes. Thanks to this design the thermal insulation is much improved, resulting in a U value of 0,9 W/m²K.
DF Ultra Insulation
DF Ultra Insulation offers best thermal insulation. It consists of an impressive 37-multilayer, nano-coated insulation material placed between the membranes.

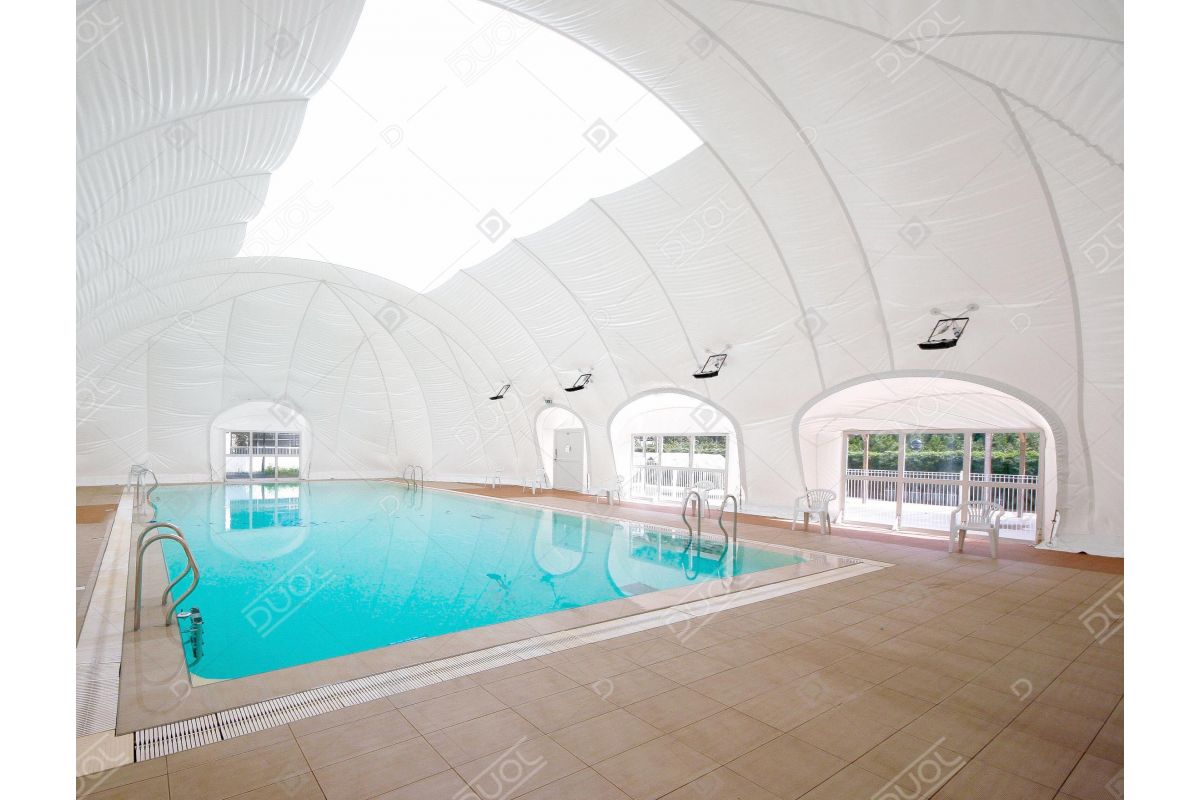

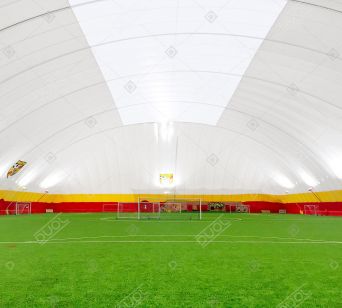

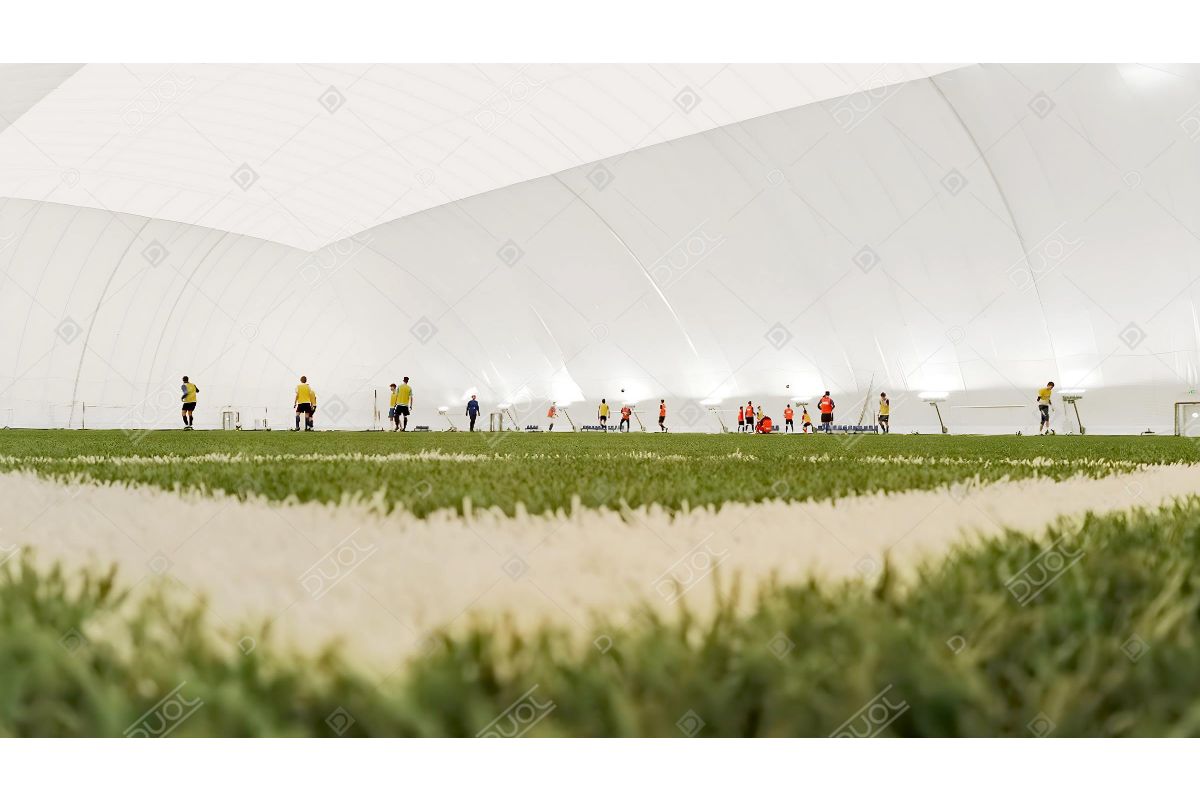

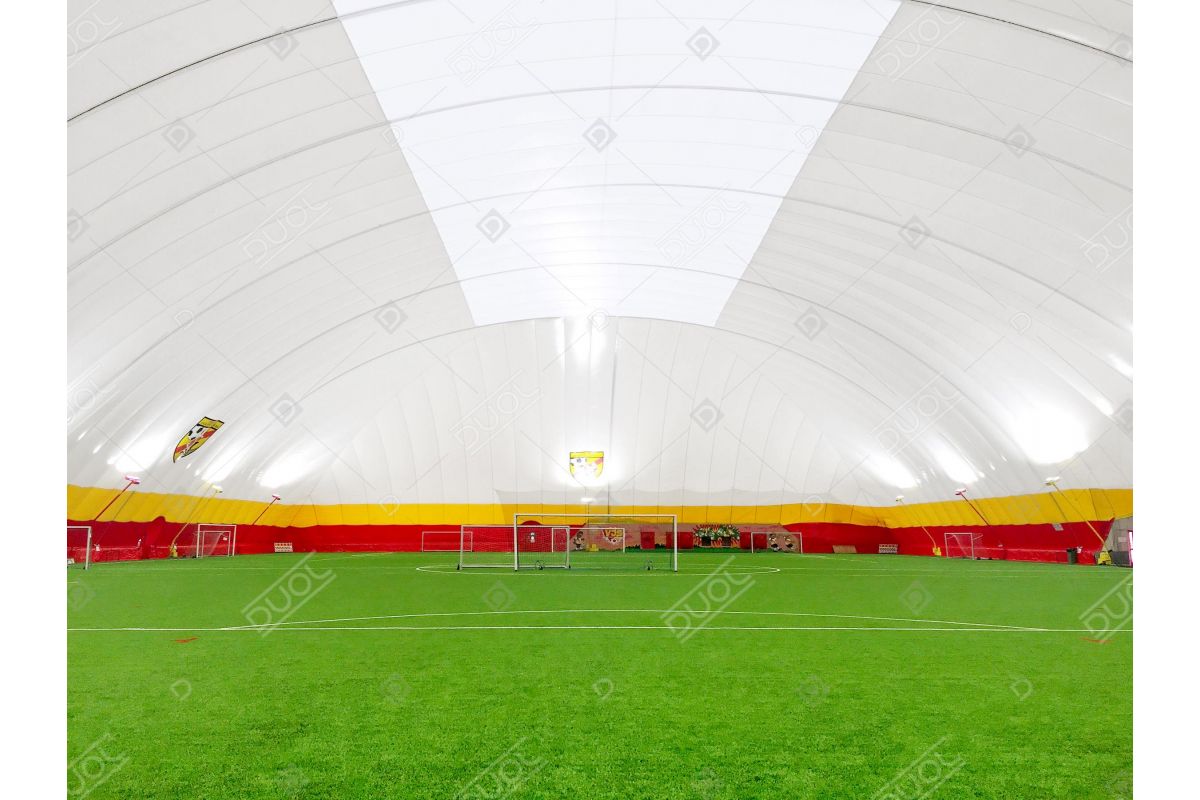

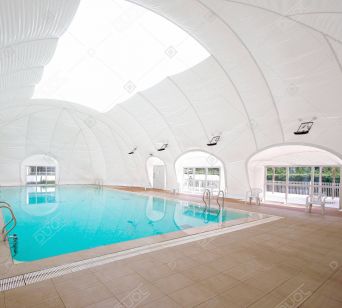

DUOL Transparent membrane has an impressive 64% light transmittance and offers a pleasant indoor ambiance.

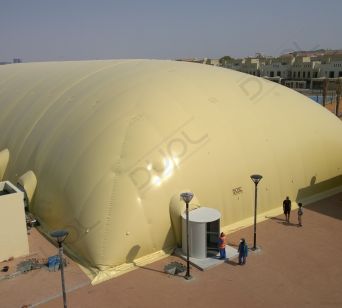

Opaque membrane is a type of membrane that is mainly designed for extremely hot regions where sun protection is vital. It ensures that AC works with maximum efficiency. The membrane withstands heat up to 70 degrees Celsius. The membrane comes in all colours, especially the beige which is the best colour against dust.

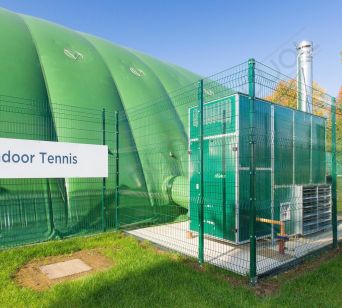

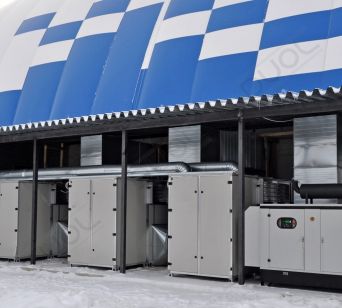

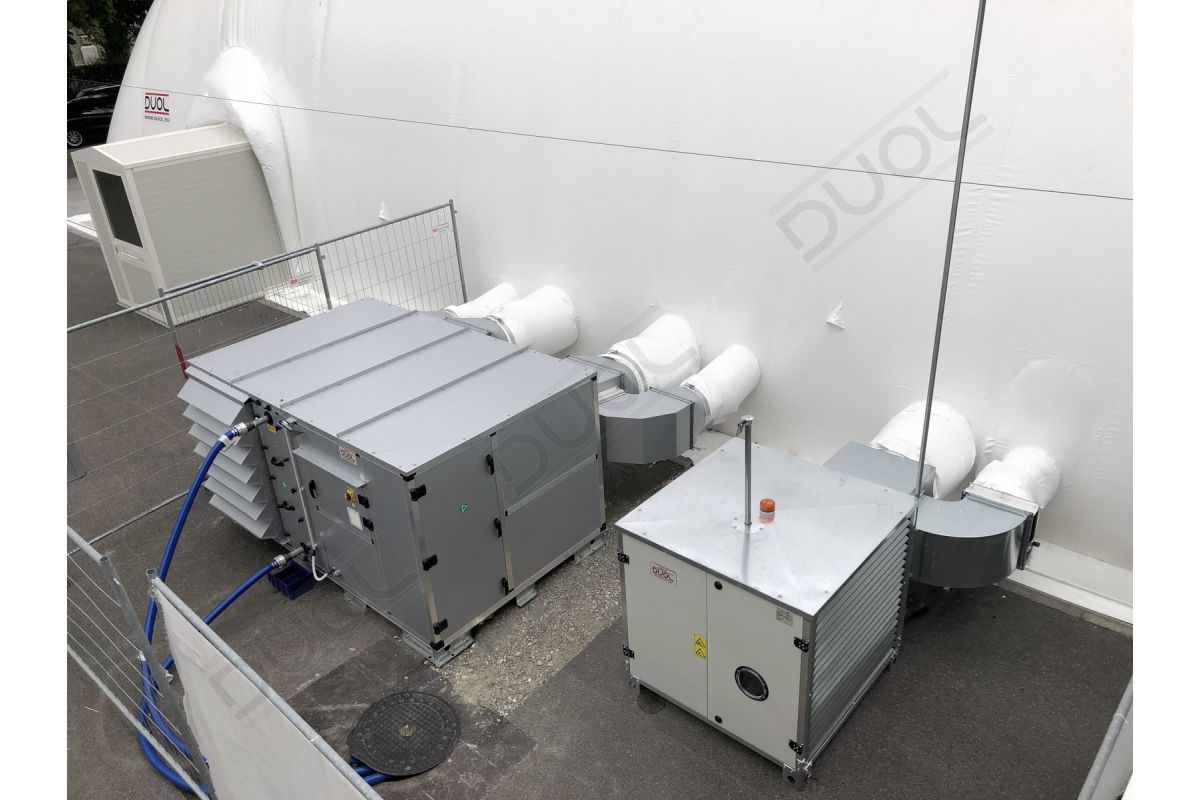

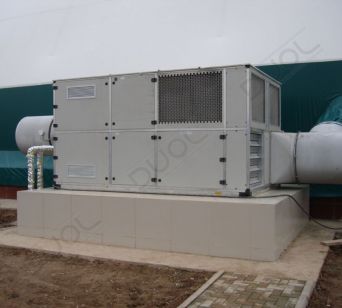

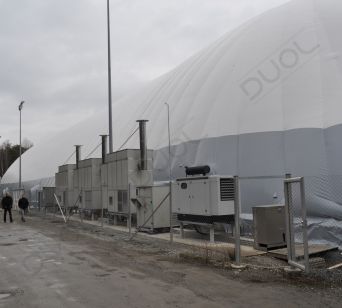

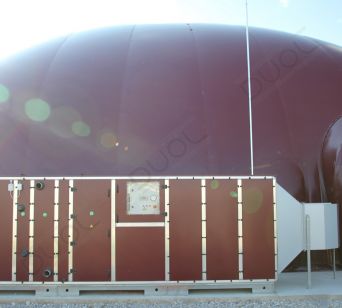

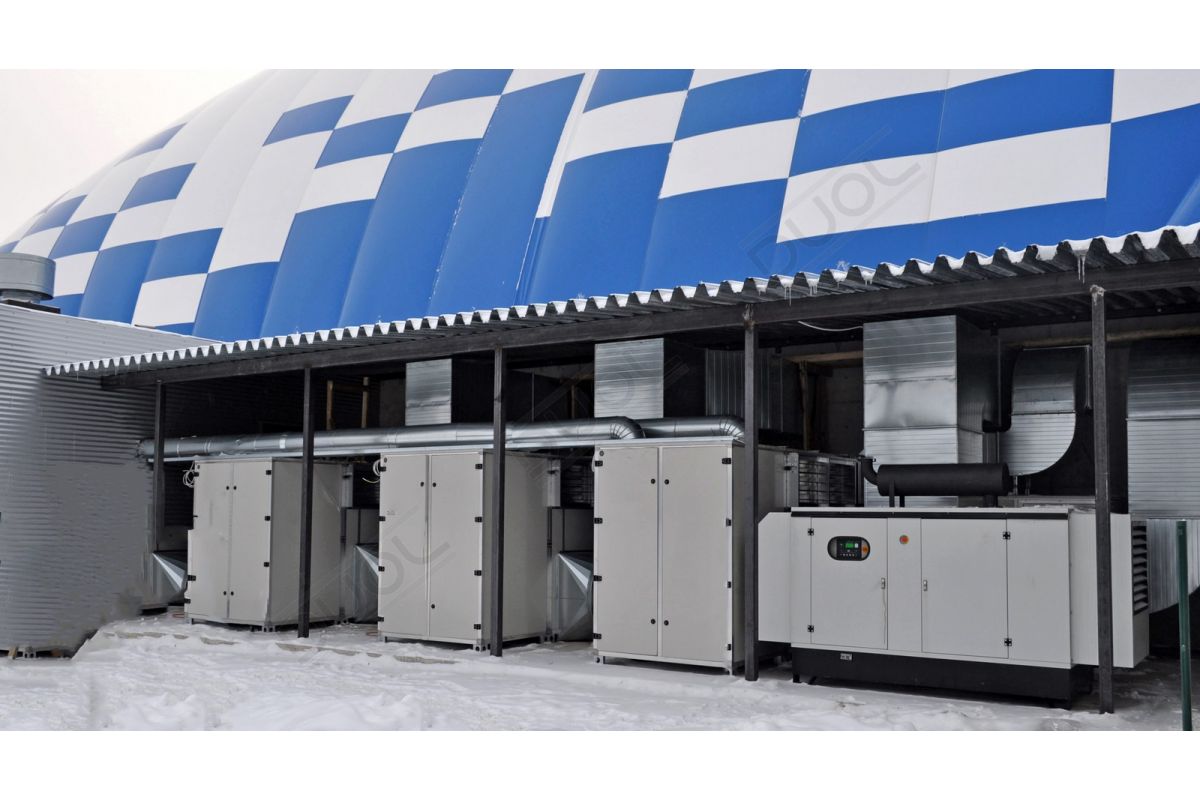

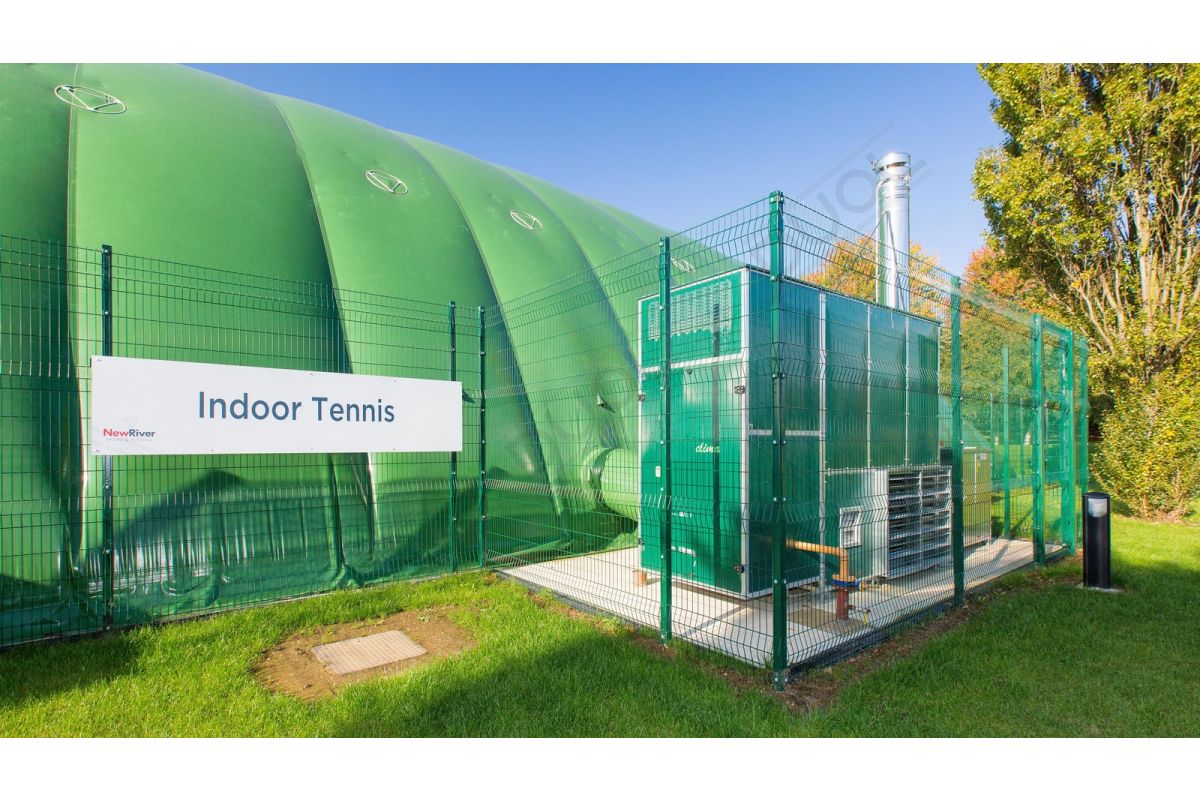

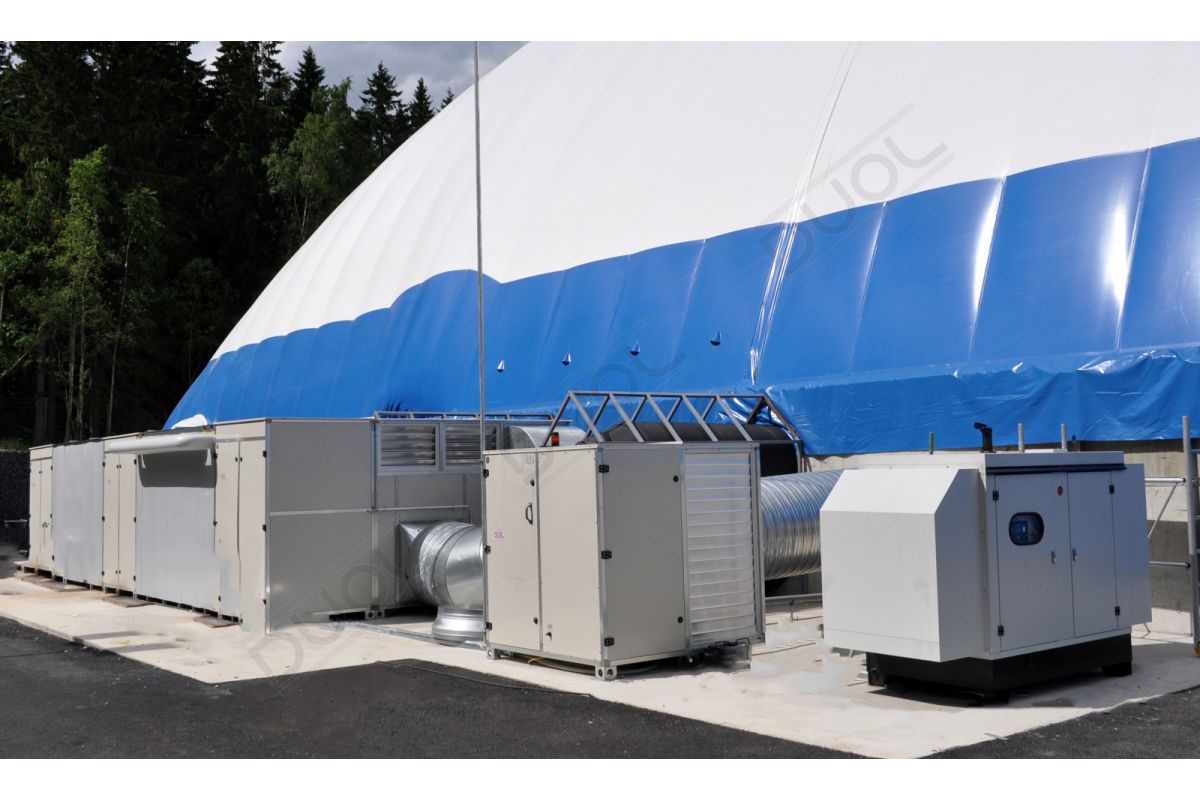

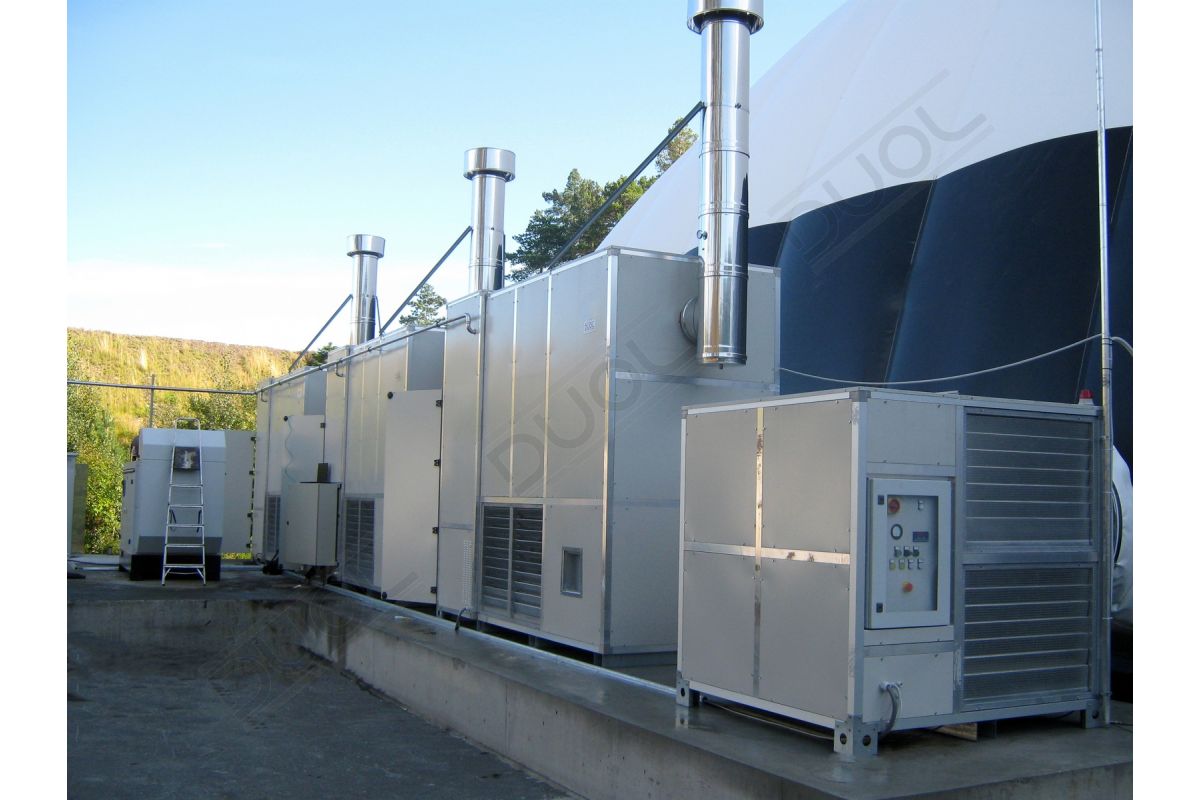

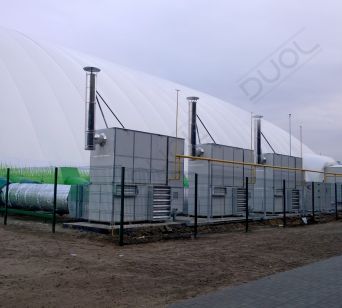

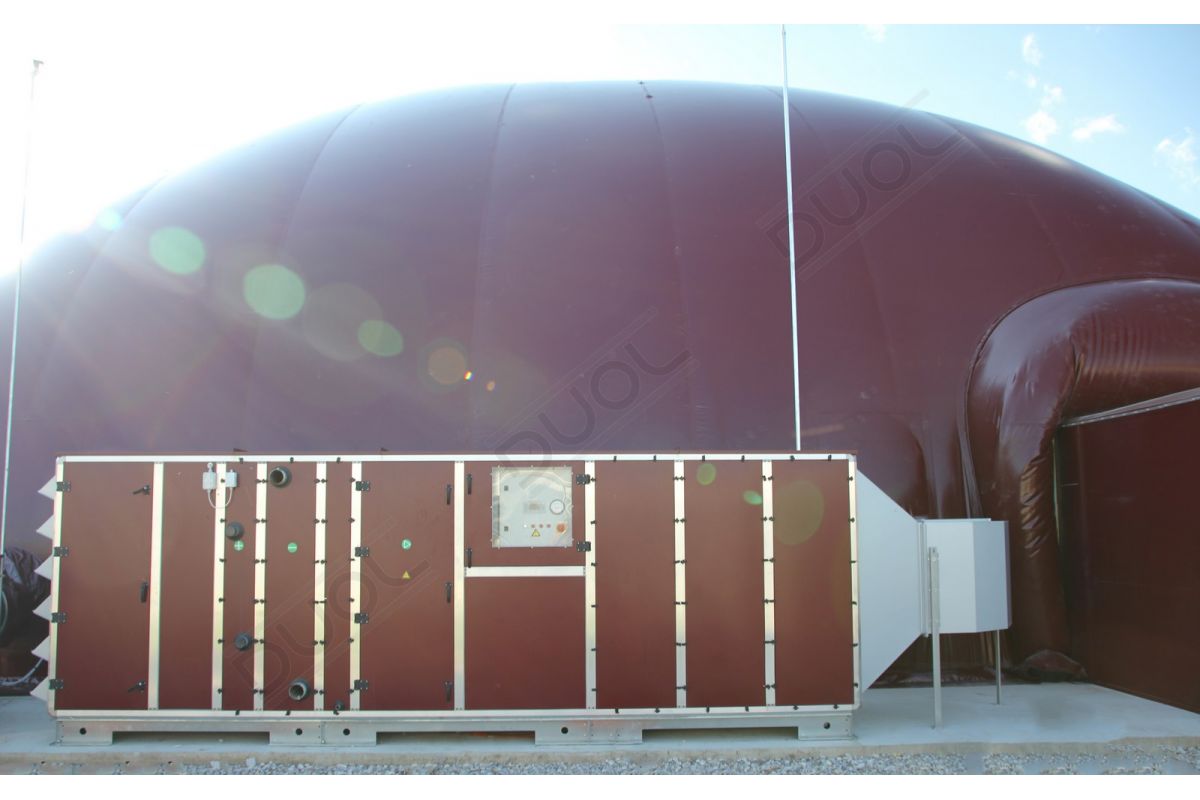

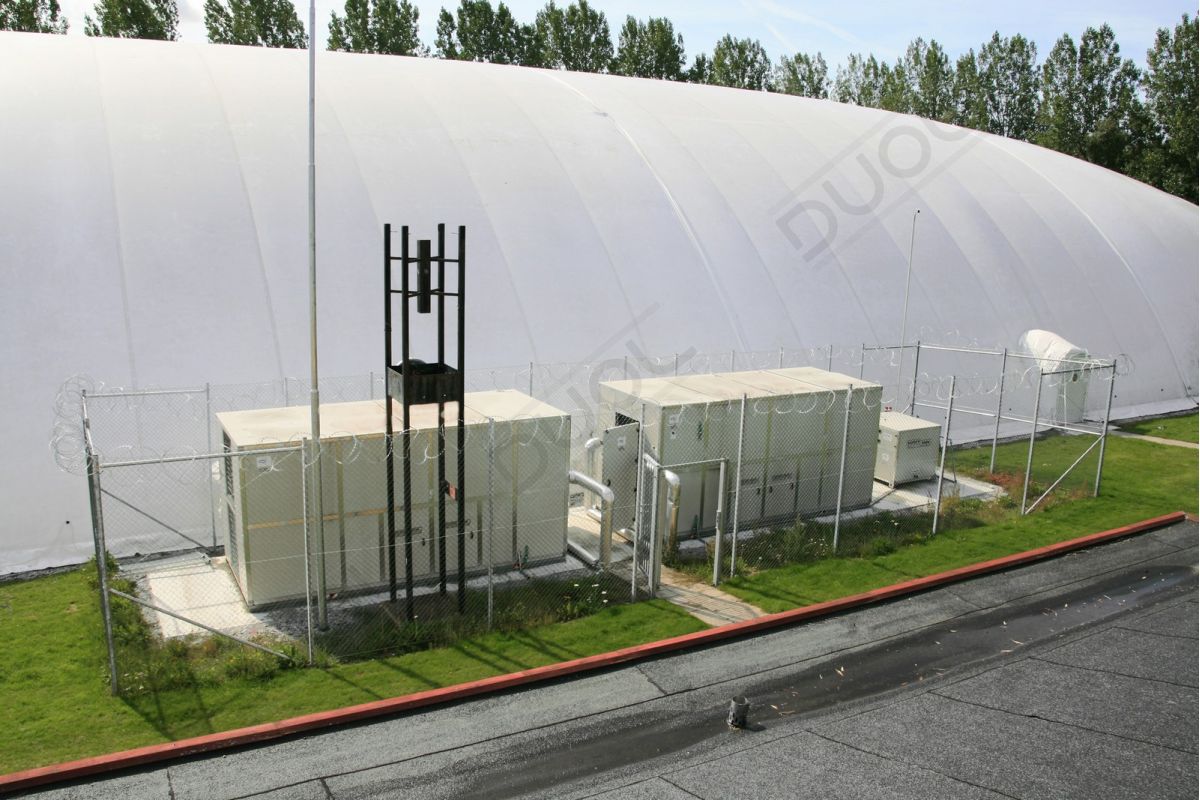

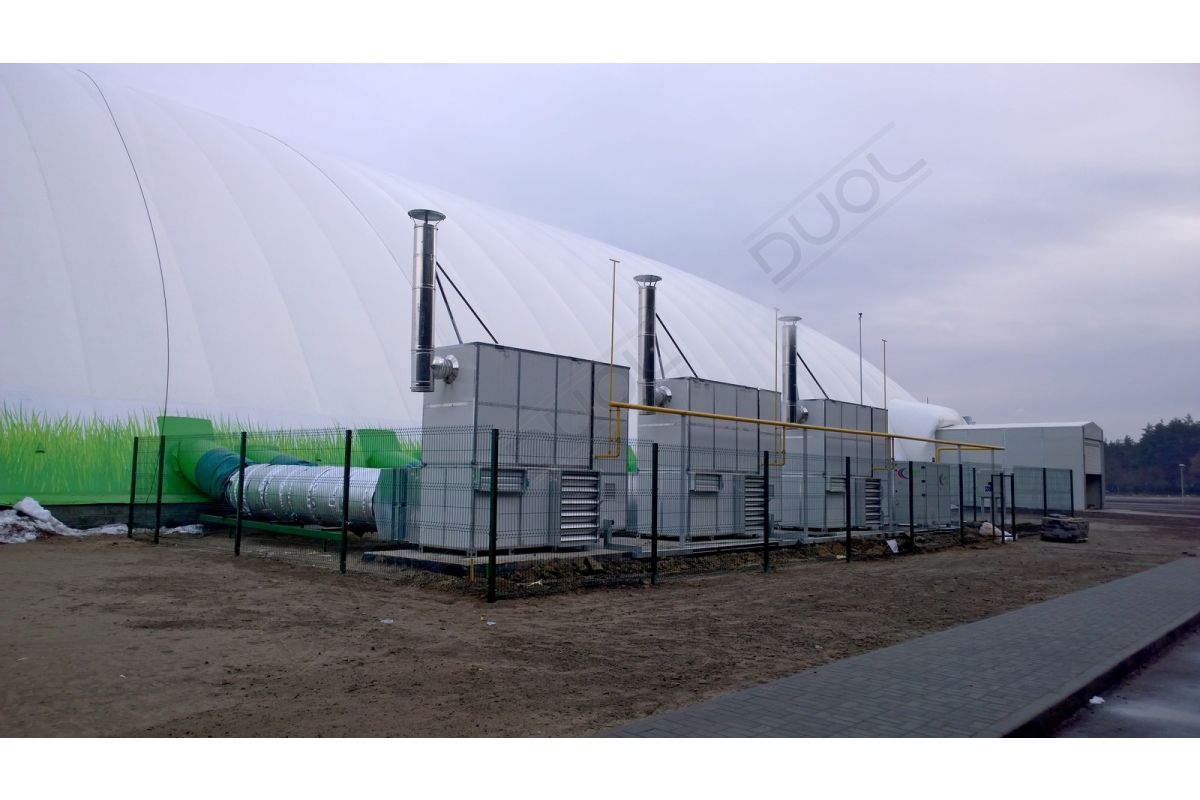

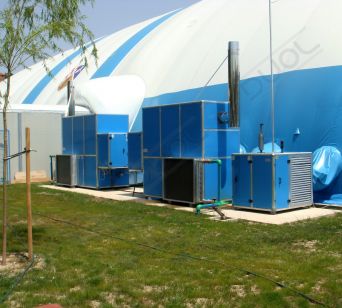

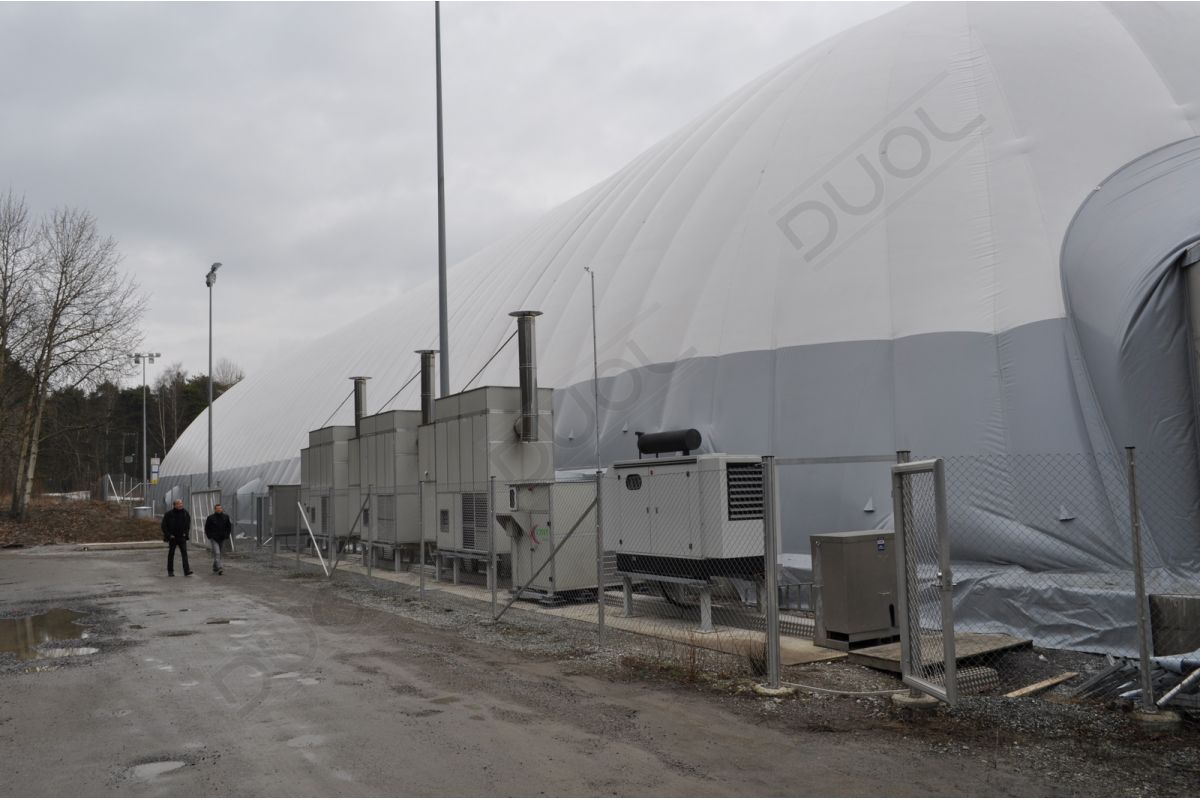

DUOL Ventilation/Heating System is pre-engineered for stability. Furthermore, it provides the desired climate conditions inside the dome. The system is completely automatically-controlled.
Variable Pressure Control – frequency converter reducing overall energy costs
DFS – Double Fan System; modular fan operation, increased reliability
Improved modulating system (saving up to 35%)
High-efficiency heat exchanger
High efficiency condensing units (up to 105% efficiency)
Automatic programmable control (wind, snow and pressure sensors)
Silent operation - a radial fan of low noise, silencers
Heating options: natural gas, LPG, oil, hot water or steam, electricity, heat pump, biomass, combined source.

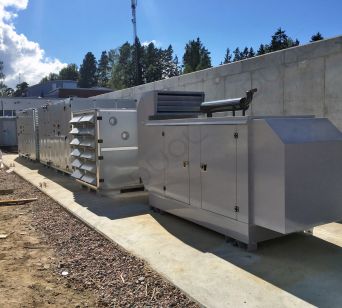

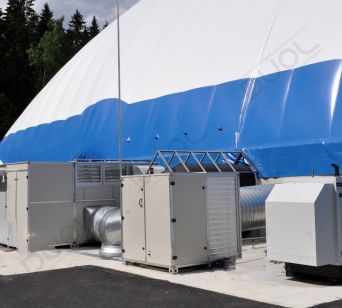

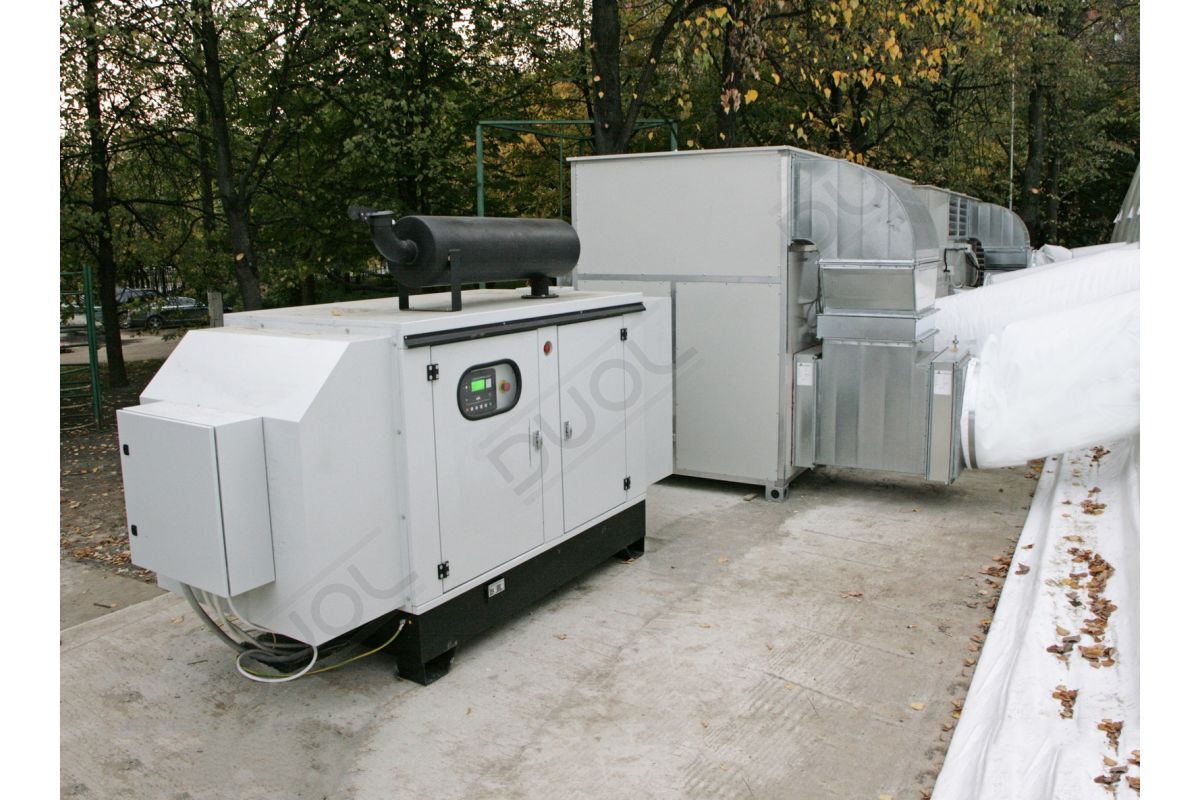

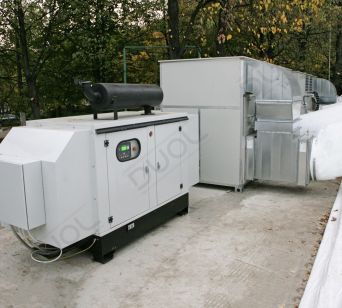

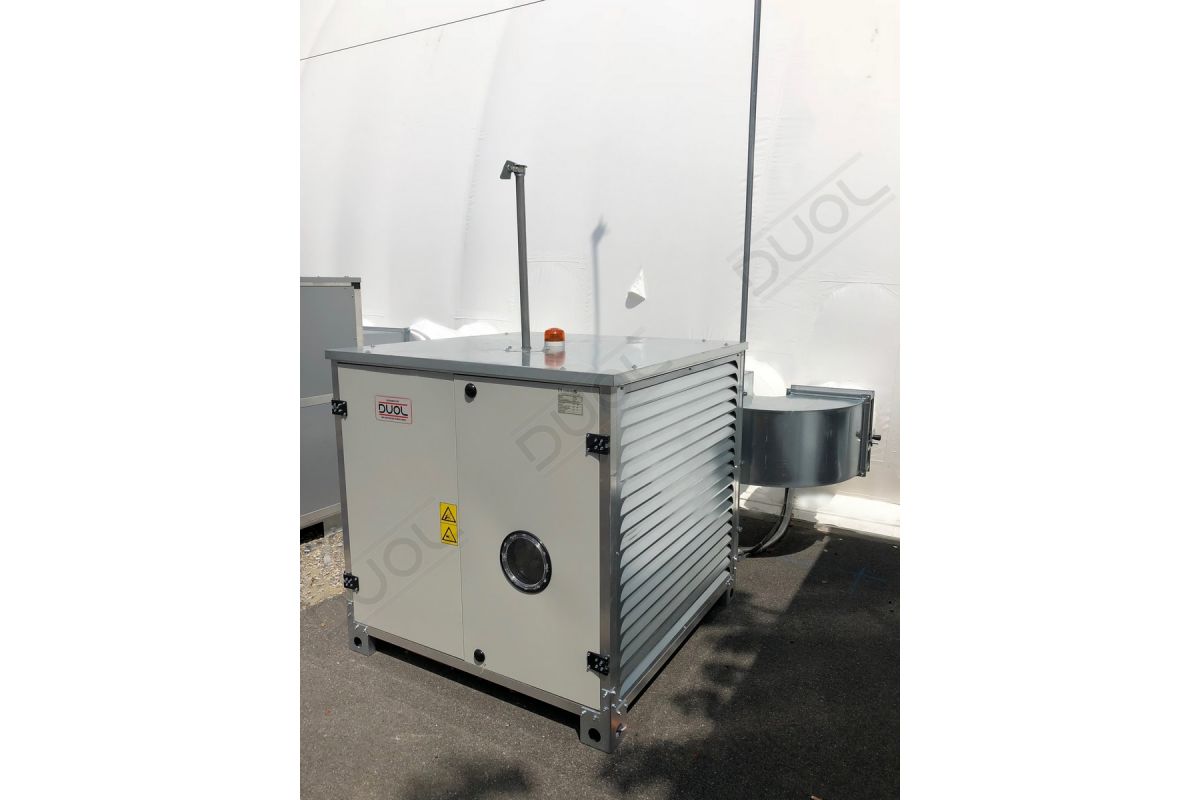

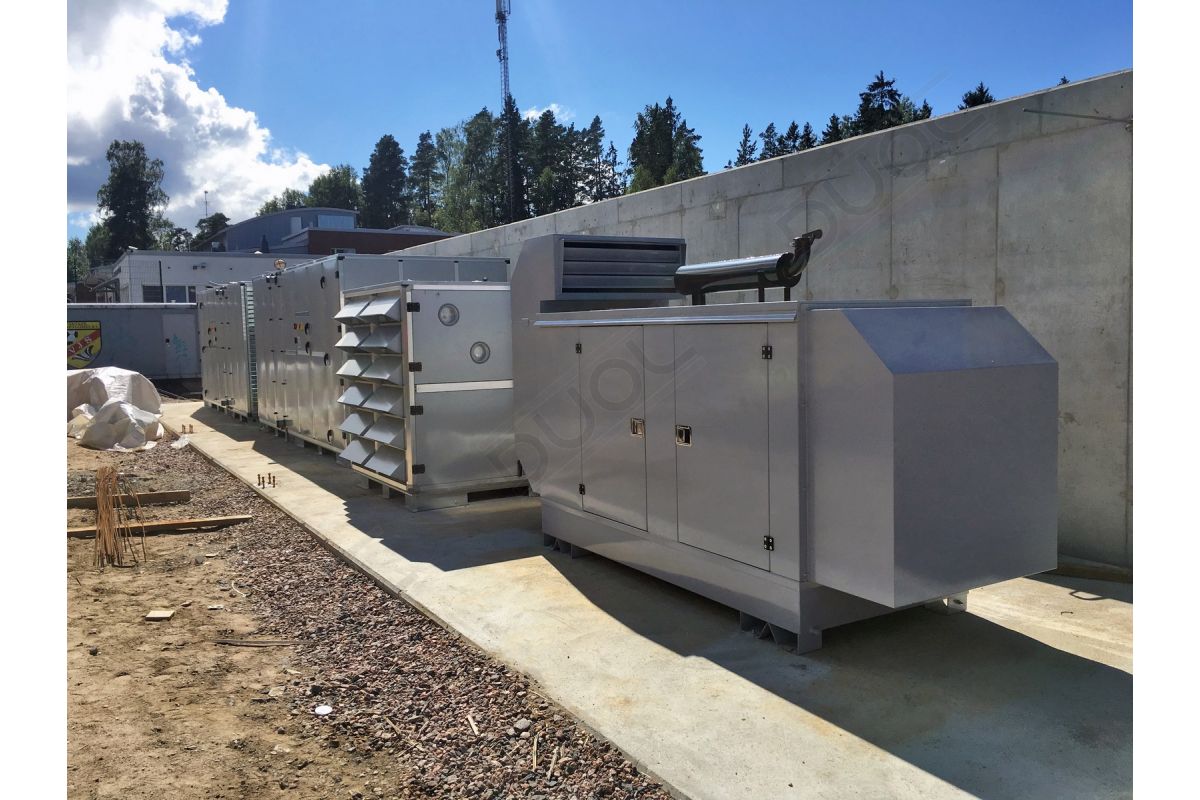

Reliability and safety are the most important features of DUOL air domes and the constant power supply is a critical item that must not be left to chance.
Auto start function and automatic shutdown
12-24 h autonomy, which can be extended up to 100h
Equipped with tested and reliable engines of well-known manufacturers (Iveco, Cummins, Perkins, Volvo ...) and alternators (Mecc Alte ...), which have a service network practically all over the world

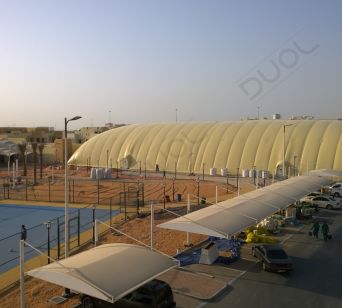

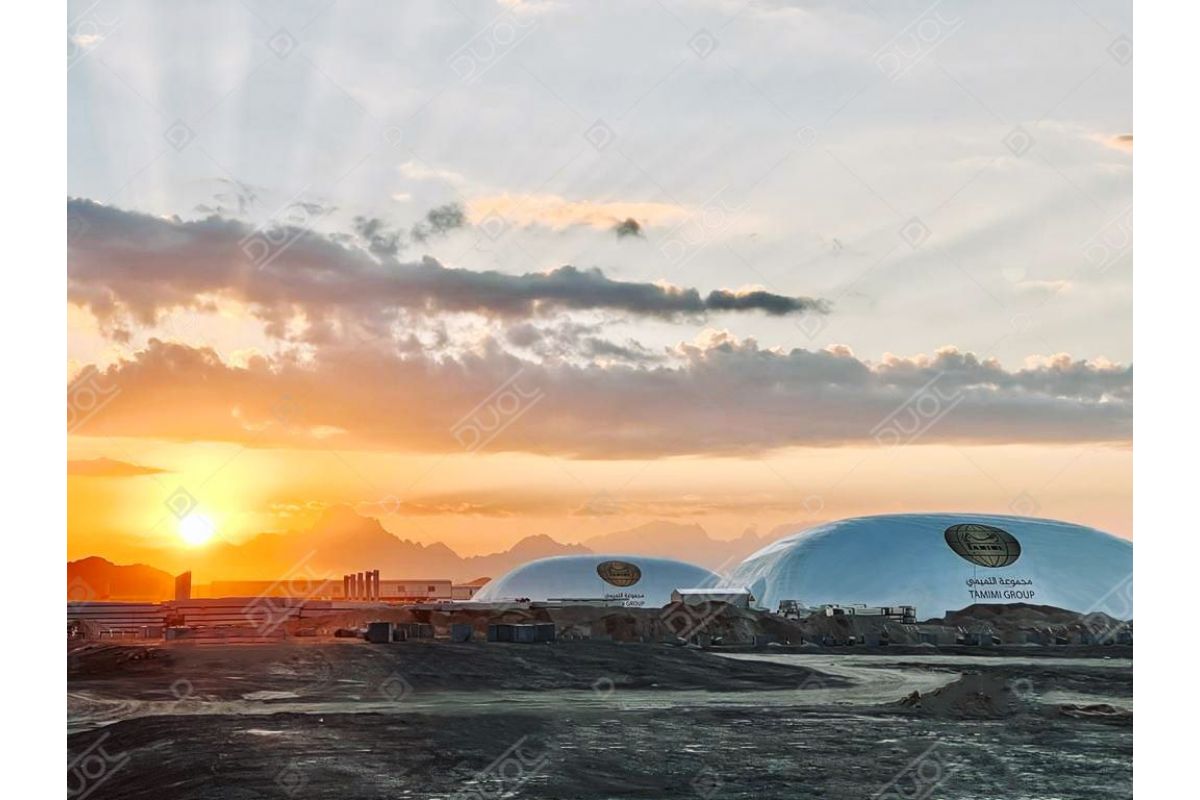

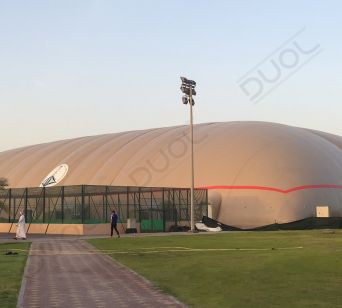

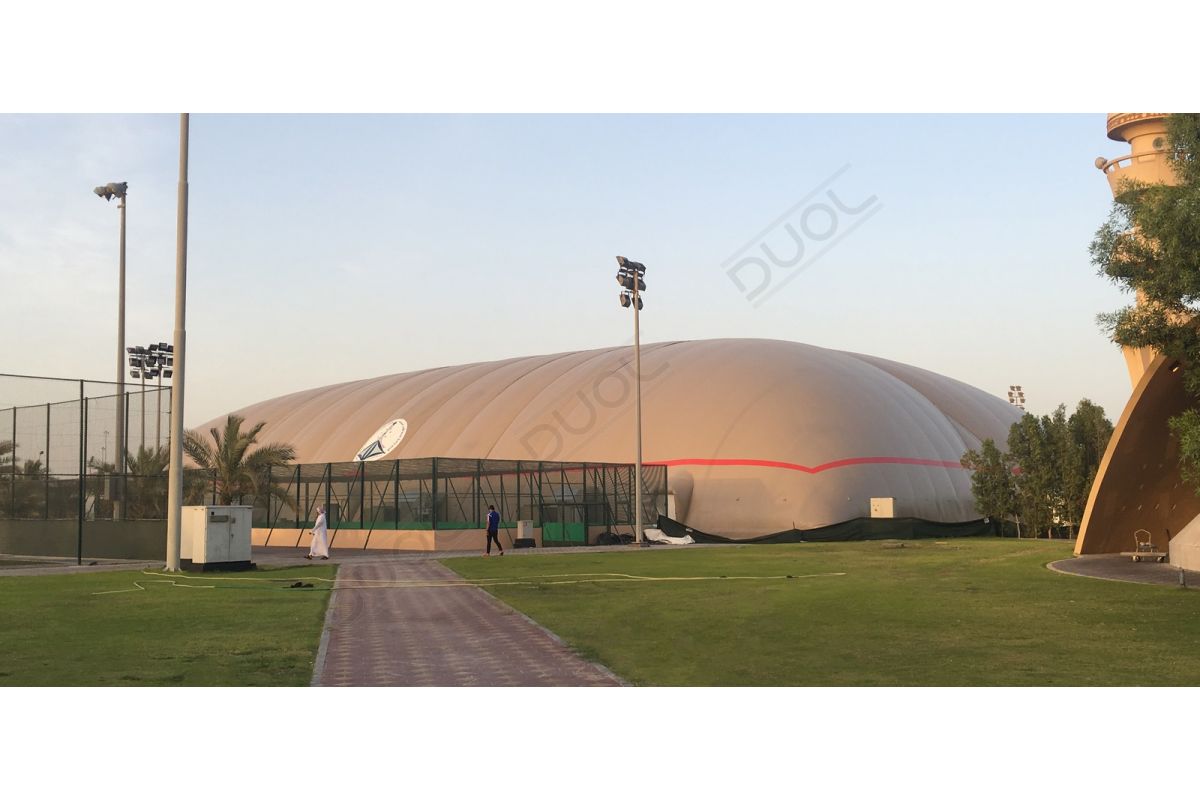

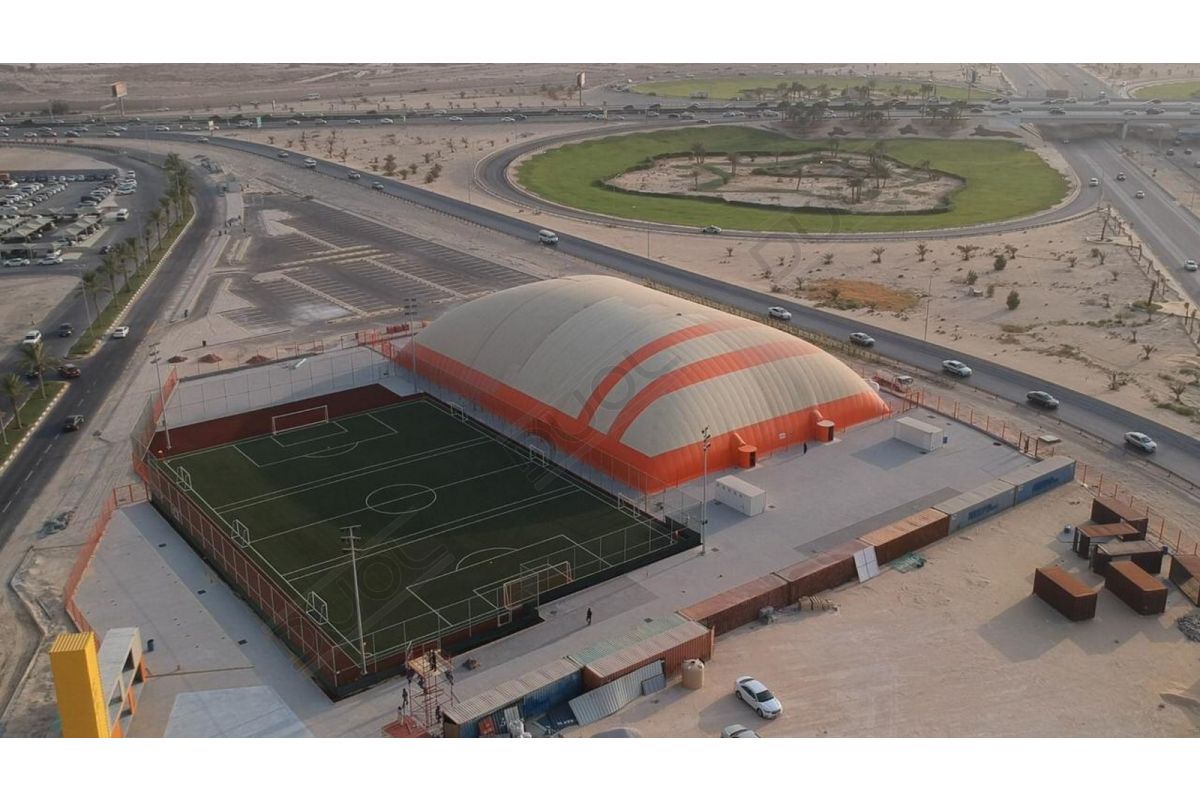

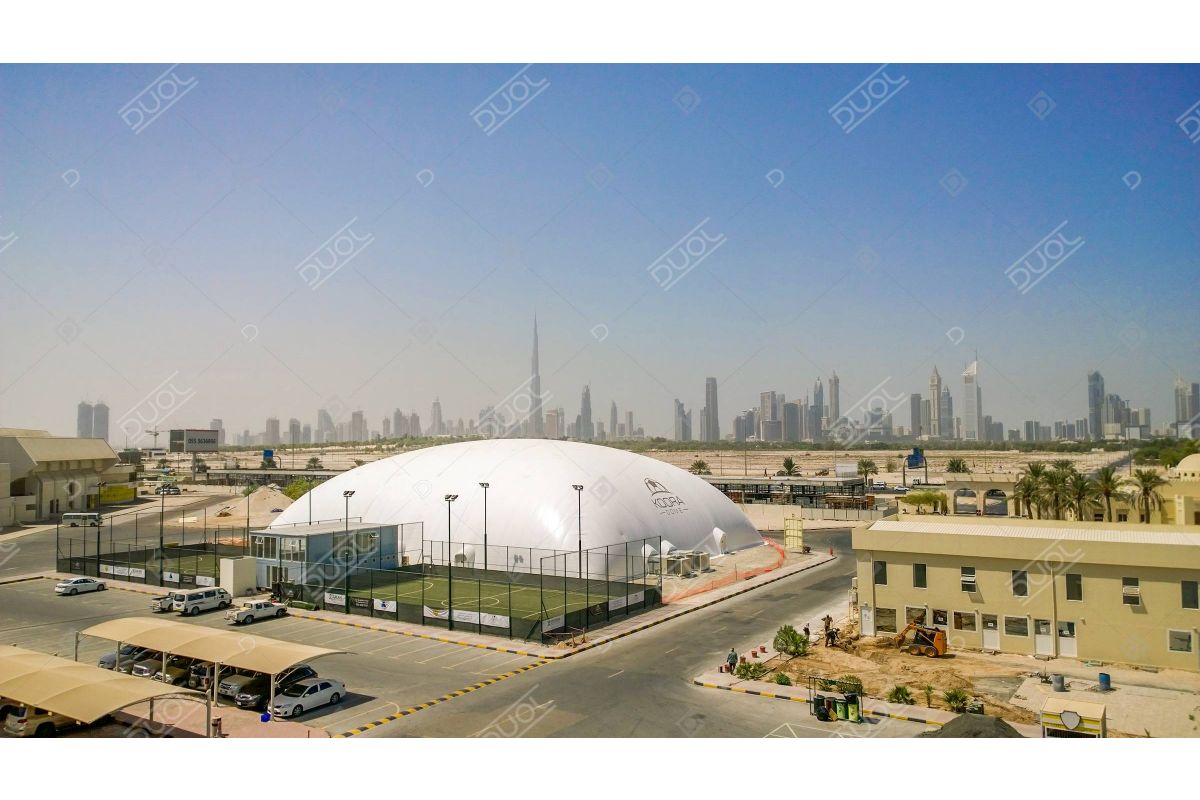

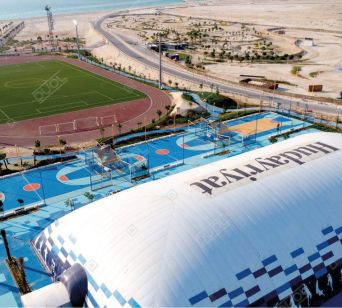

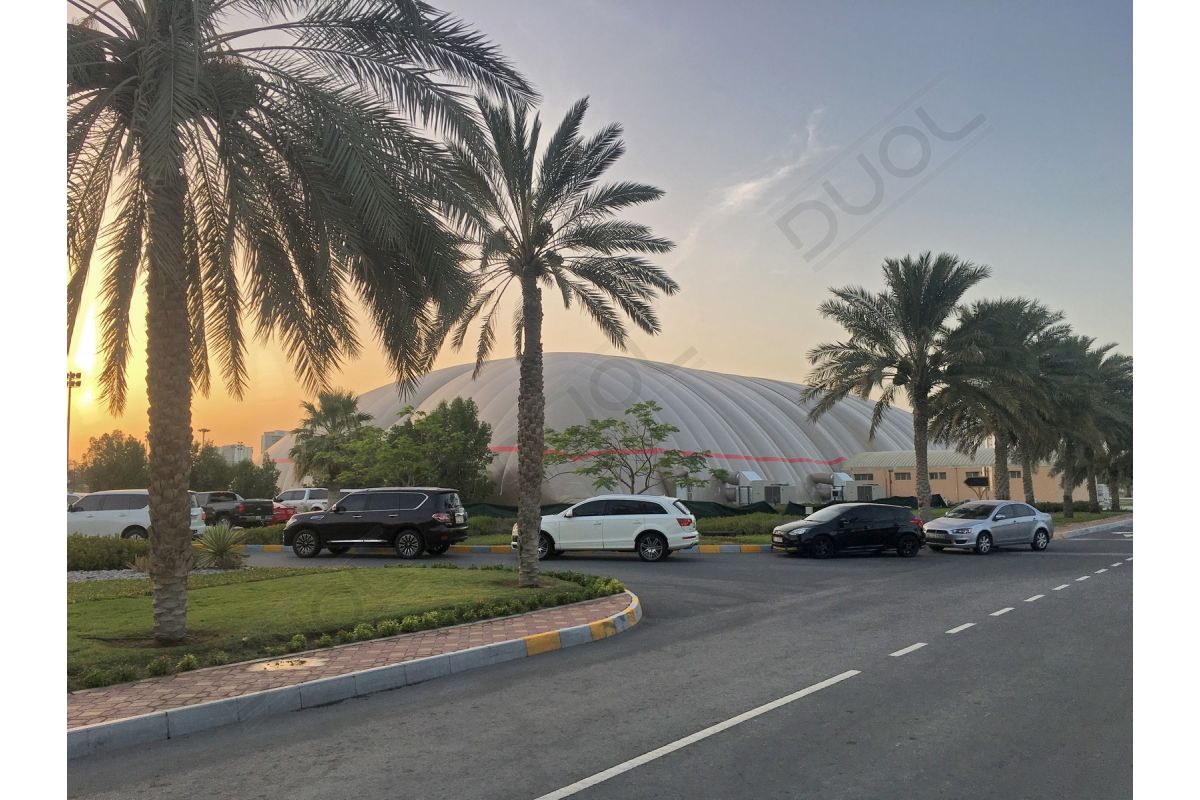

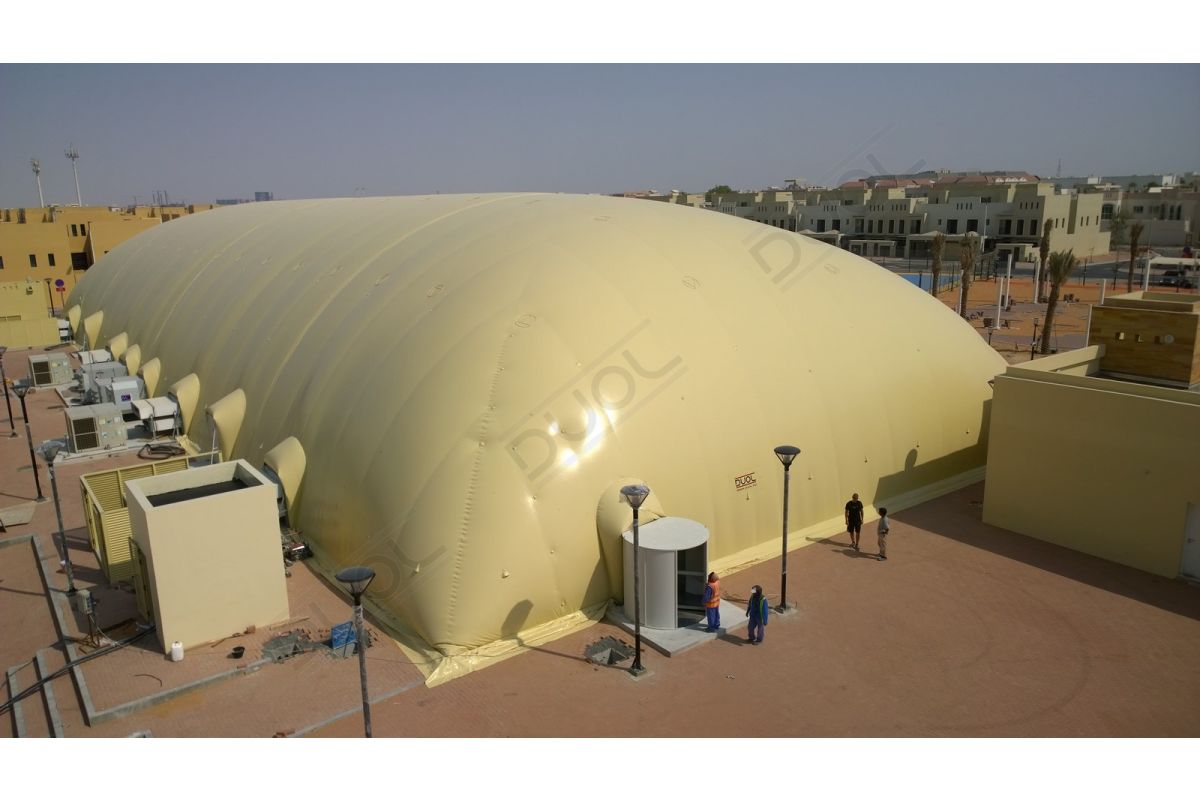

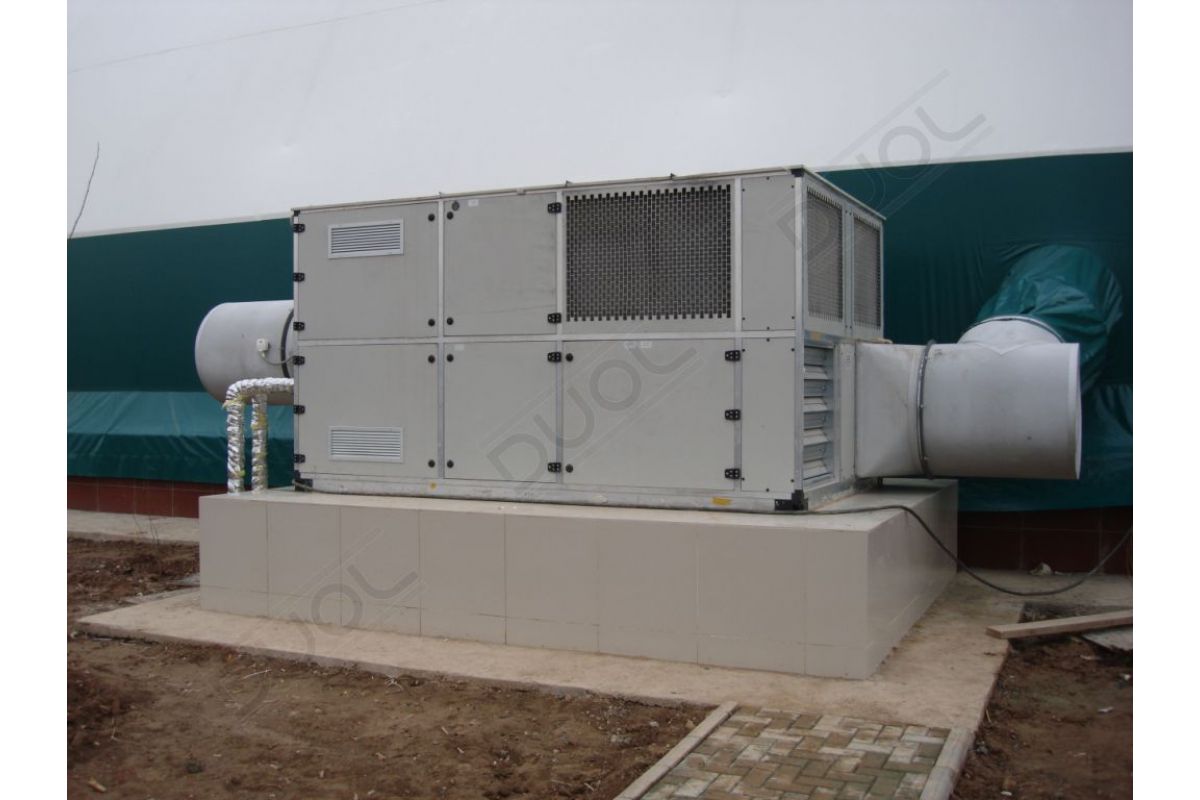

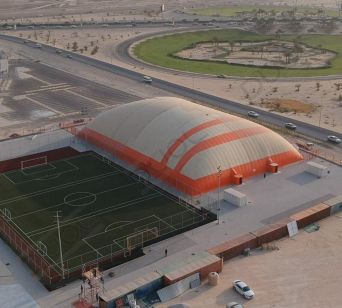

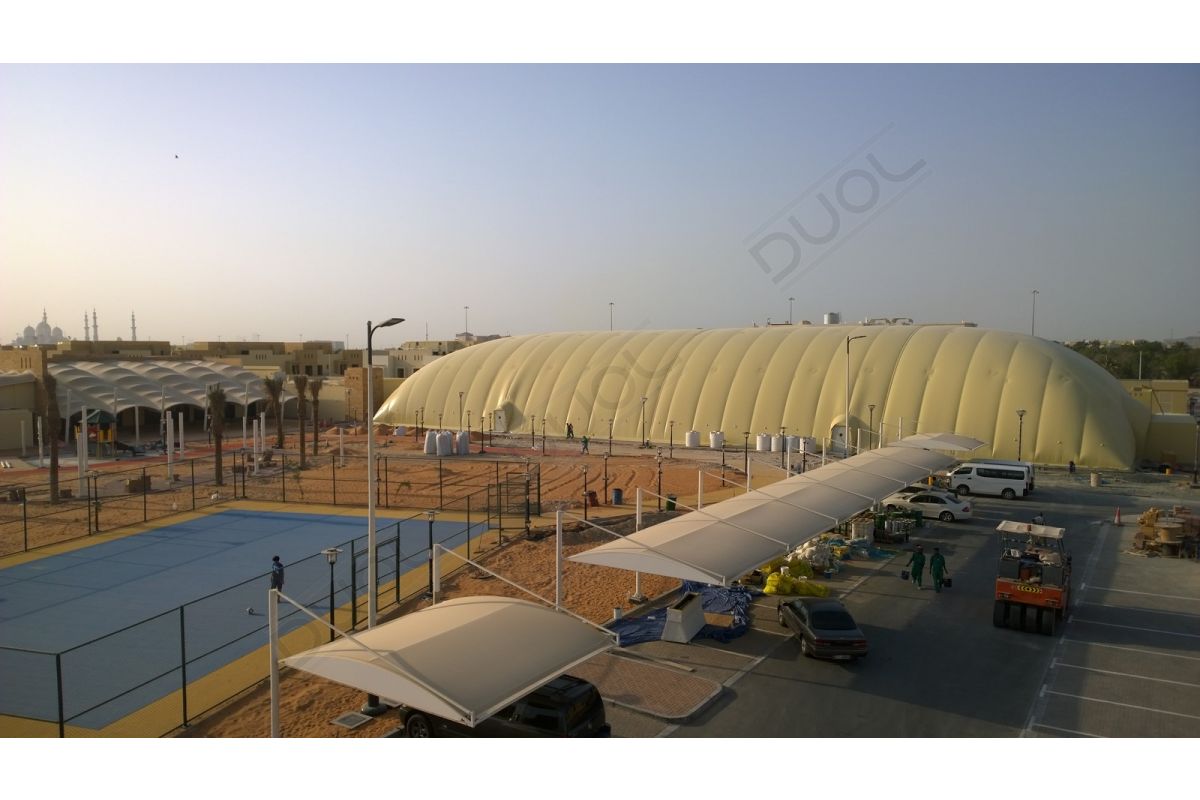

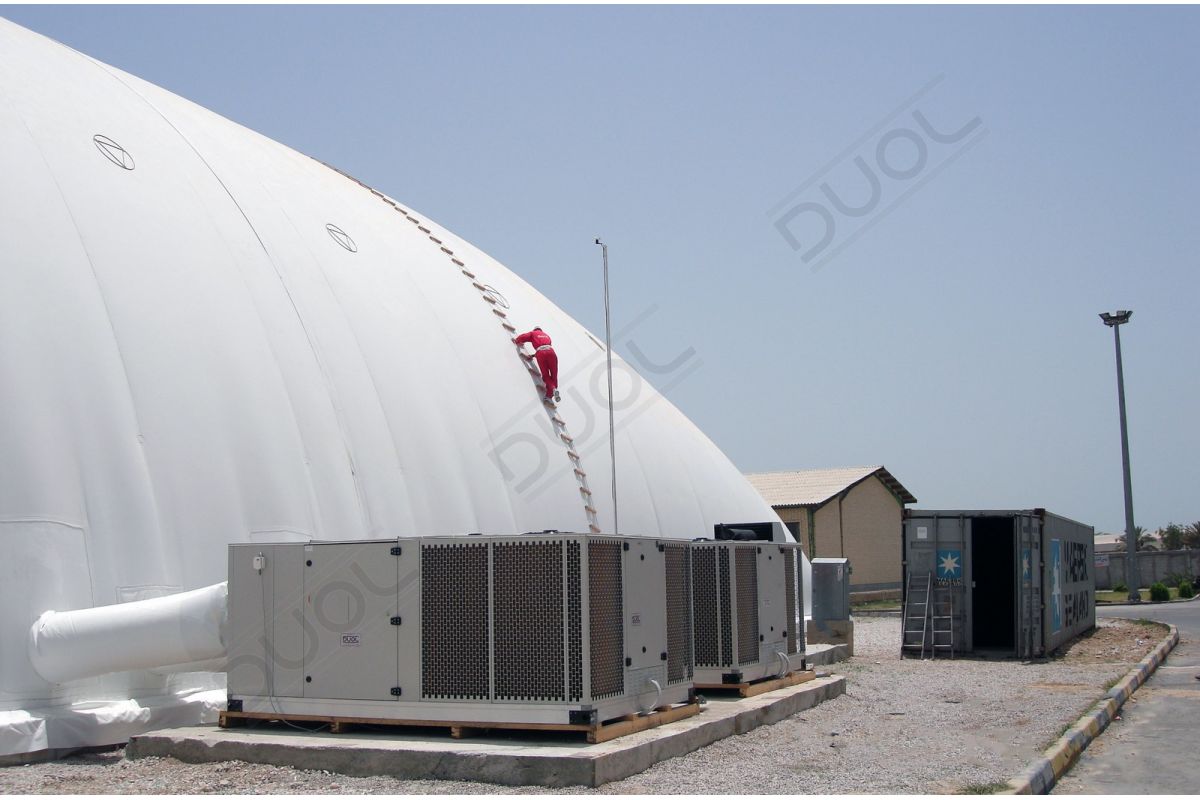

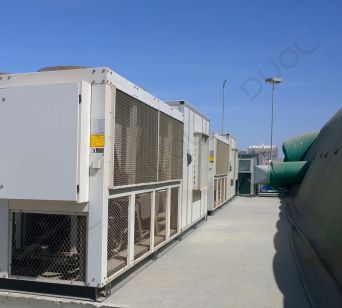

DUOL have accomplished many projects in the Middle East, Gulf region and other regions with very hot climates. We have installed domes in Saudi Arabia, United Arab Emirates, Egypt and other countries in Asia and South America with extreme climatic conditions. Our dome’s membrane is uniquely designed to withstand temperatures up to 70 degrees Celsius. Our domes are designed AC system ready together with high thermal membrane insulation which reduces the heat entering the dome and maintains the climate inside the dome. A ventilation system ensures the fresh air circulation inside the dome to keep a healthy, fresh and cool environment for the visitors inside the dome. The air conditioning system withstands heat up to 70 degrees Celsius.

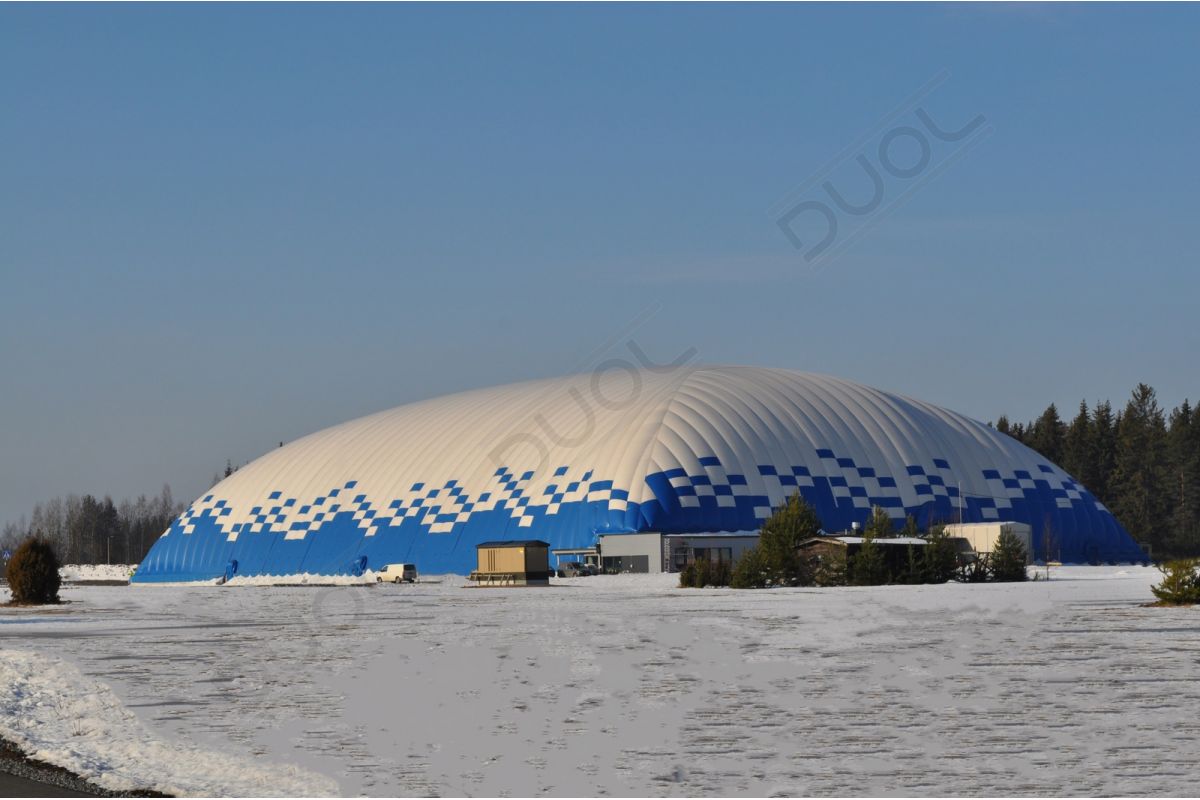

DUOL has great experience in constructing airdomes for extreme weather conditions. We have enhanced all elements (membrane, air generators, anchoring system…) to withstand extremely low or high temperatures with strong winds and heavy snow.

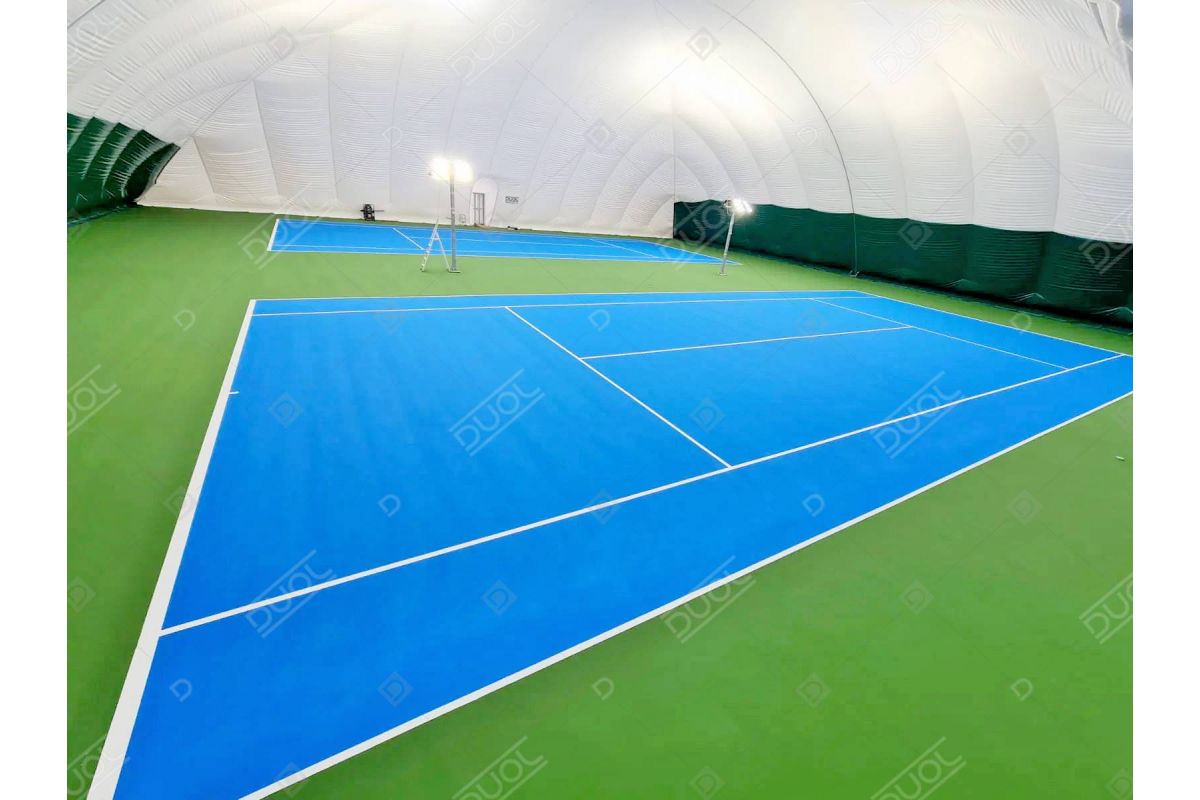

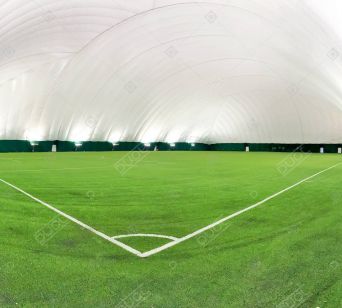

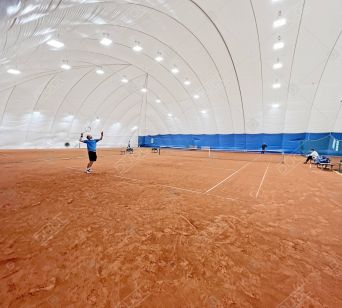

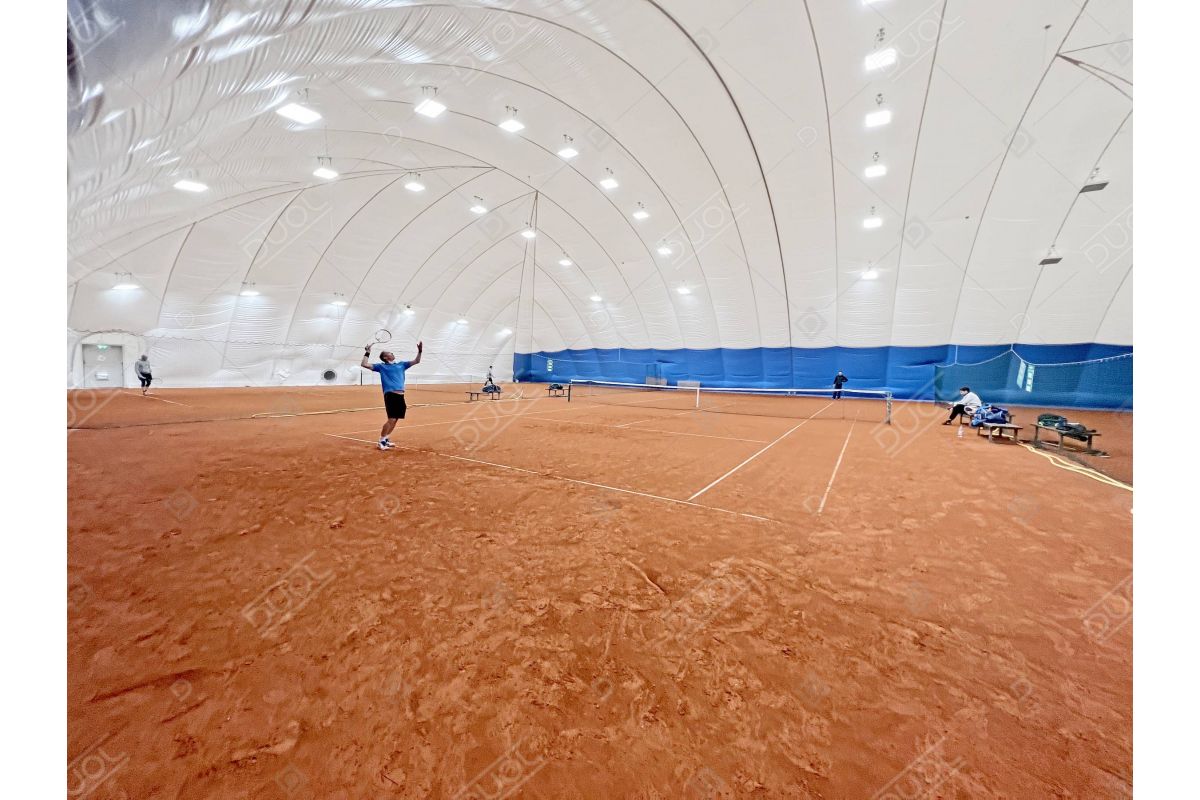

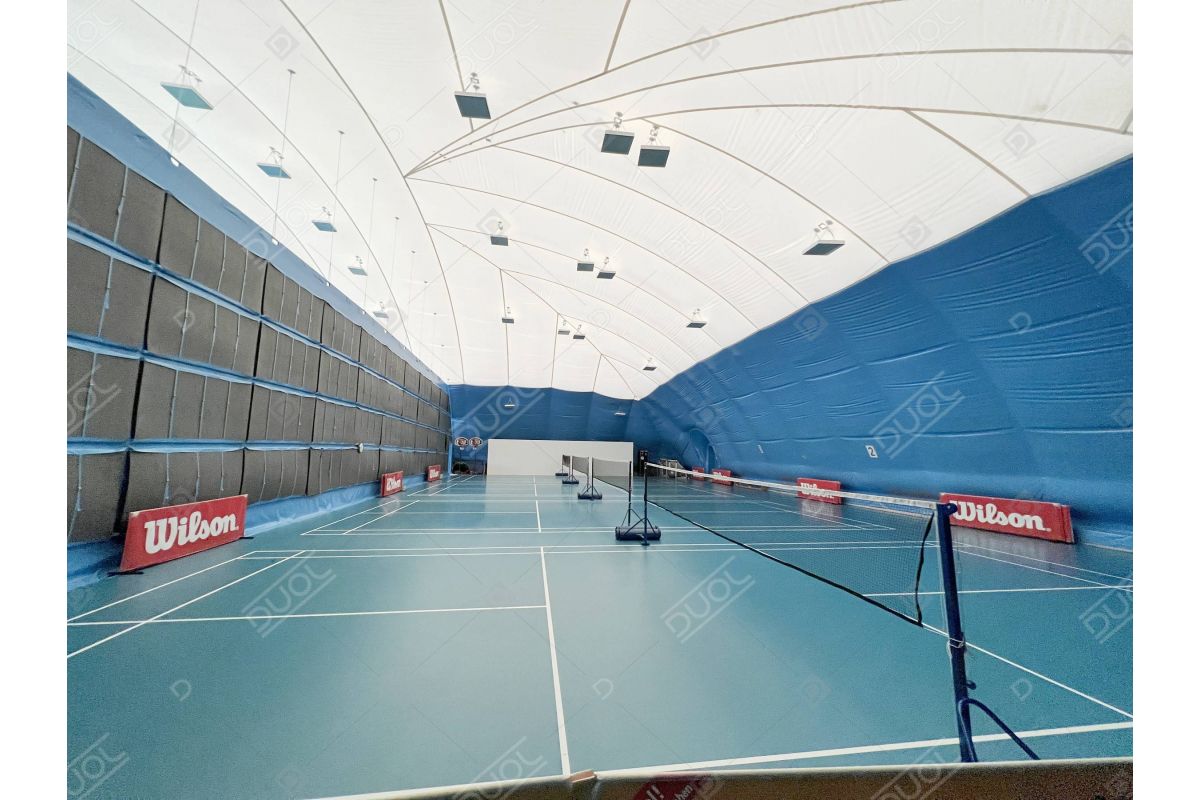

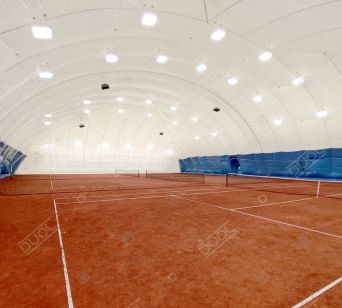

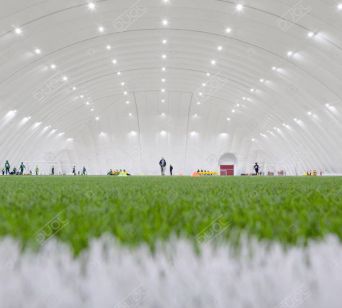

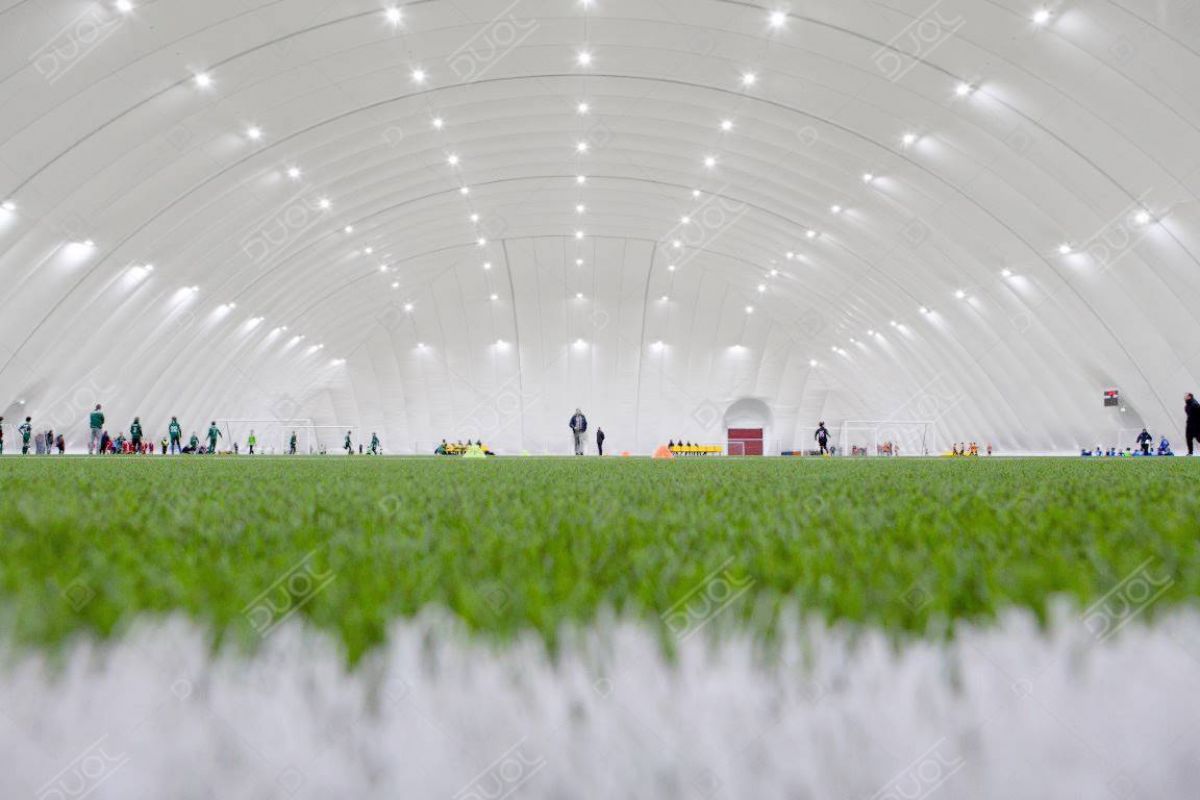

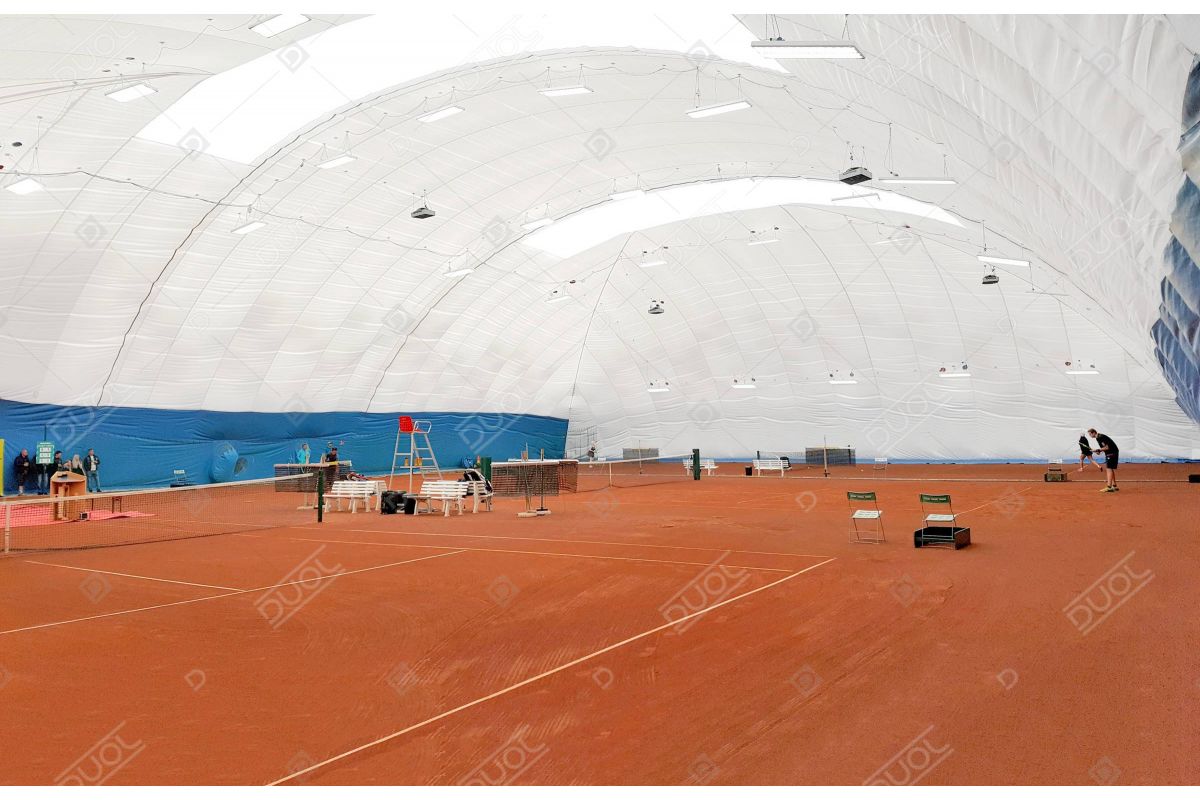

LaserLed luminaries are using LED source for light emission. They are suitable for operation under most difficult sports applications. Specially designed technology for precise and high-intensity light source. System efficiency up to 210 lm/W Construction with the optical part is designed for high-intensity light source with a low glare as well as a “no-shadow” effect. The construction is made of steel and aluminum to ensure best possible heat dissipation and a long lifetime. One of the great advantages of LaserLed is its simplicity of construction where all parts can be substituted as well as the power supply being a standard one. LaserLed has the possibility of remote control for dimming purposes if needed.

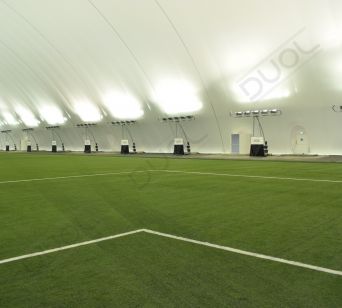

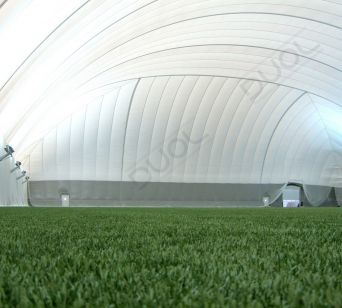

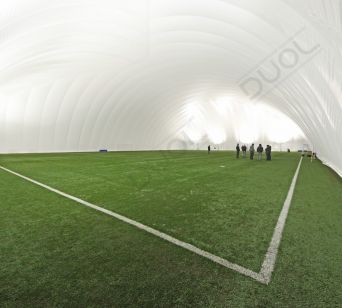

• For indirect light applications. Air dome structure height up to 45m
• Power 800W
• Luminaire flux: 110.000lm

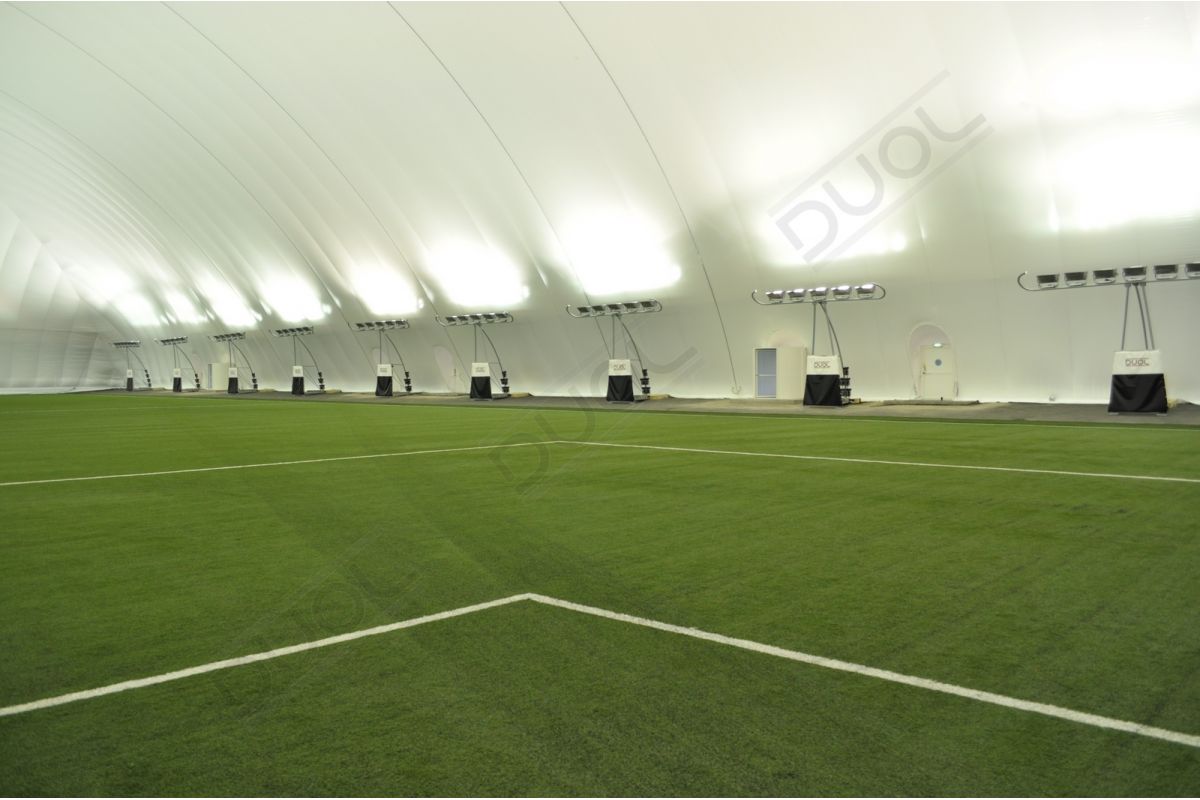

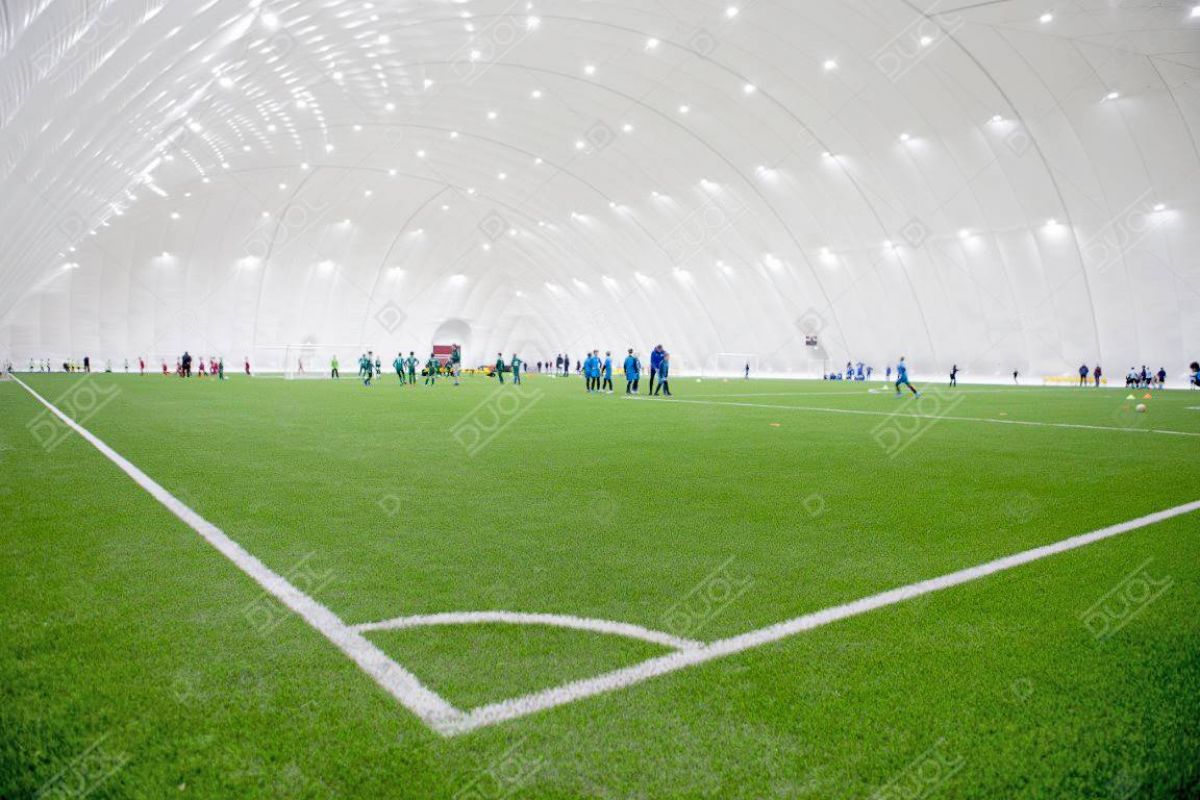

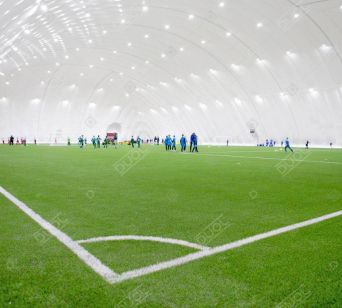

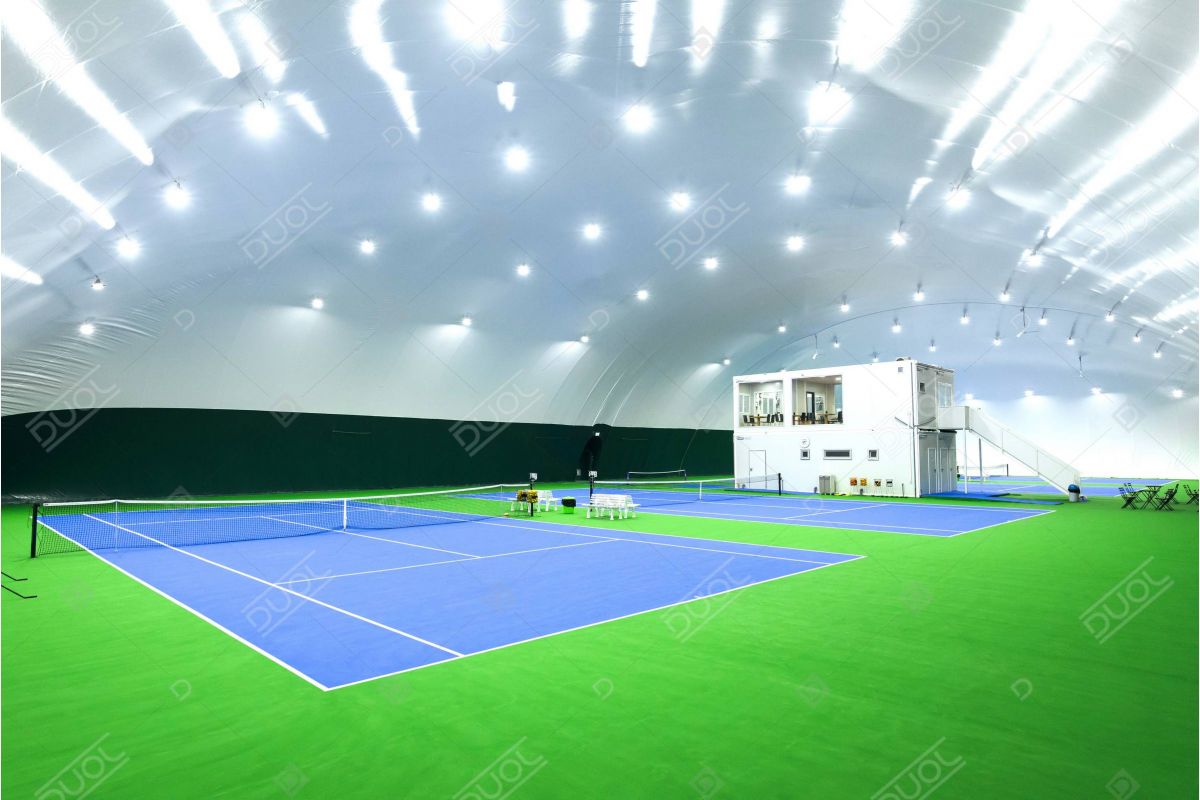

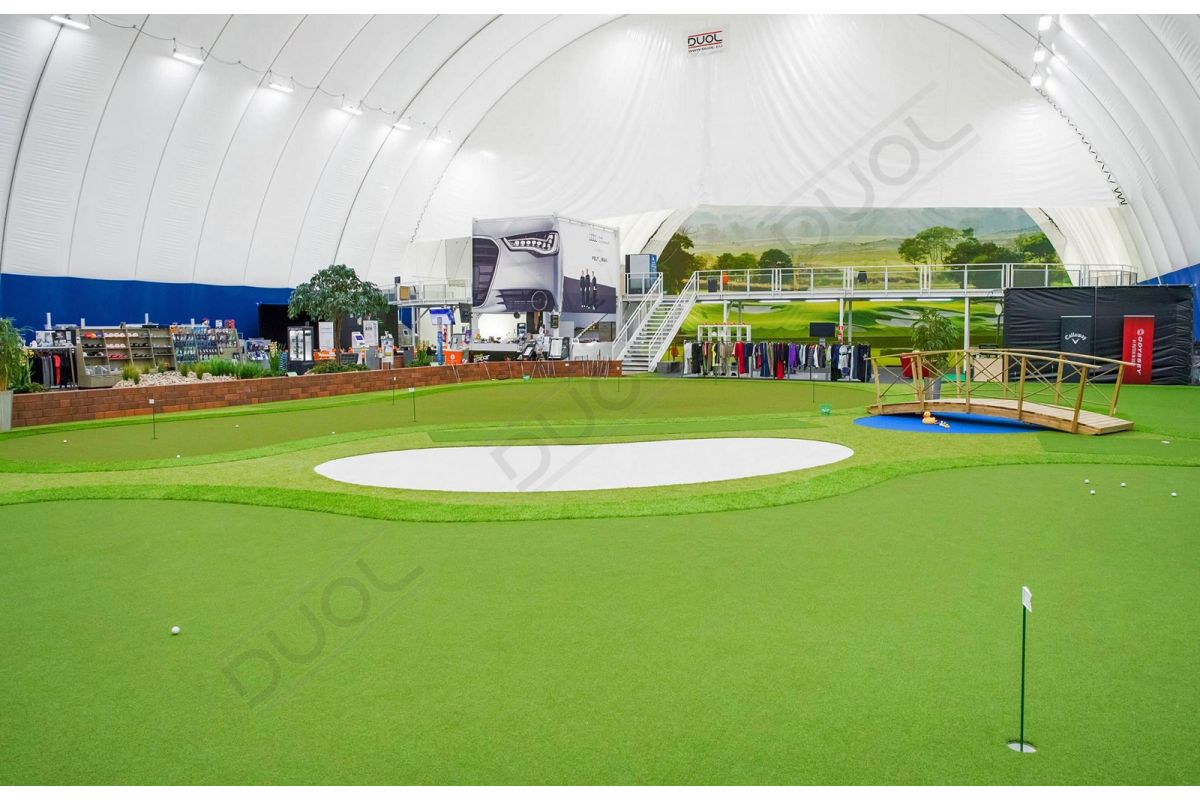

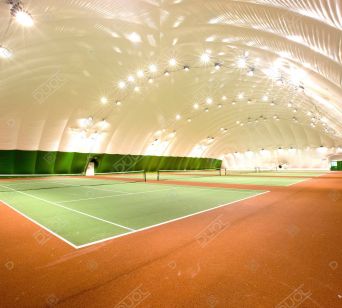

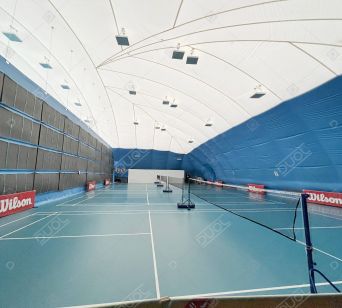

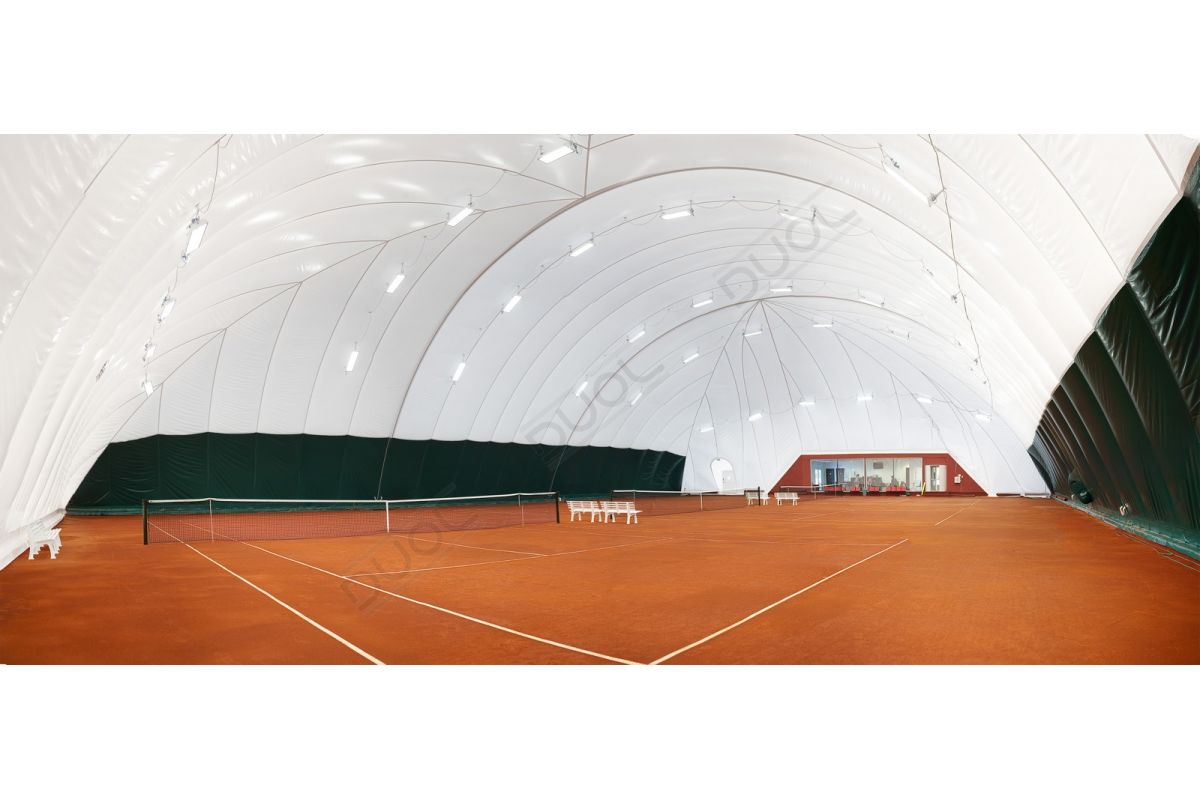

• For direct light applications.
• Air dome structure height from 5m-22m height
• Power 200W
• Luminaire flux: 27.000lm

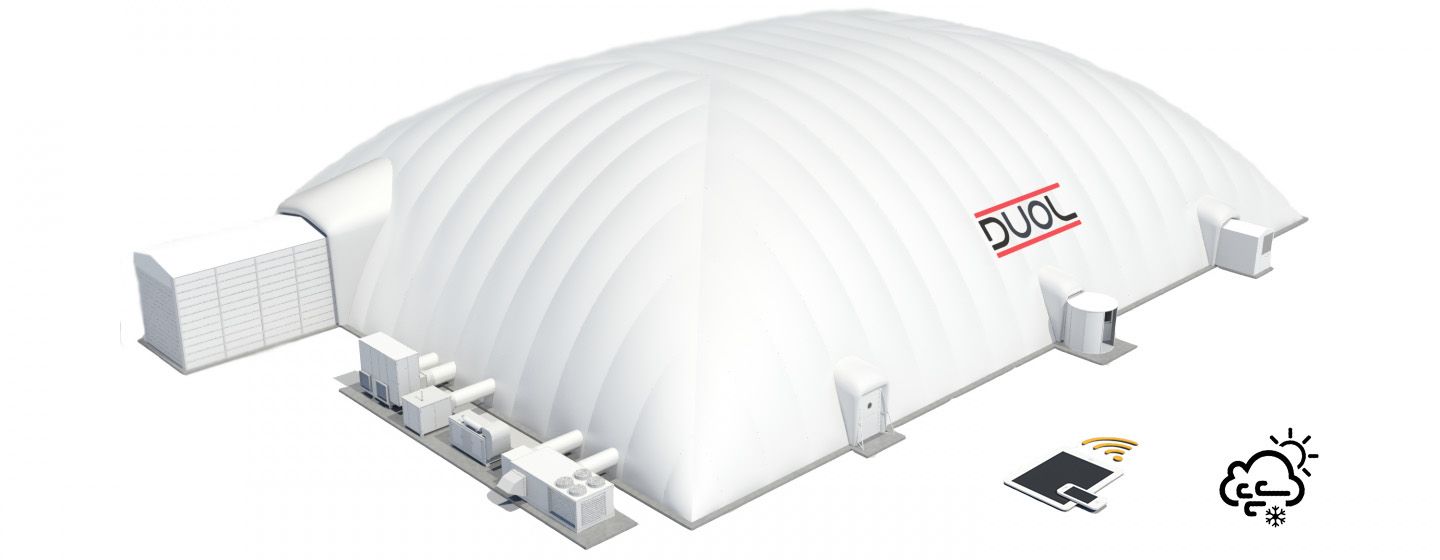

DUOL SmartDome is an innovative solution for the supervision and automation of airdomes. Programmable logic controller (PLC) interacts with different airdome systems and is used for supervision, automation and control solution. Technical data and alarms are transmitted (via GPRS or LAN) and can be managed remotely. Users have easy access via a web cloud-based application where data is stored and accessed by smartphones as well. Alarms are sent to email or SMS.
Supervision, alarming and automation
Remote data acquisition
Data logging and history
Wide range of air dome monitoring/controlling/alarming systems
Why install SmartDome?
Automatisation of daily/repeating tasks
24/7 monitoring & remote control, through smartphone, tablet or computer
User-friendly and customisable interface
Every structure needs a solid foundation to keep it anchored and secure. With the DUOL advanced anchorage system, air loss around the base perimeter is significantly reduced, providing savings on inflation.
Suitable for extreme weather conditions
For permanent or seasonal use of the dome
Durable hot galvanized steel. Maintenance free

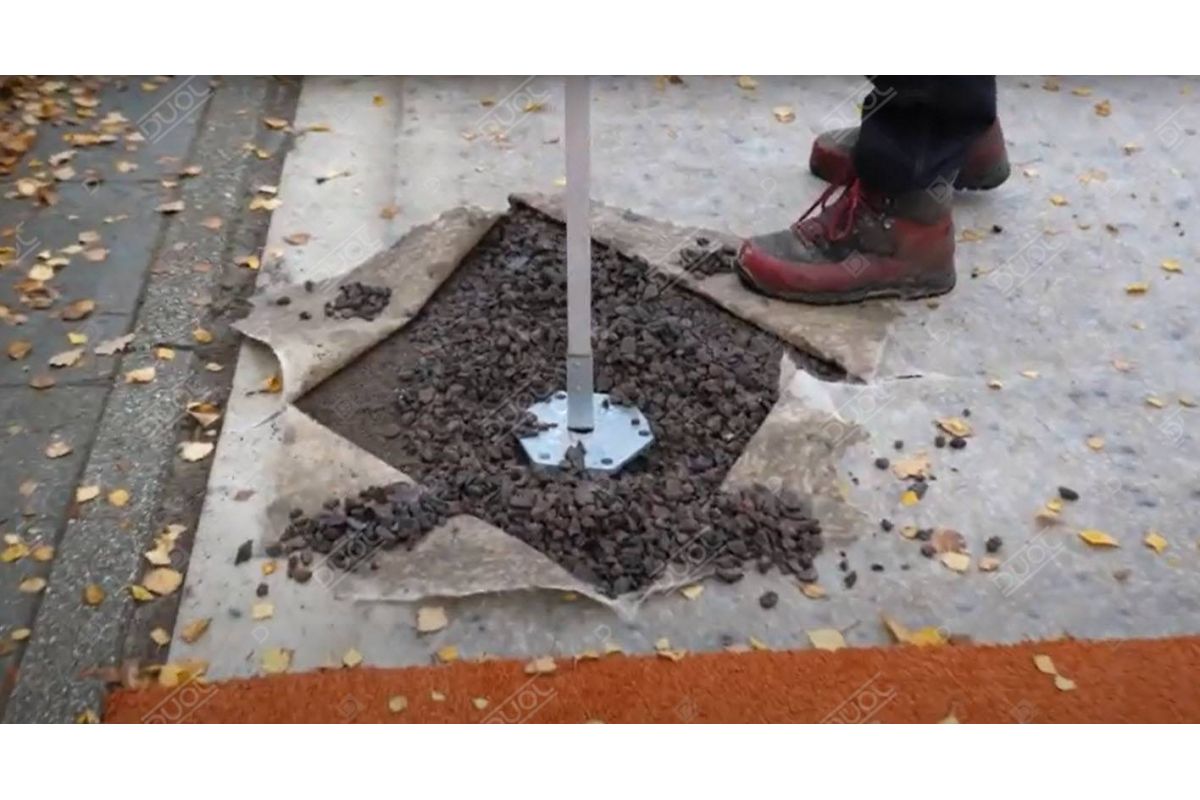

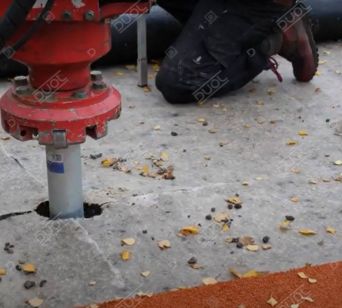

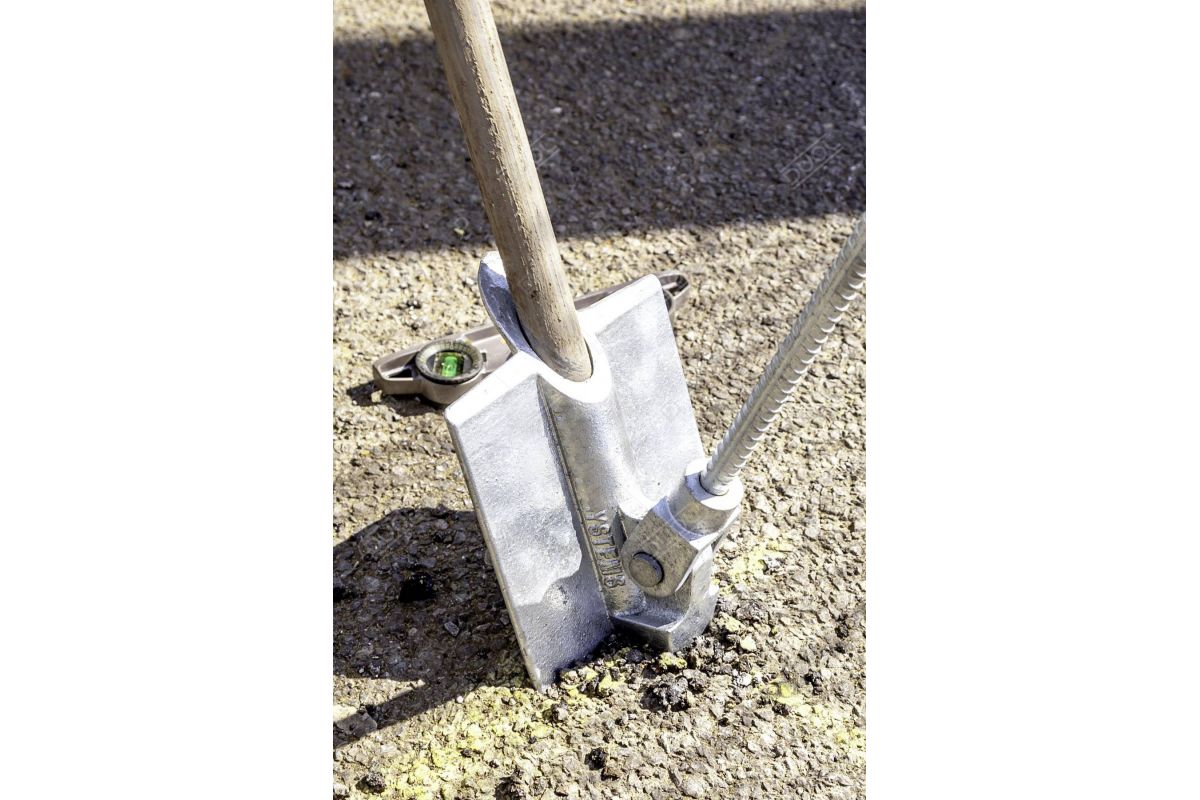

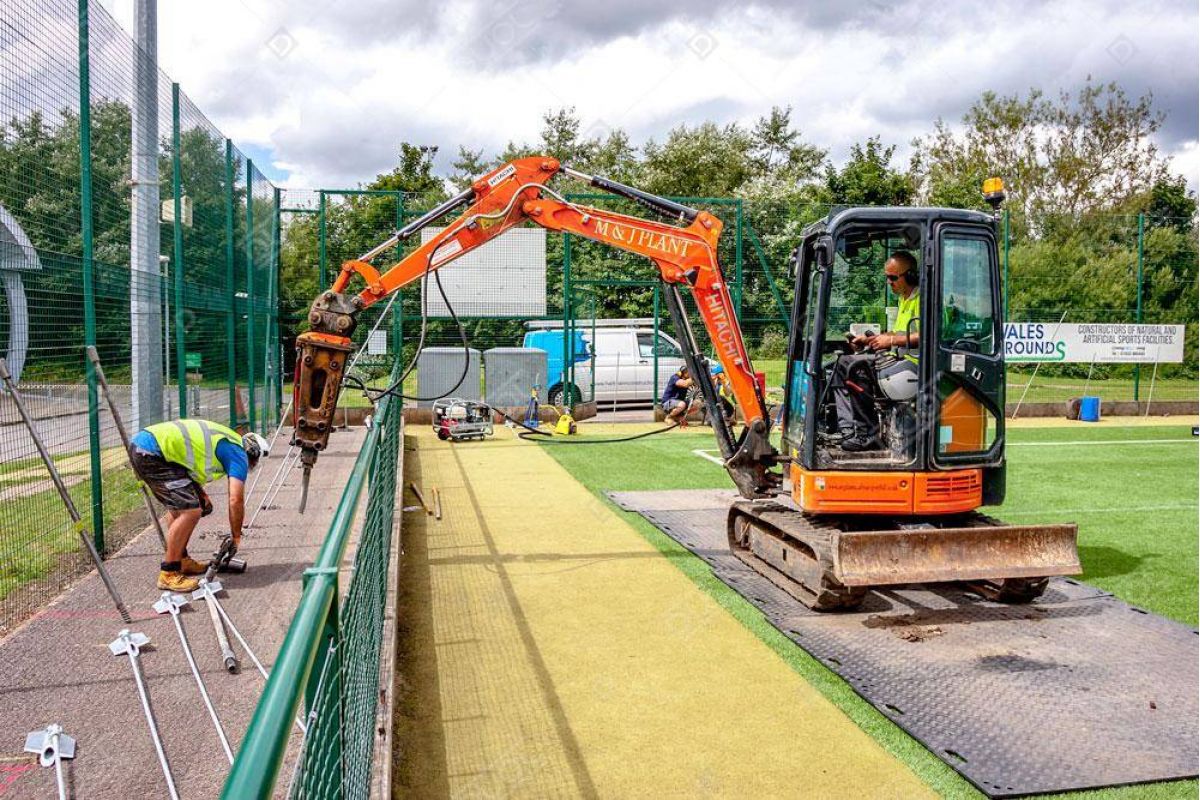

Anchoring without concrete foundation

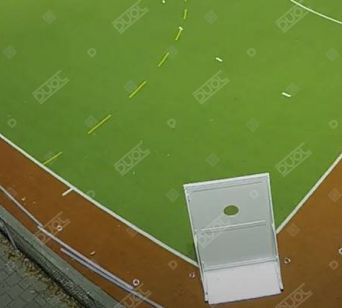

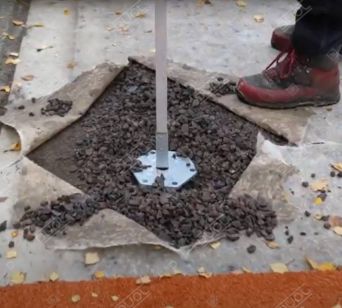

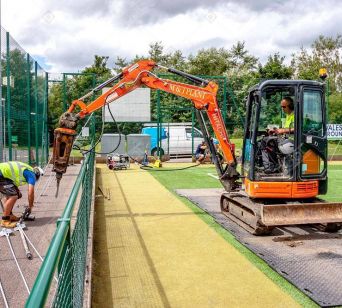

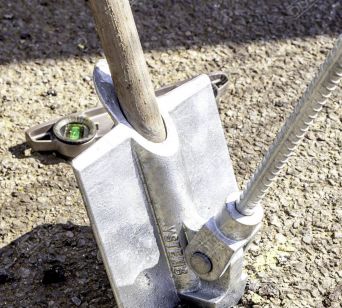

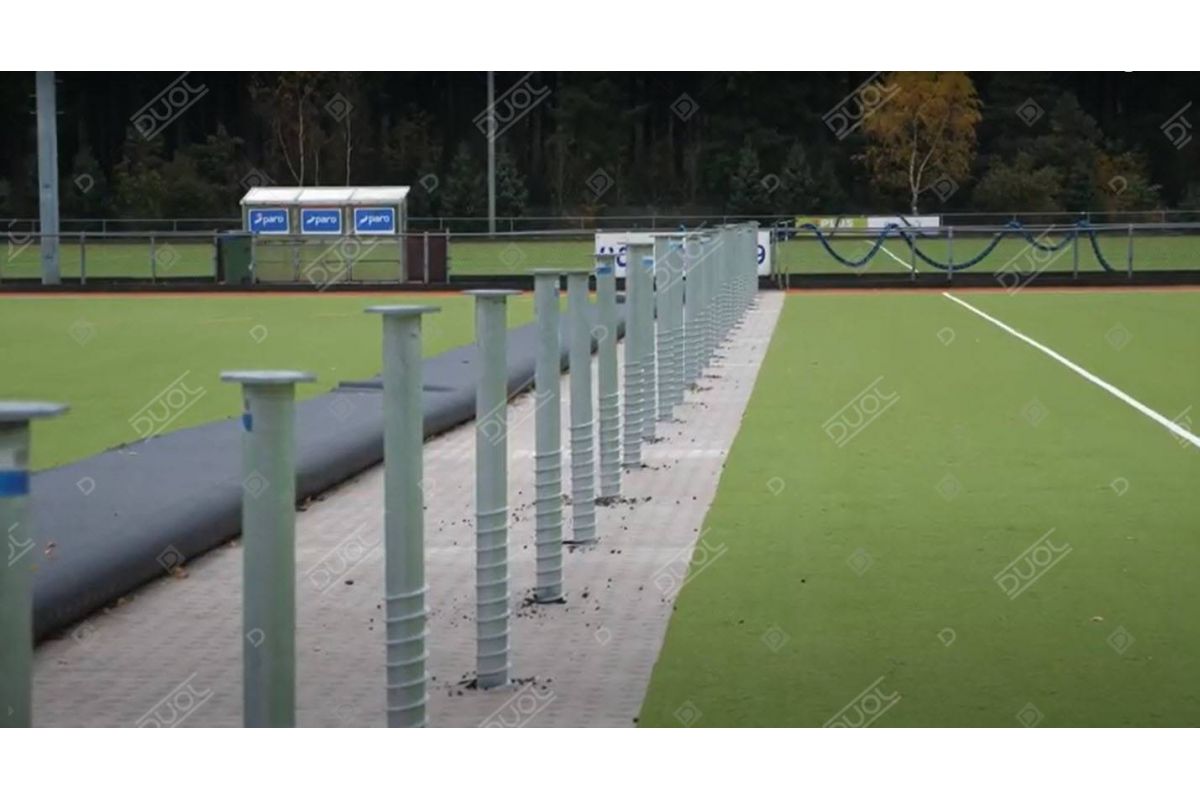

With a ground-anchoring system, there is no need for a concrete foundation around the air dome. By using ground anchors, the air dome is anchored directly into the ground with minimal ground disruption.

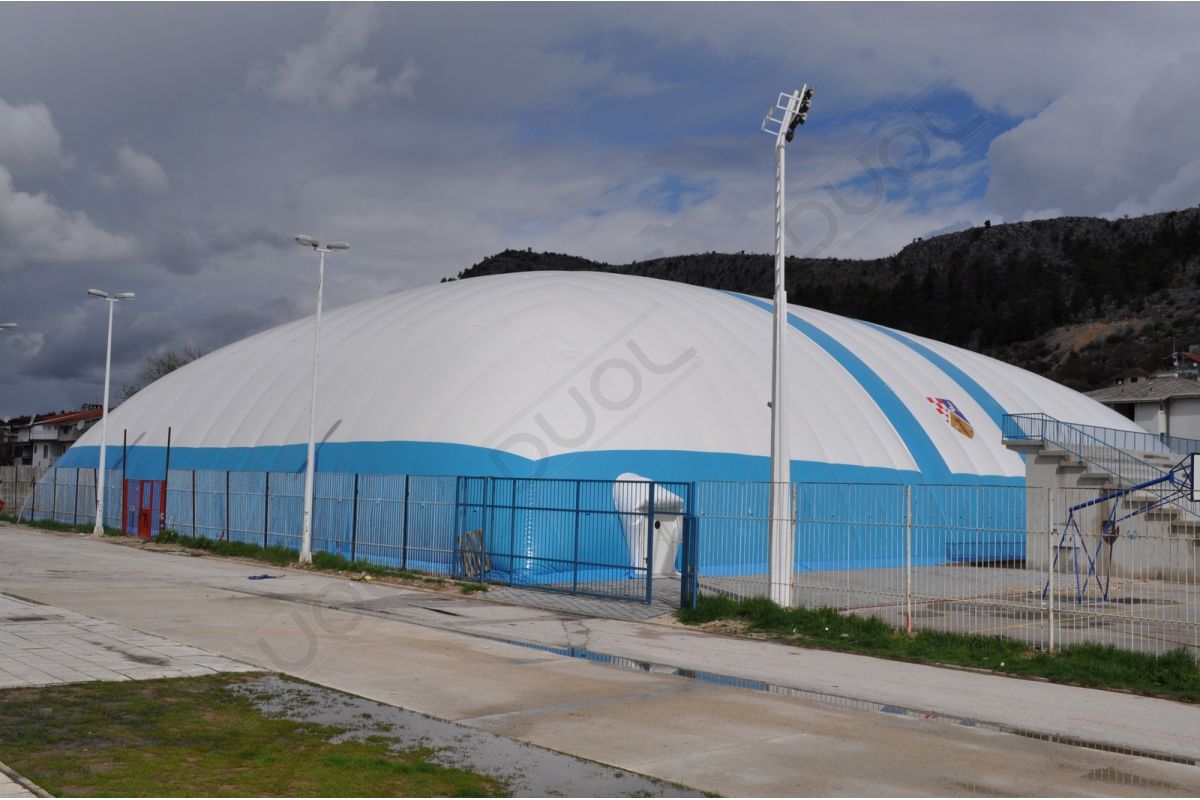

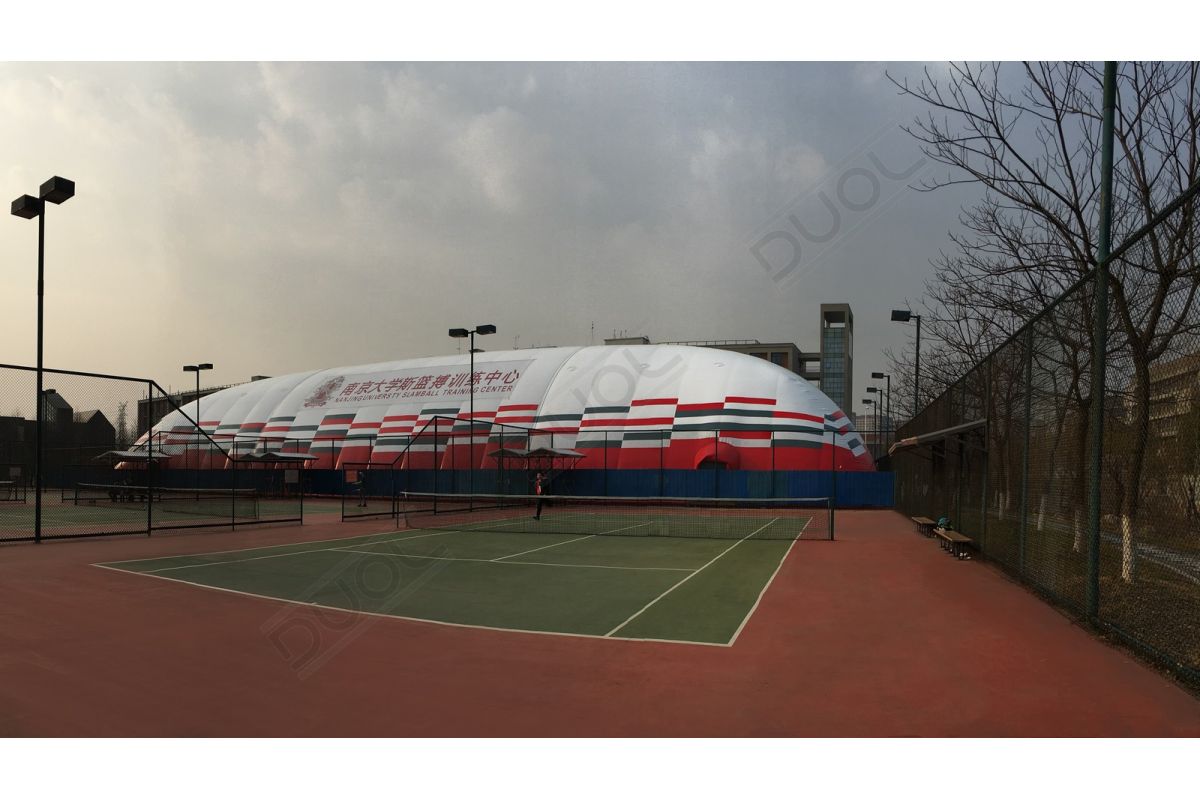

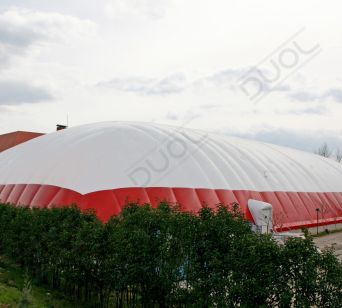

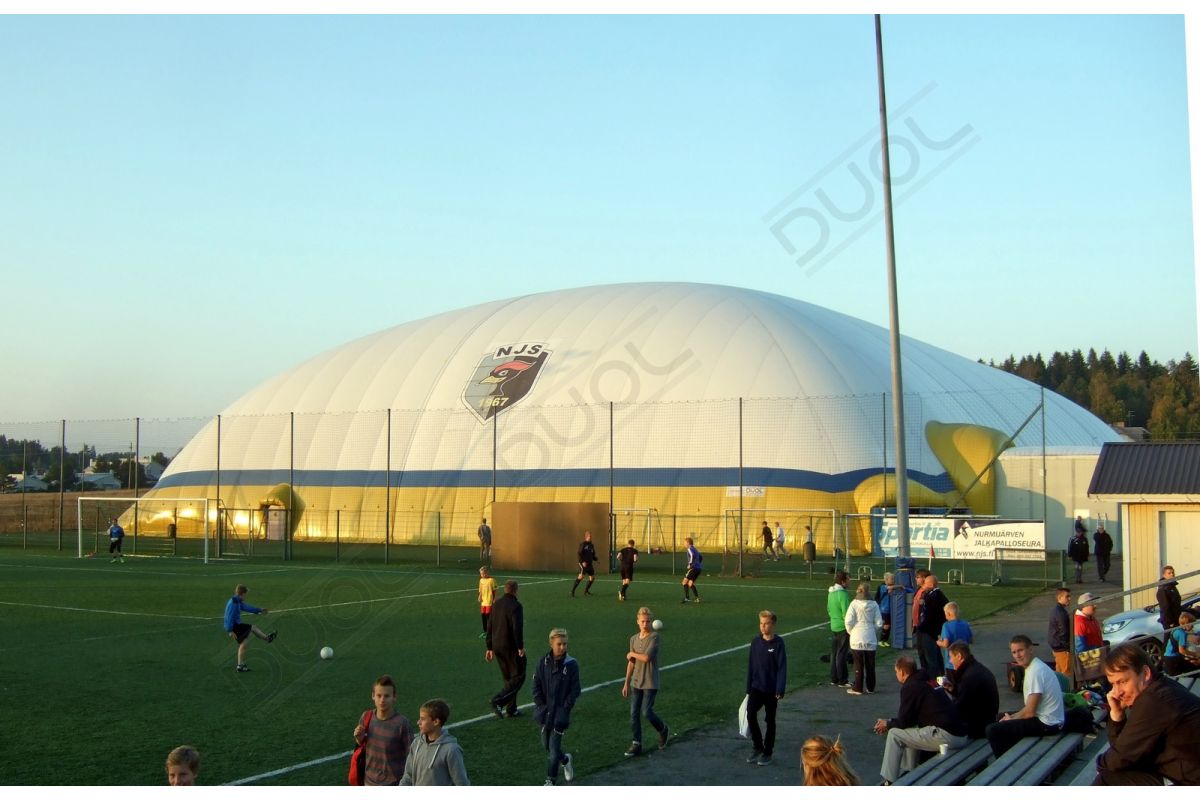

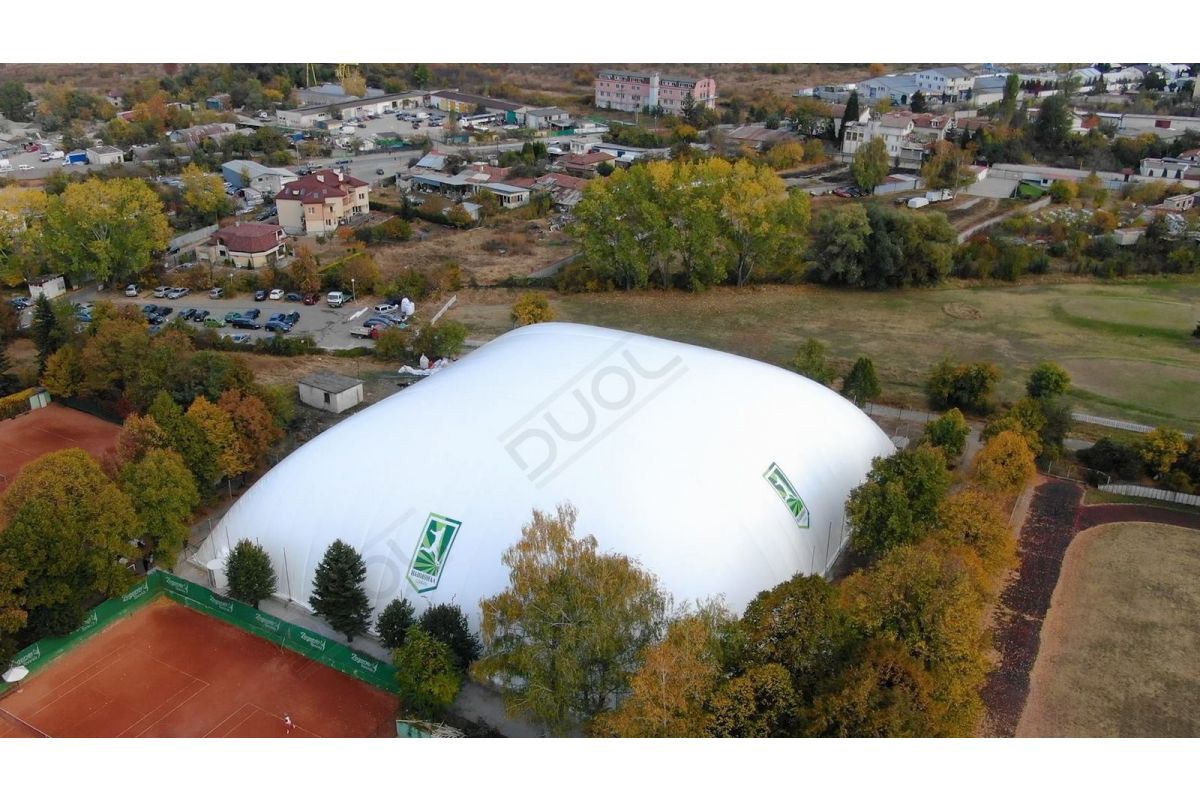

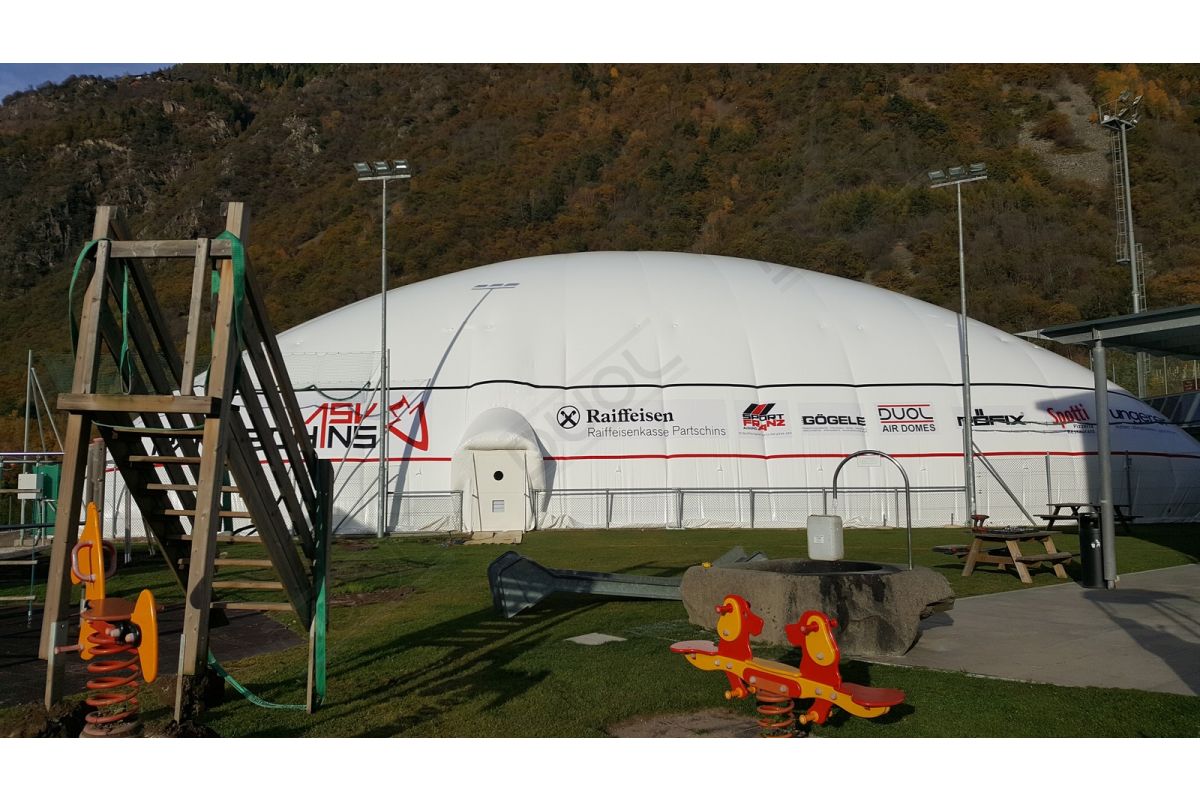

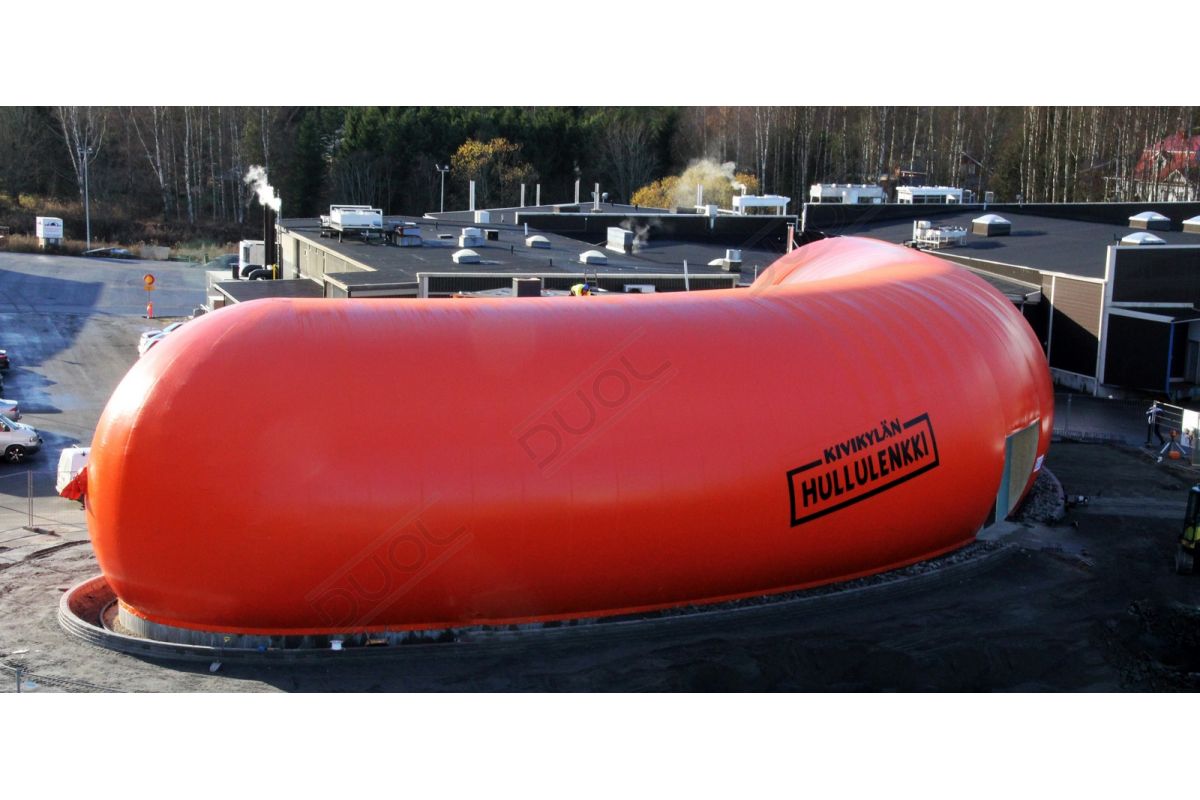

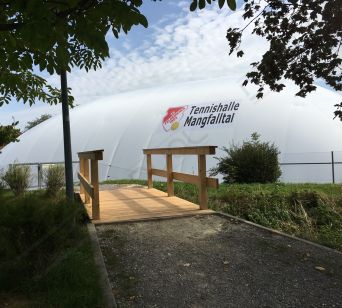

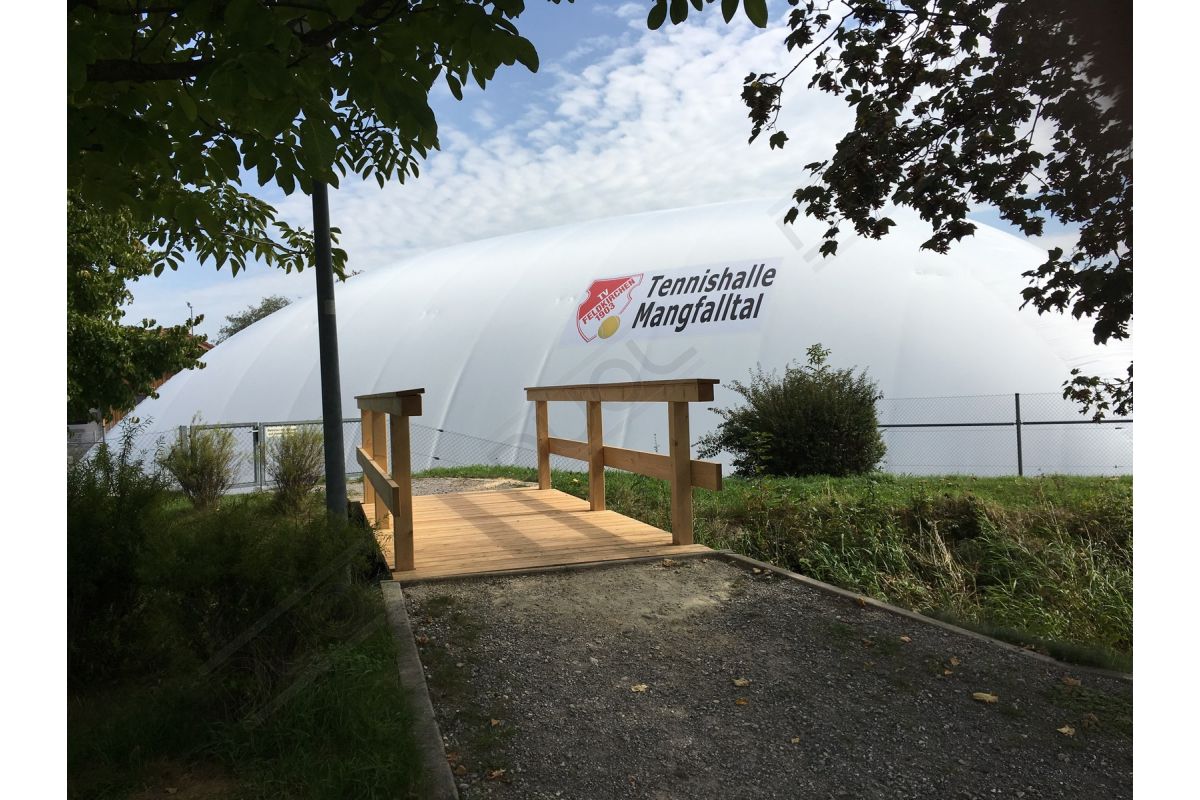

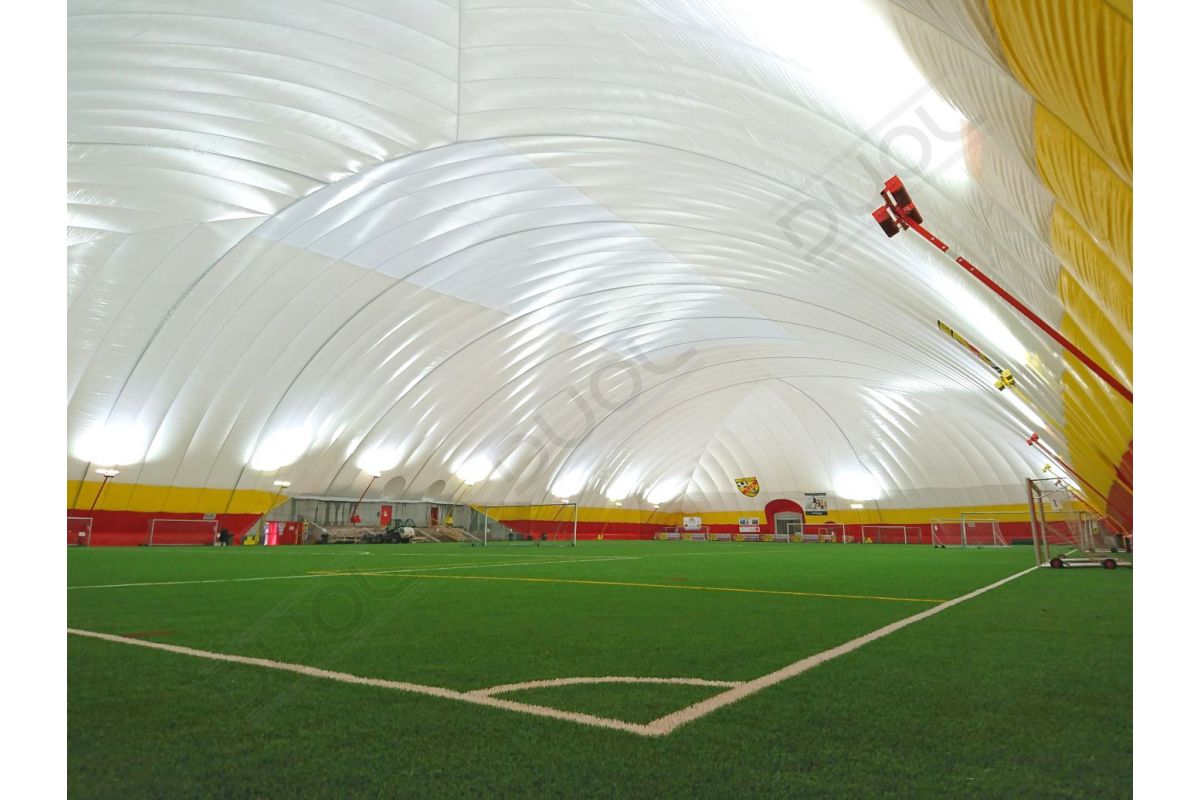

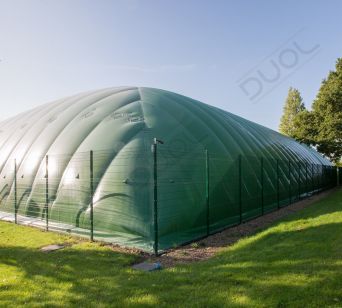

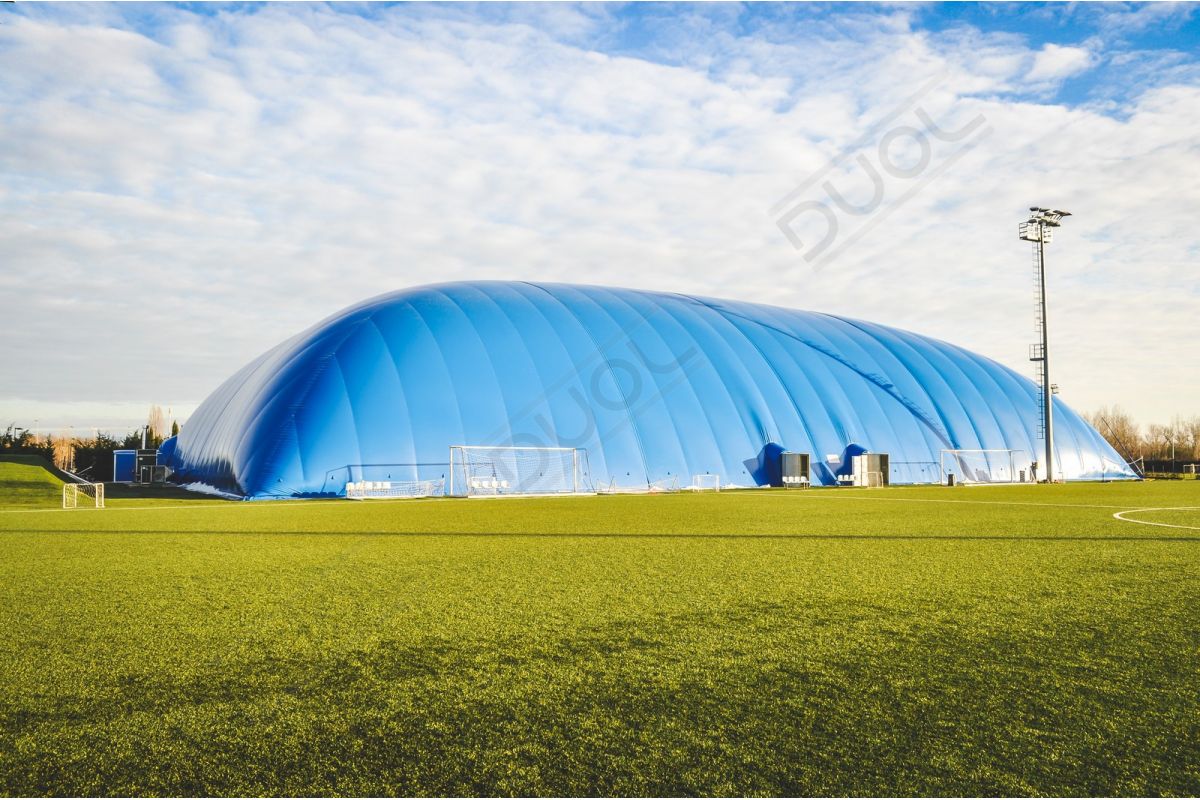

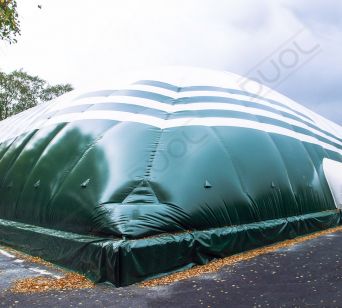

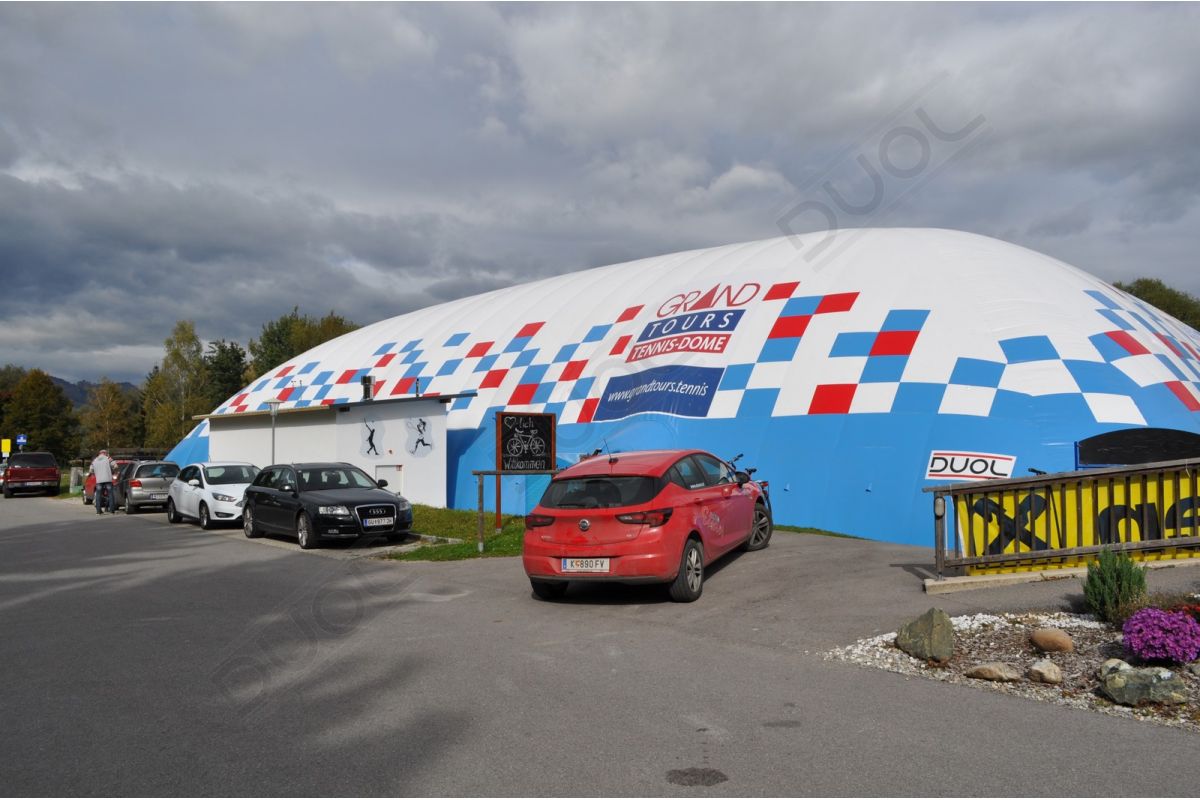

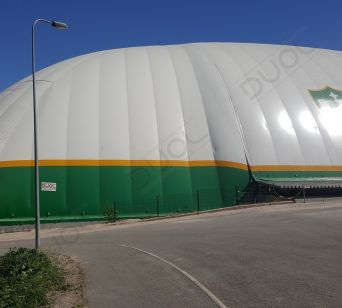

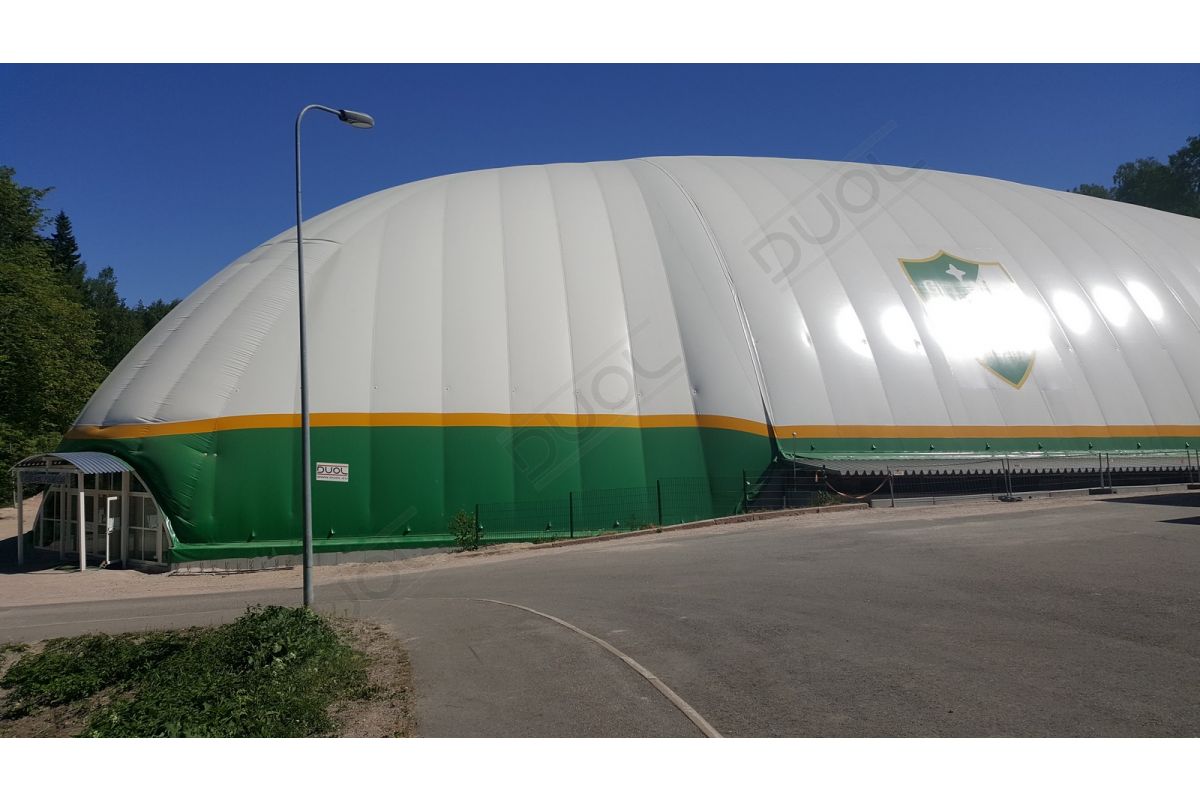

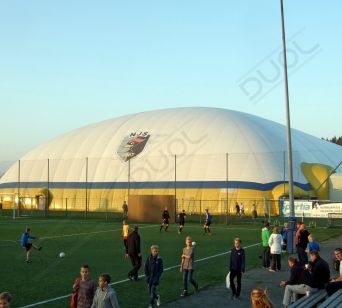

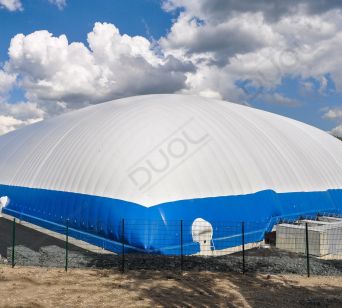

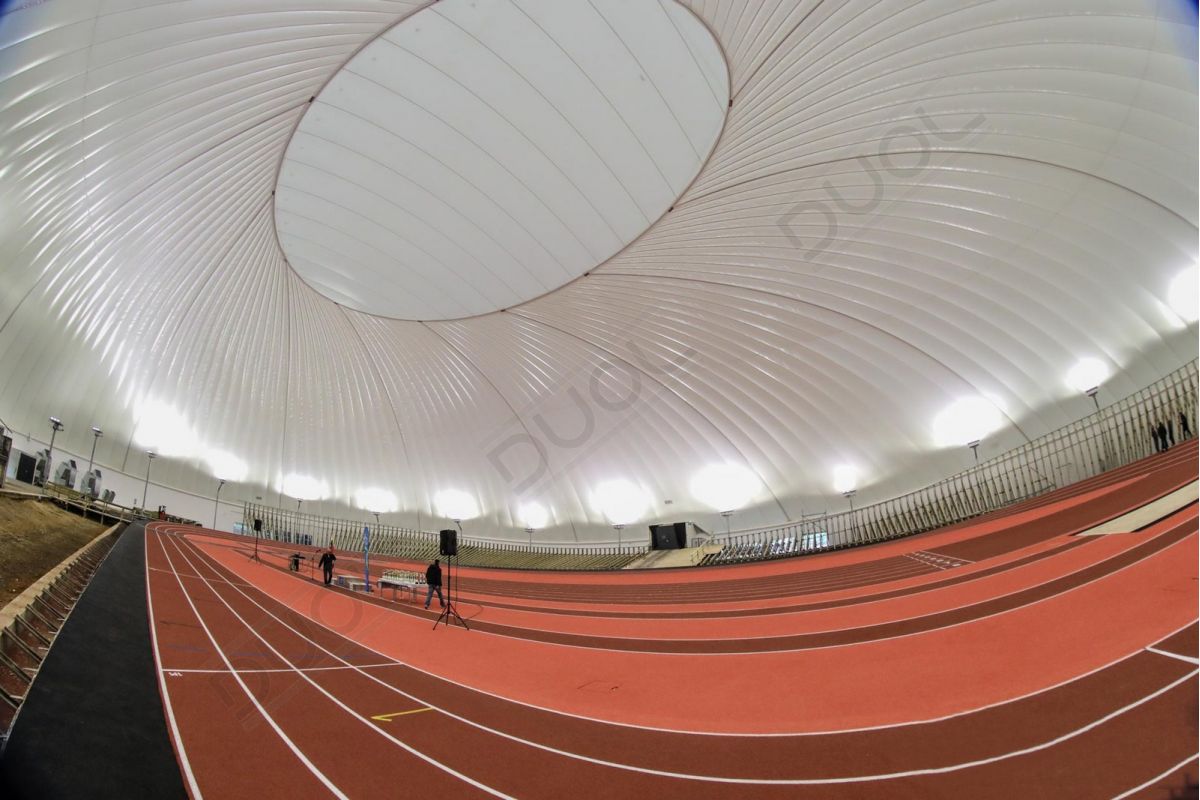

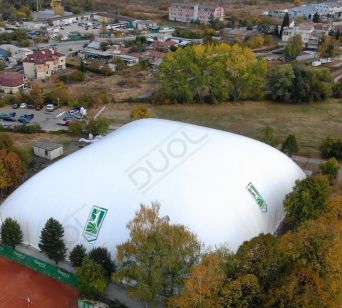

Custom design possibilities

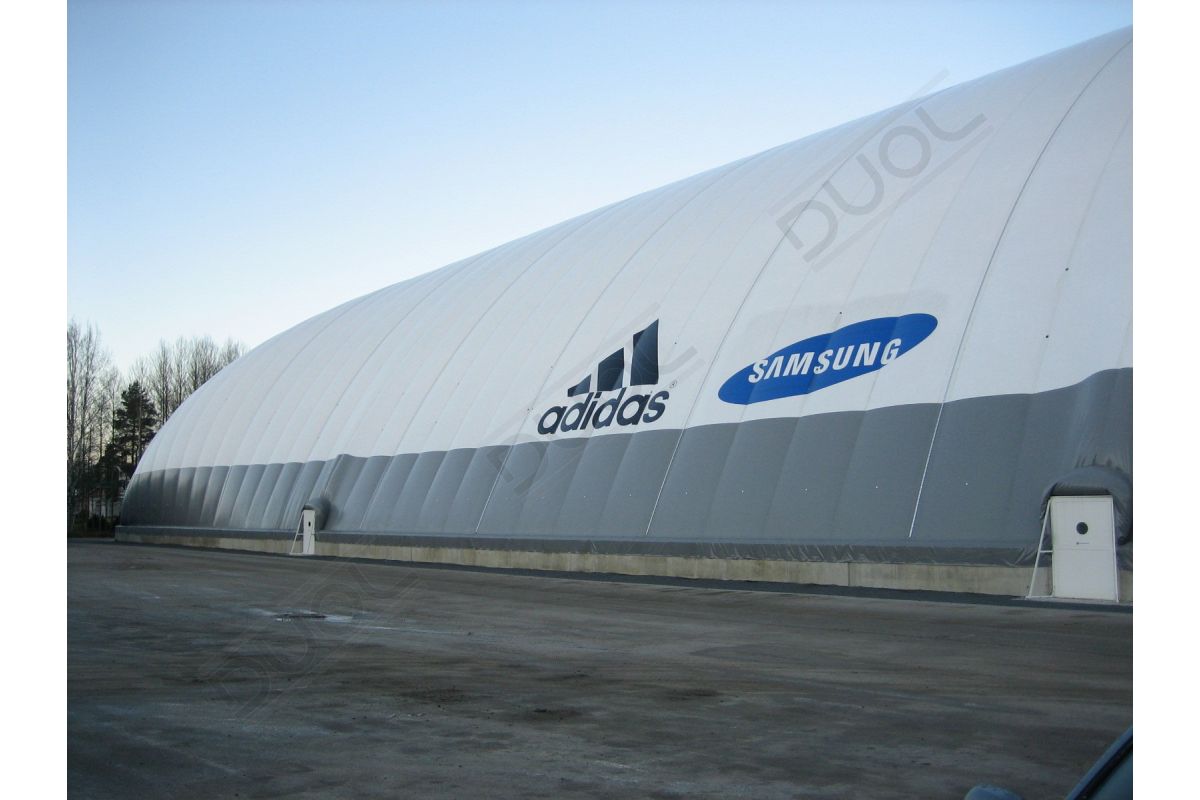

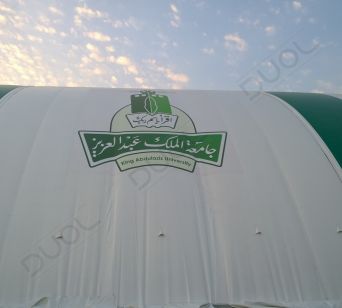

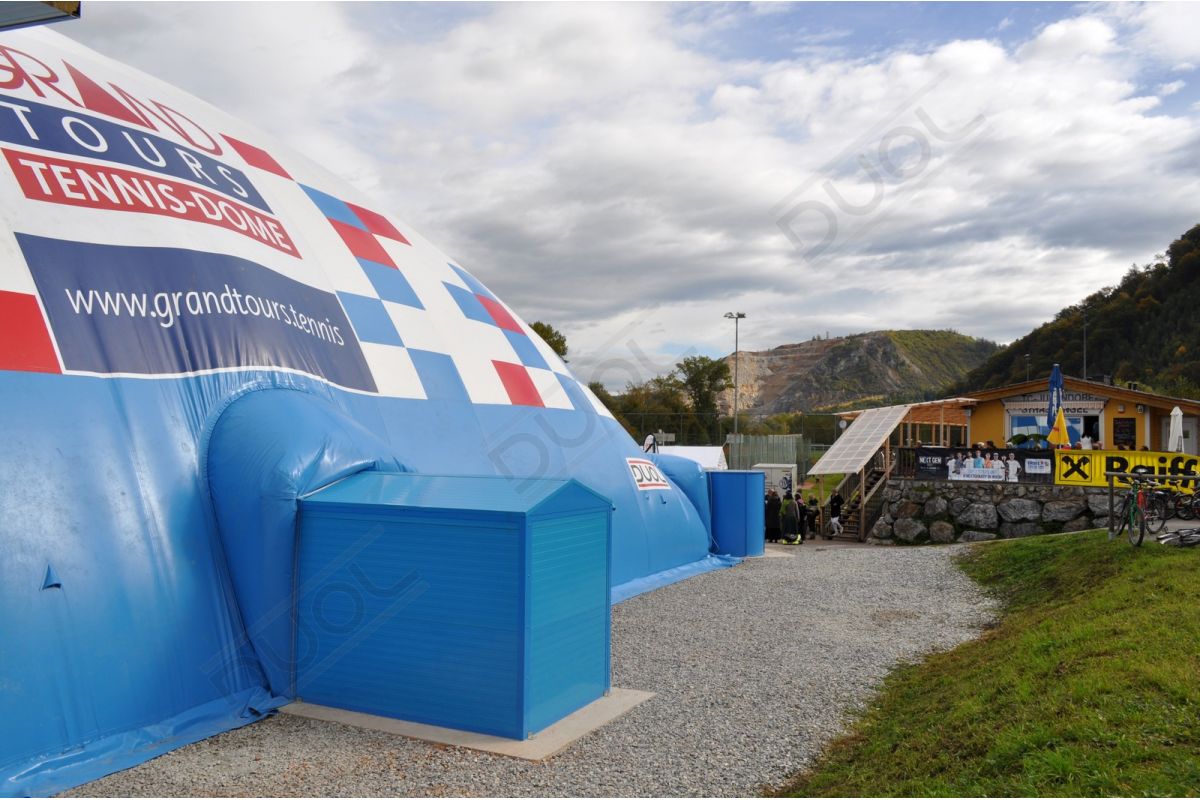

DUOL air domes can be custom-designed according to client’s specifications. Different colors, designs and
logos are possible.

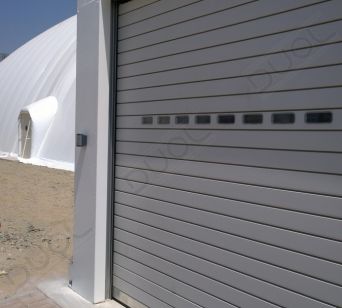

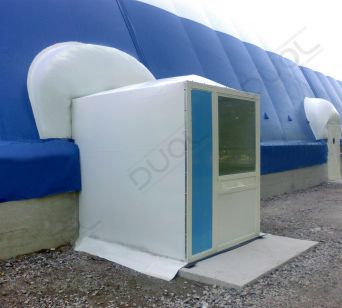

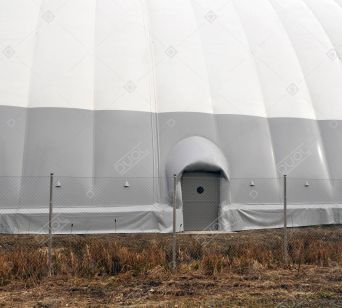

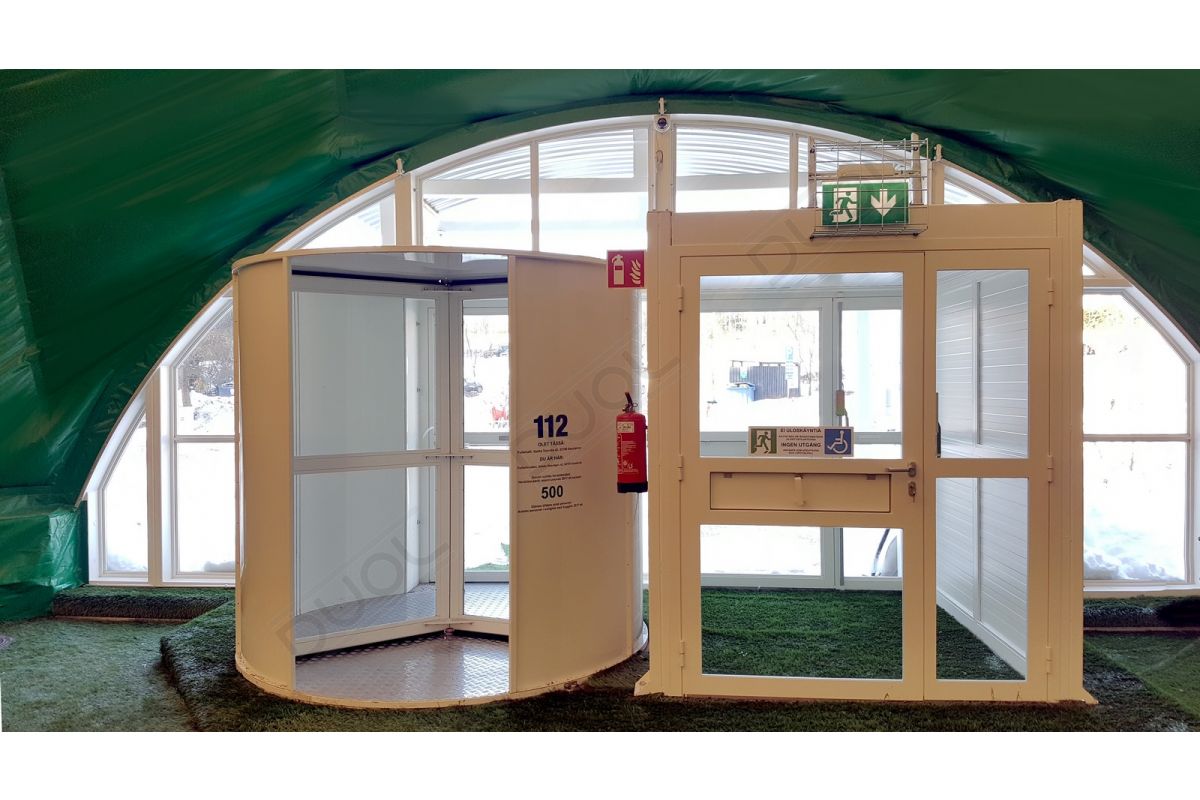

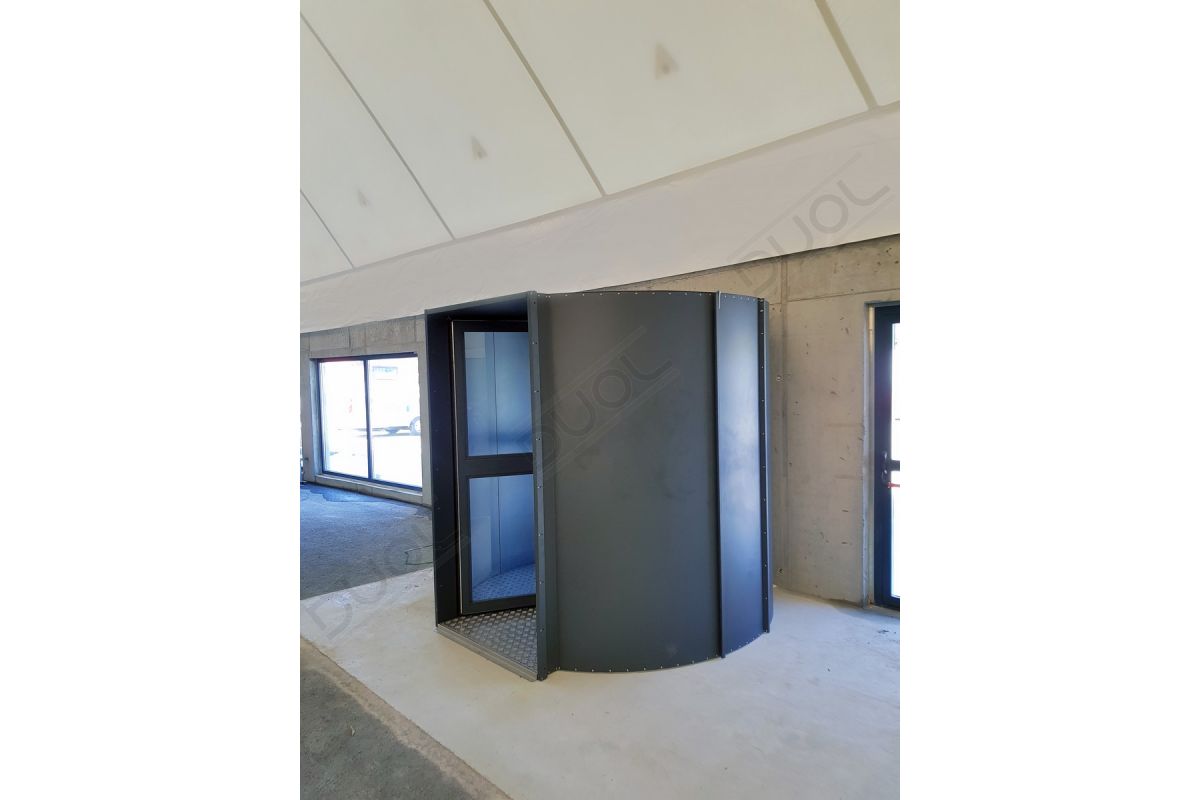

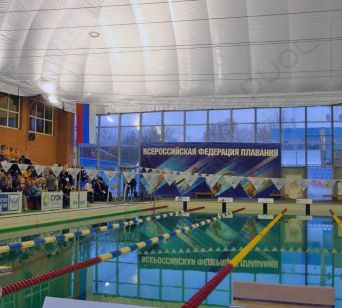

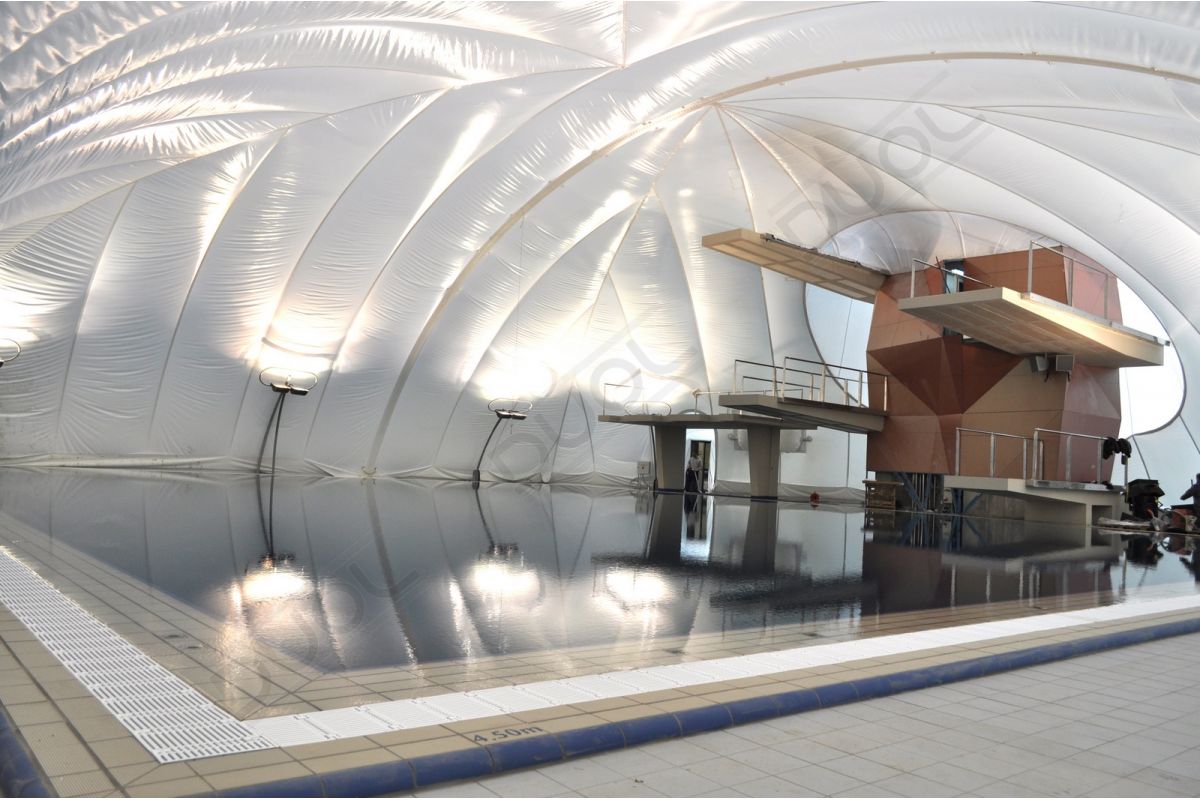

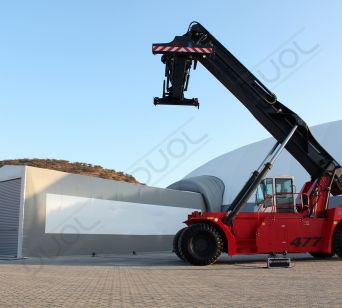

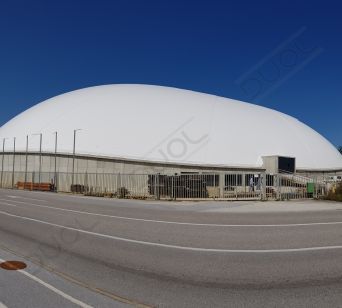

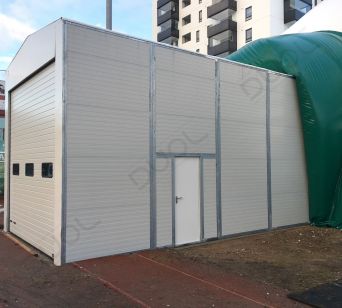

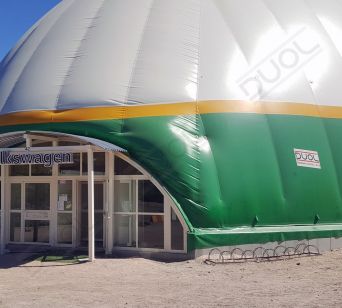

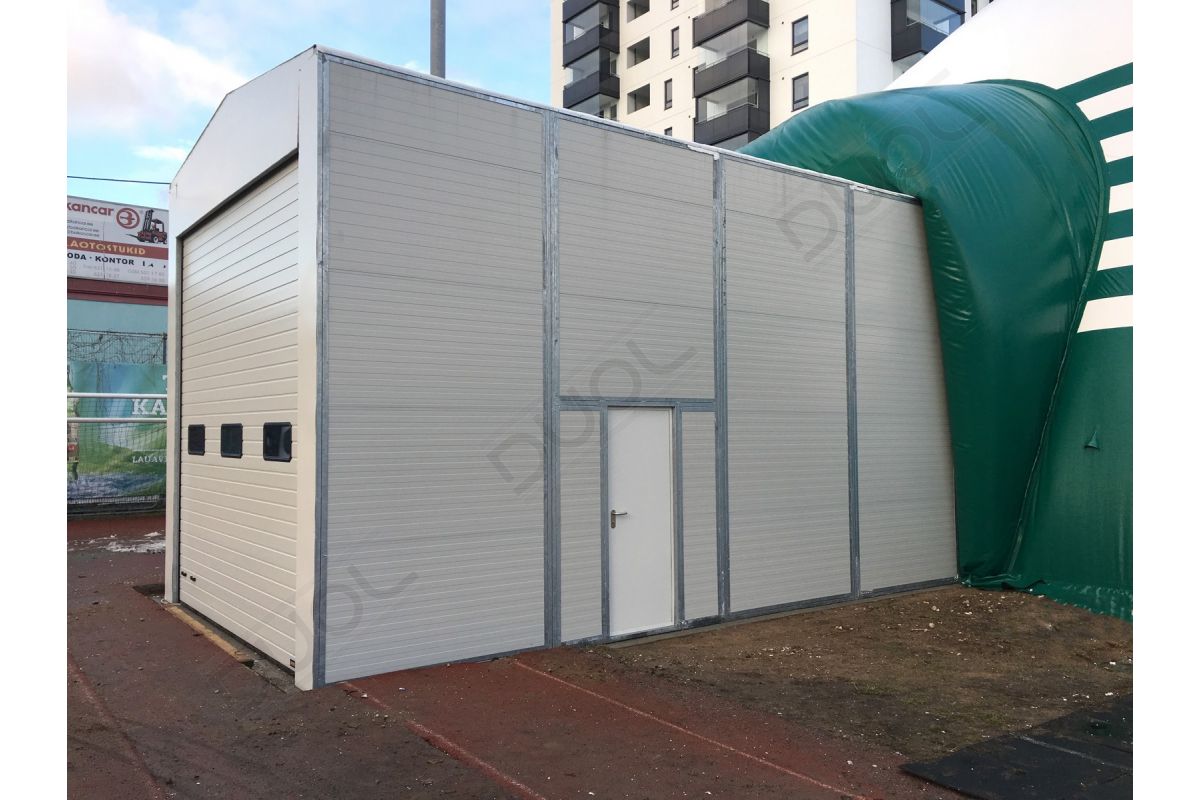

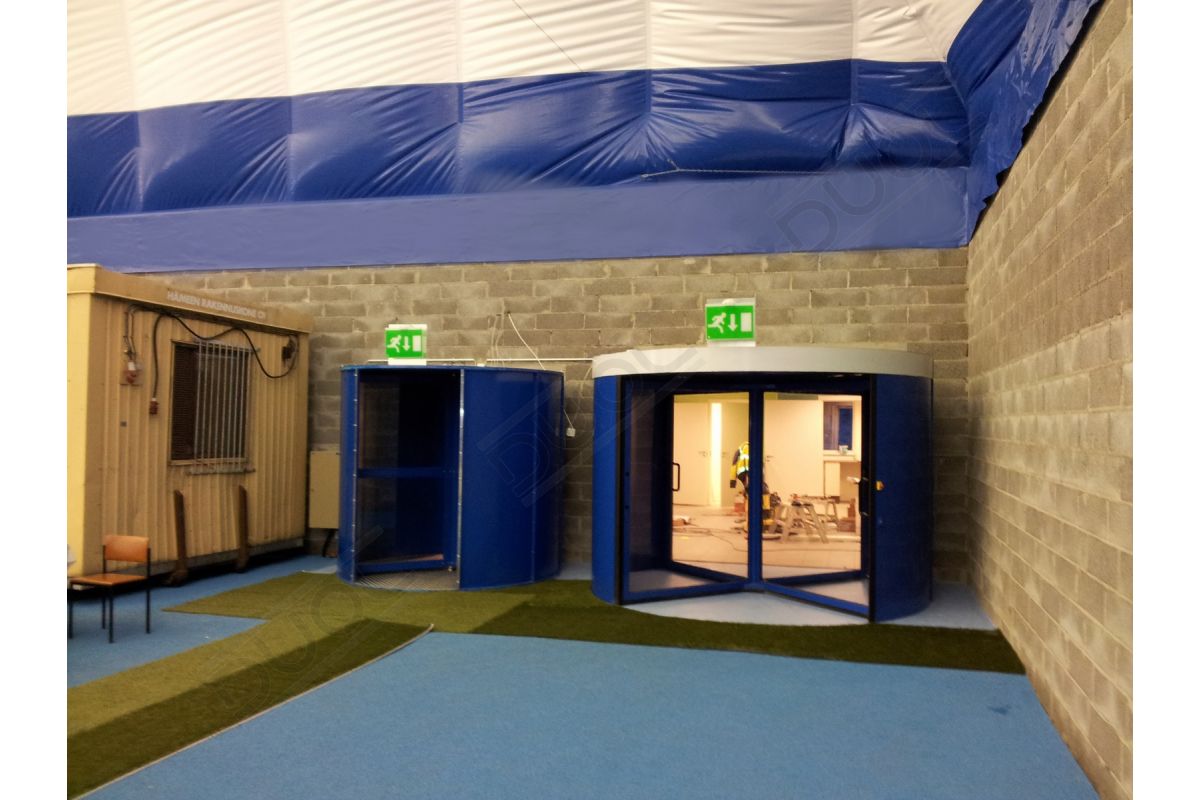

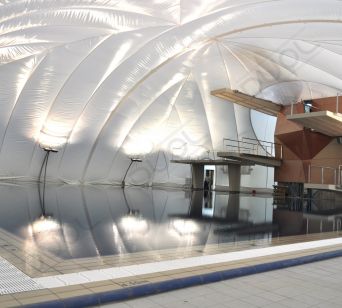

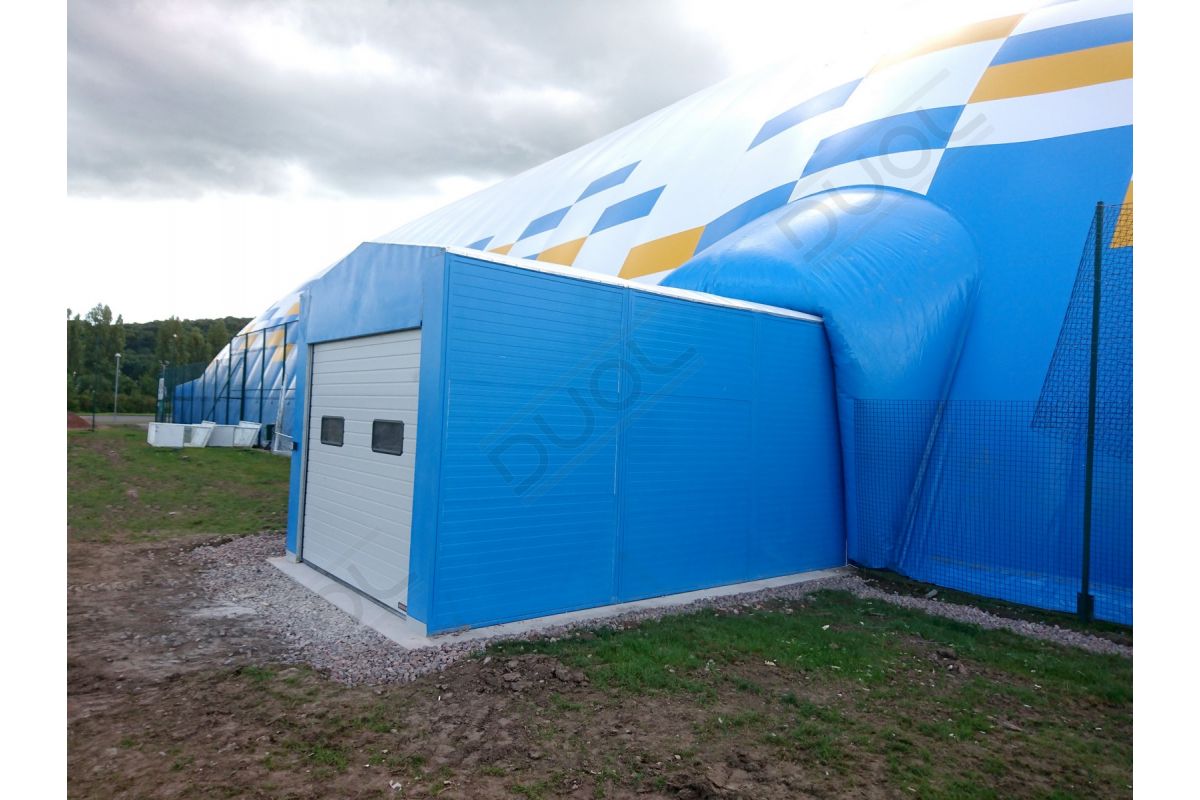

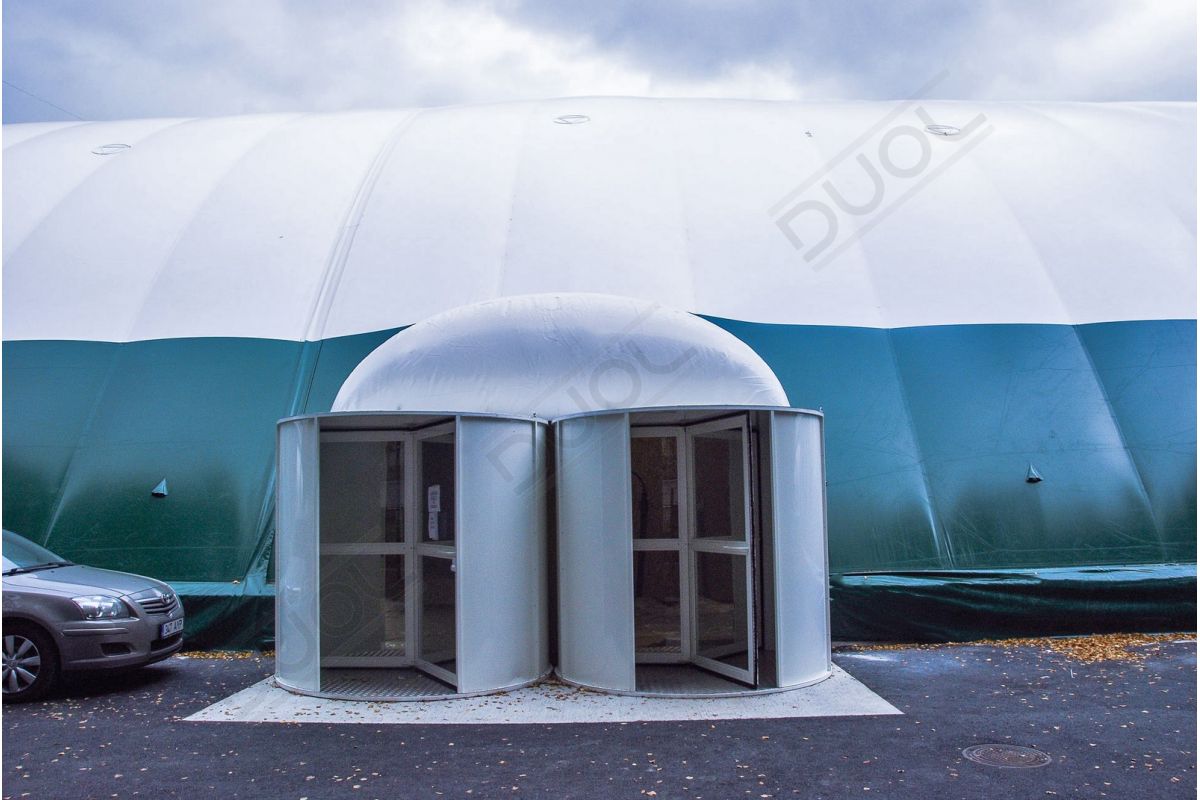

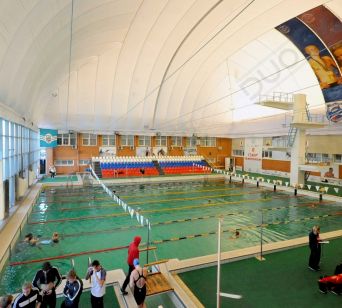

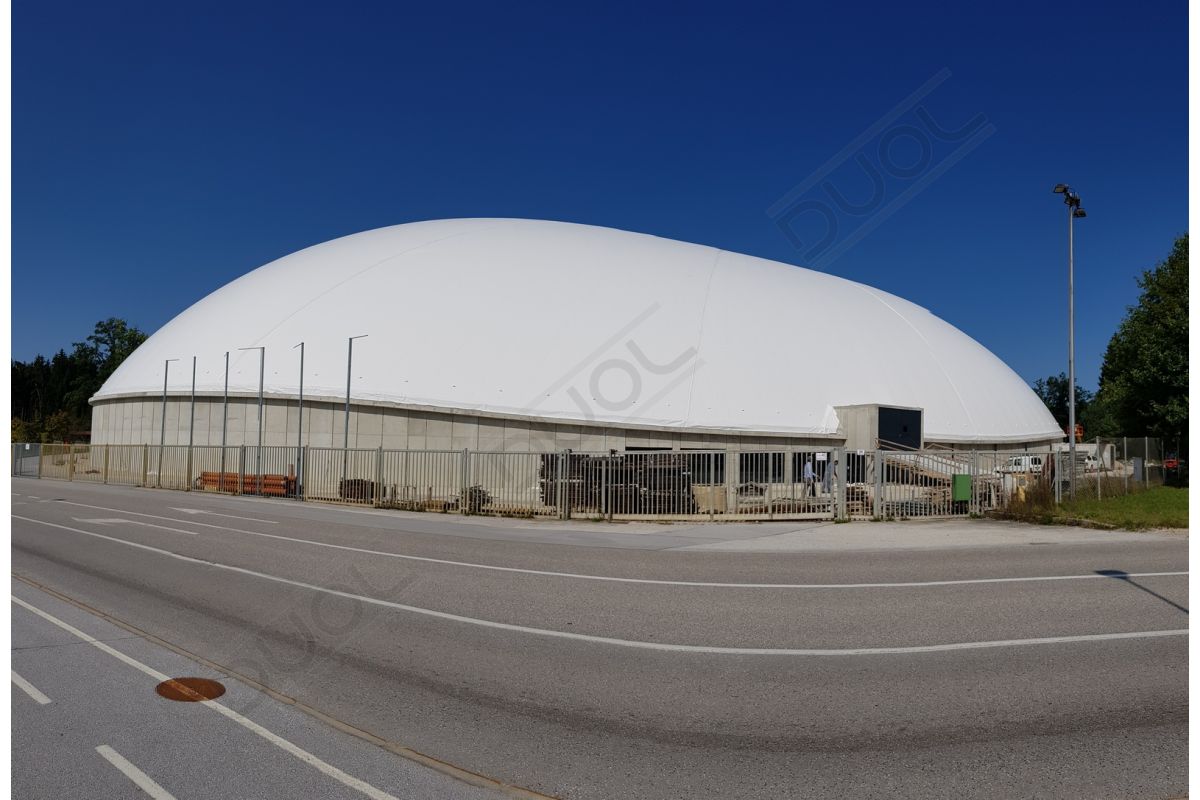

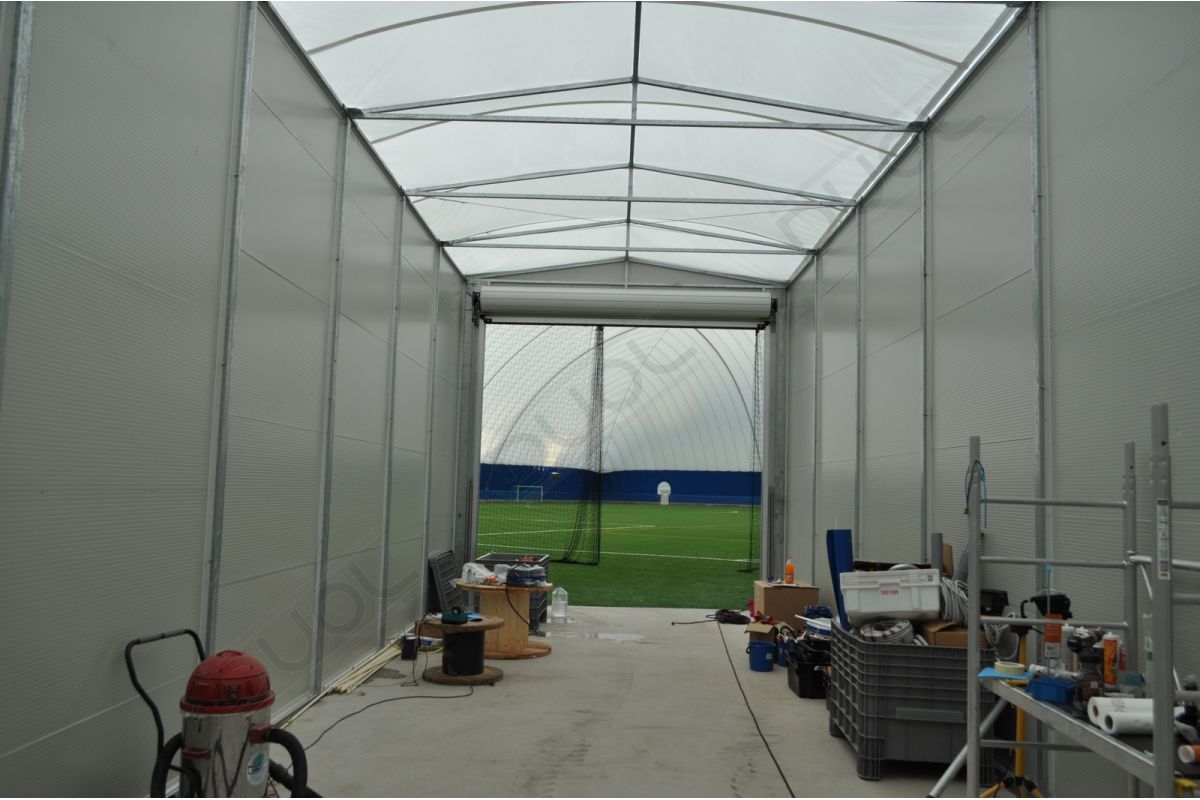

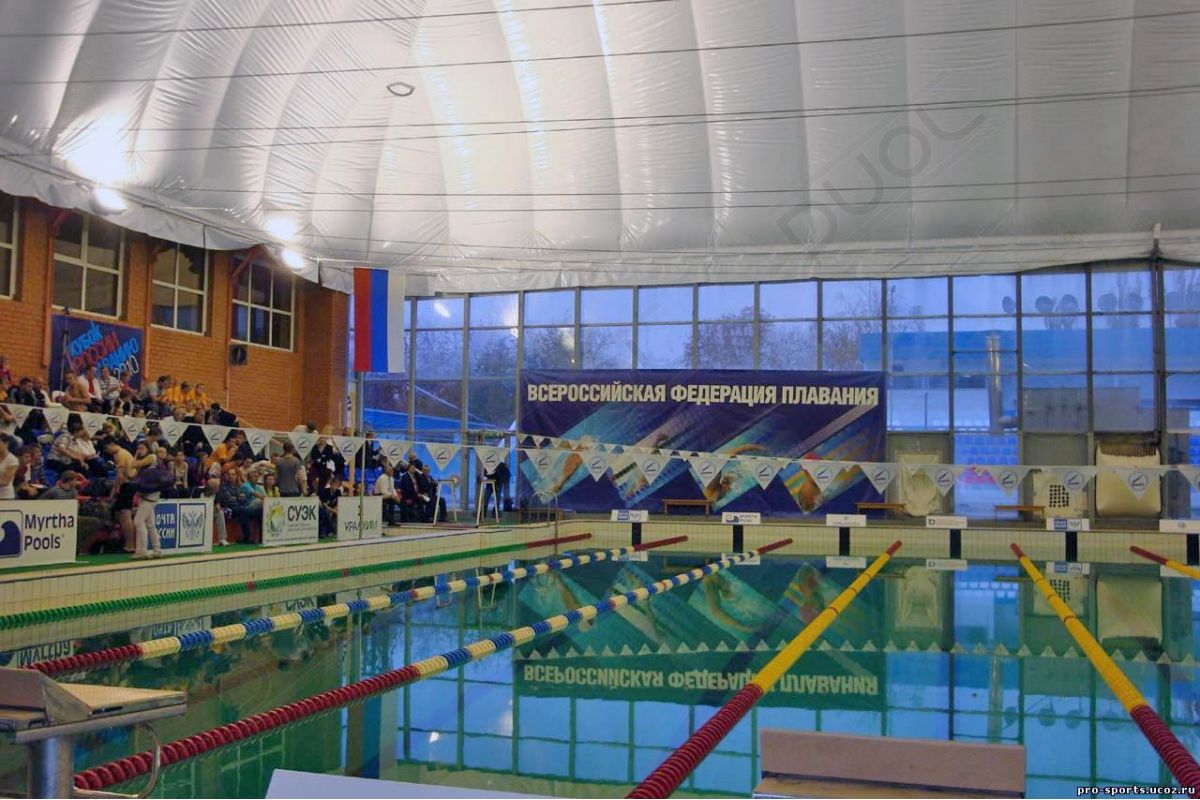

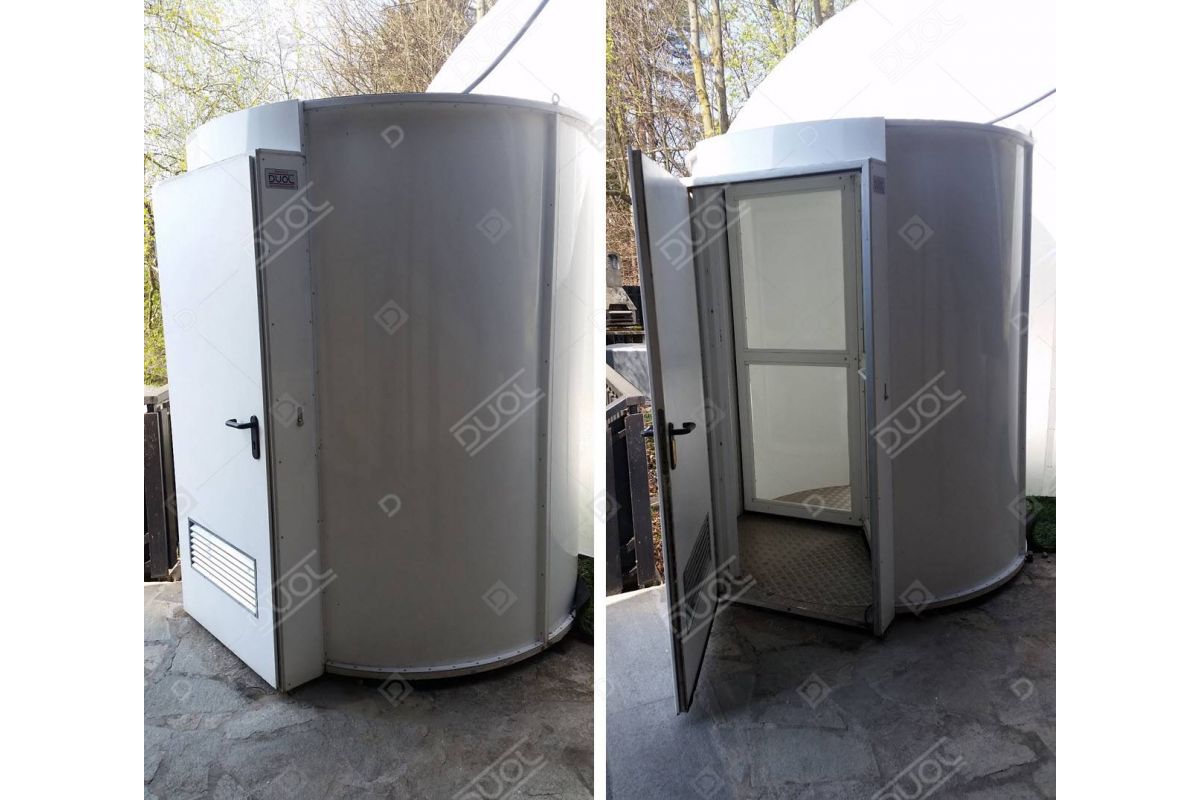

Air structures can be fixed to other buildings in a variety of ways. If the need arises for a larger facility, expanding or modifying an air structure is a simple procedure and can be accomplished with a minimal disruption. Air dome can be shortened, prolonged or relocated at any time, even doors, tunnels and connections to buildings can be added additionally.

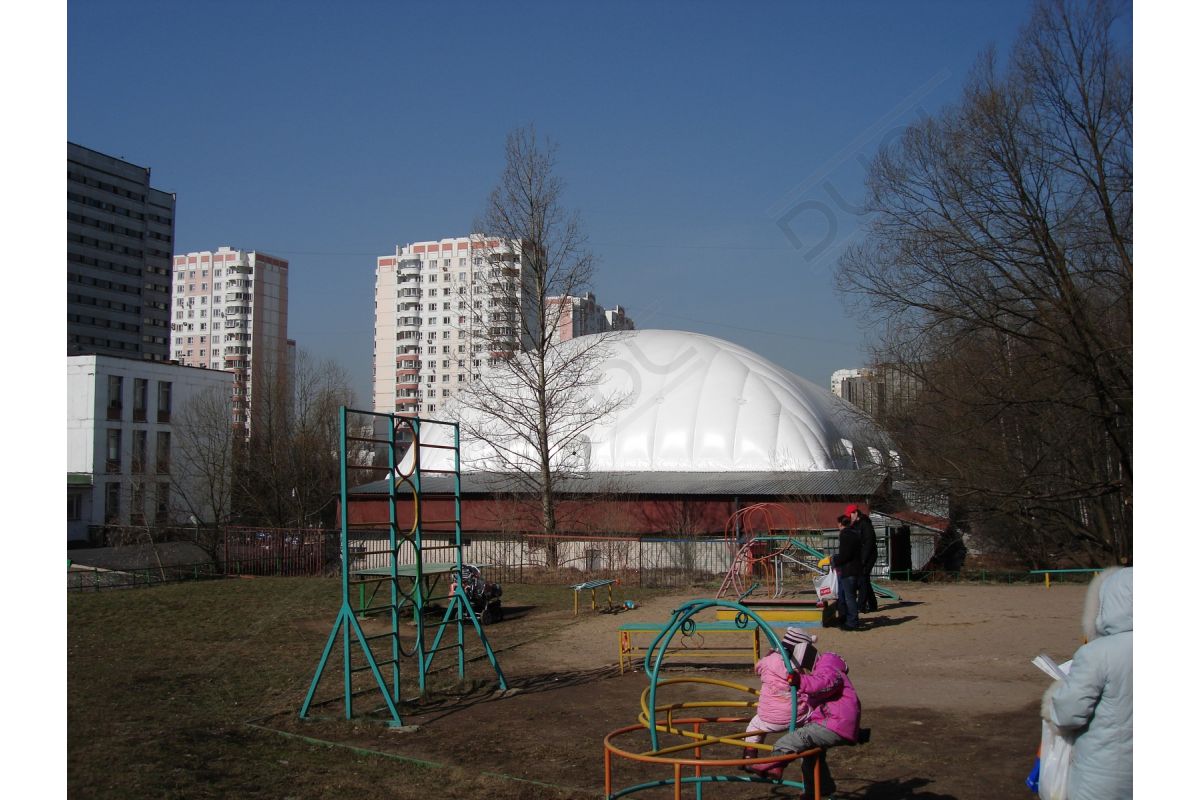

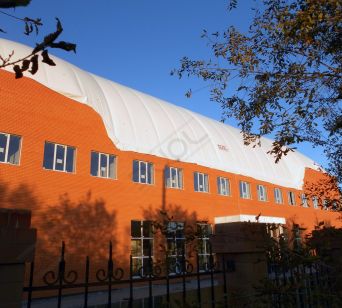

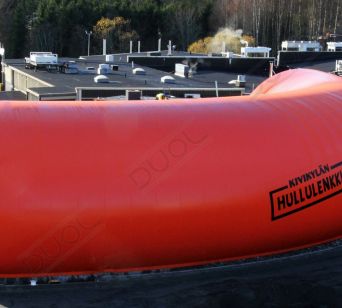

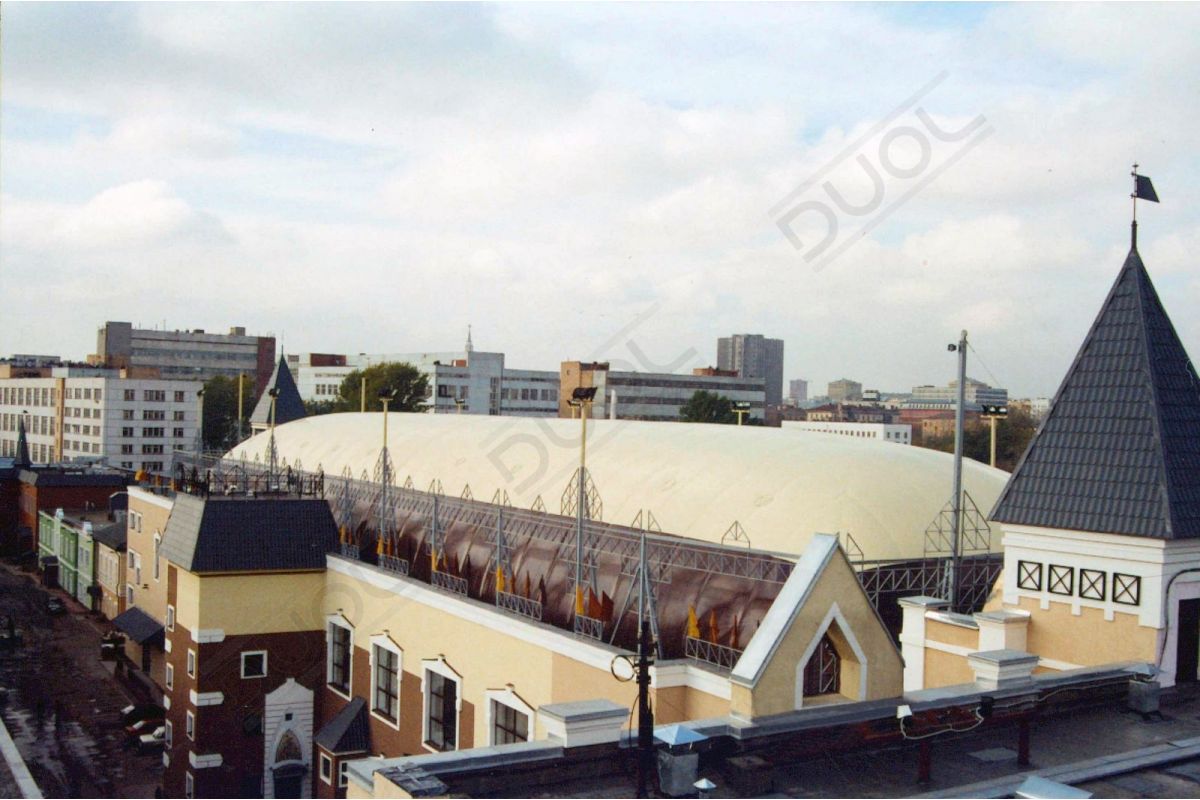

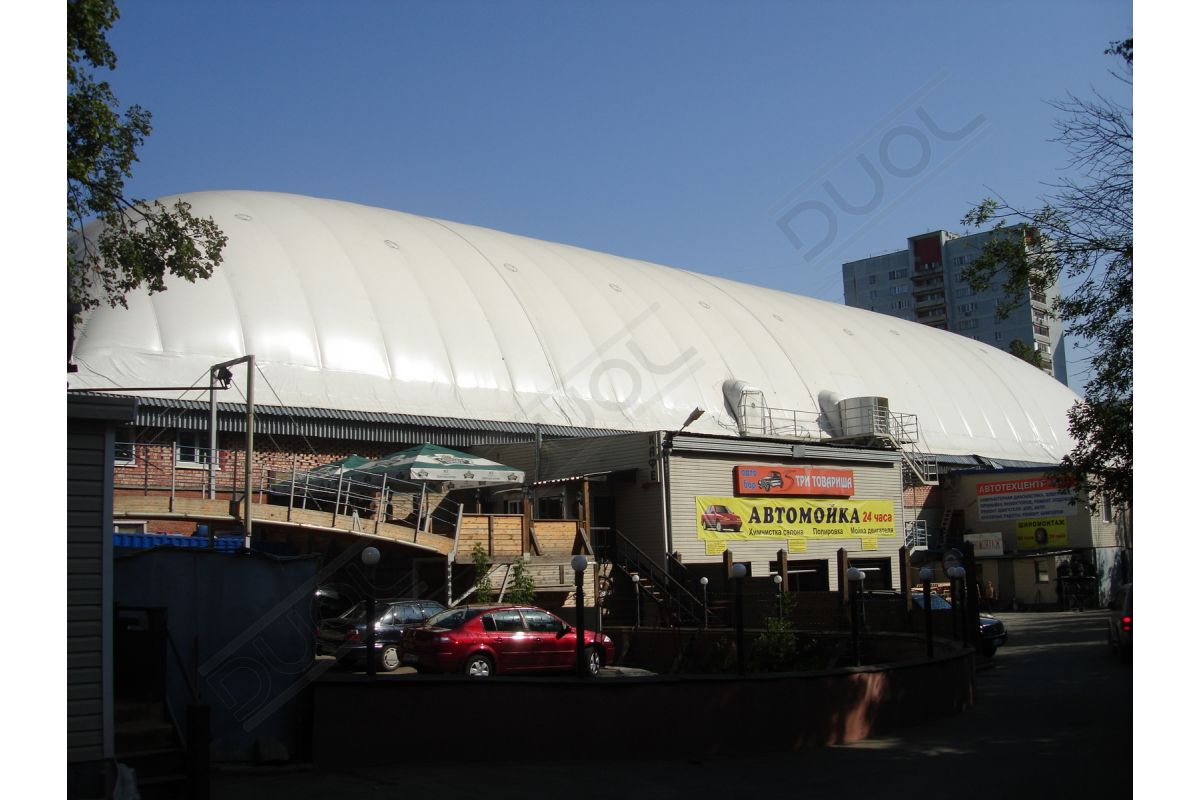

Air dome on the top of building
Air dome has a flexible design that can be installed even on top of existing buildings.

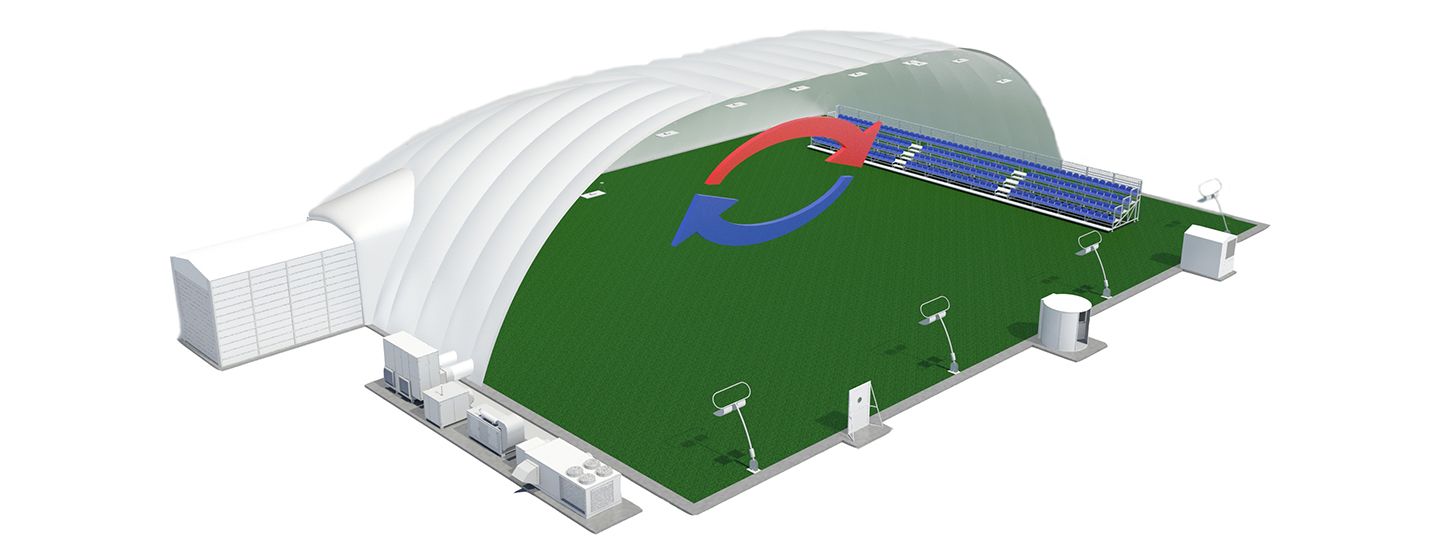

De-stratification system is mounted on the top of the dome and improves temperature distribution inside the dome – pushing the warmer air down from top to bottom. The result is lower energy consumption and a pleasant indoor environment.

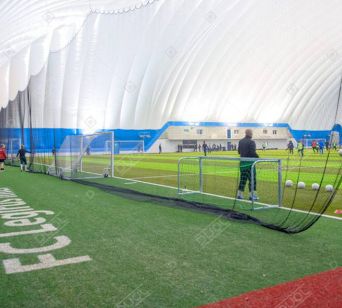

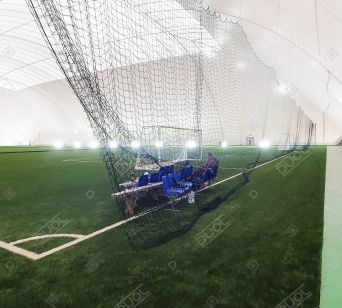

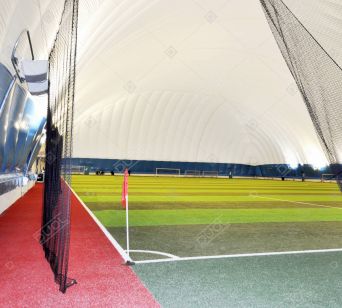

As a company involved in the sports industry for more than 25 years, we have been closely linked to trusted suppliers of air dome interiors and we can deliver for you completely equipped turn-key sports object, including stands, offices, locker rooms, toilets, sports flooring, sports equipment, dividing nets etc.
